Sony TRINITRON KV-M2140B - | Kv-M2140 K;M2141 K

| KV-M2140K/M2141K
RM-694

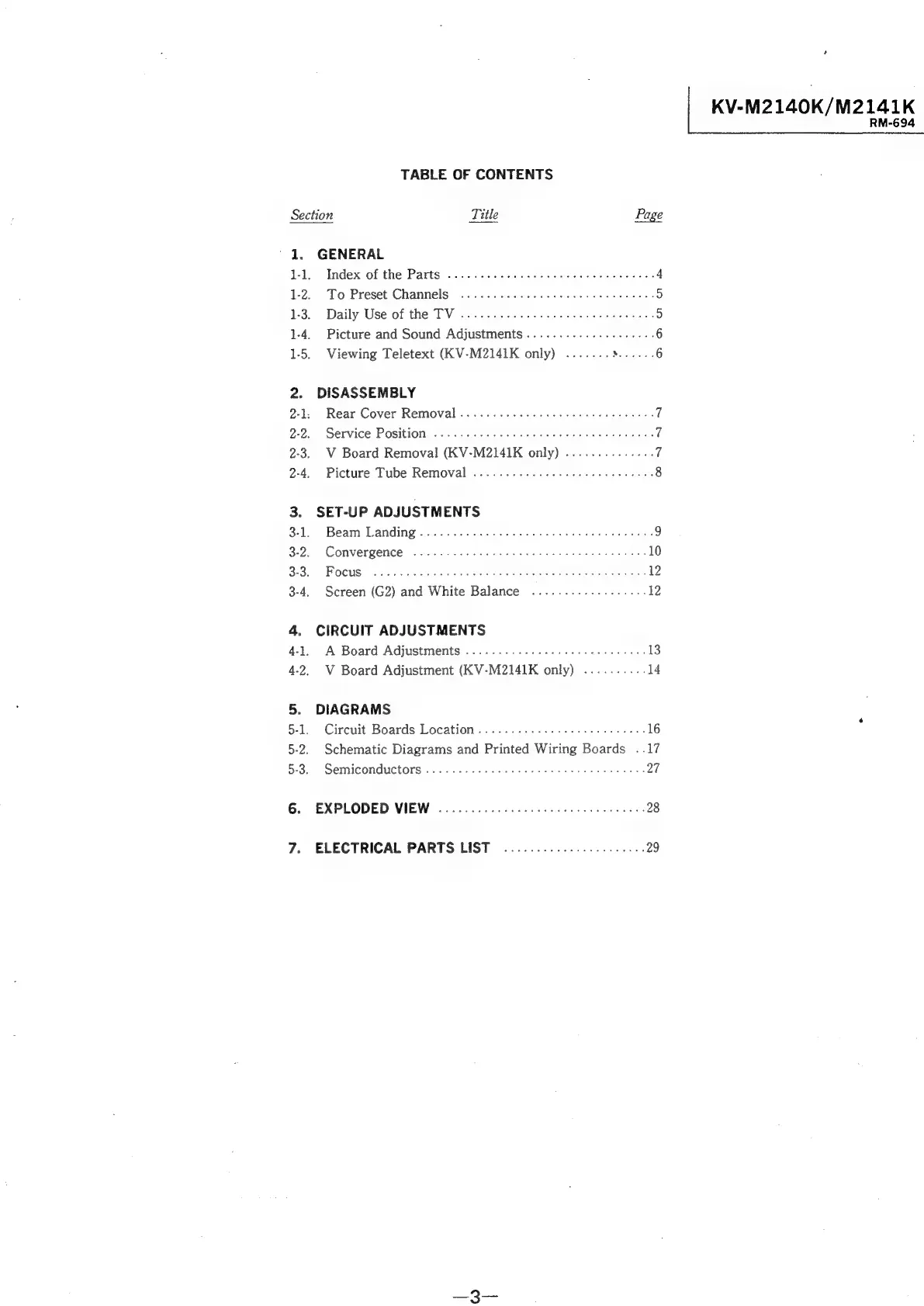

TABLE OF CONTENTS
Section Title Page
1. GENERAL
Yel. Index‘of the Parts* oxi aces) as accent entice ats 4
1-2. To Preset Channels ............ 0.0. cee ee ee eee eeee 5
1-3. Daily Use of the TV ........... 0.0 cece cece eee 5
1-4. Picture and Sound Adjustments .................... 6
1-5. Viewing Teletext (KV-M2141K only) .......%...... 6
2. DISASSEMBLY
2-1: Rear Cover Removal ............0ce cece cece eees 7
9:2 ‘Service Position: a.ivcisoeteih os dew ews tak dase 7
2-3. V Board Removal (KV-M2141K only) .........---.. 7
2-4. Picture Tube Removal ......... 2.0... cee eee eee 8
3. SET-UP ADJUSTMENTS
3-1; \Béam Landing: jos s305 sev aati eee ae ee 9
3-9 CONVET RENCE =e Sa. c0.t felon vee hee Meenas Zea 10
3-3... (FOGUS...c3209 $4 dean eda Tee ee aanes os Bae peeelguees 12
3-4. Screen (G2) and White Balance .................. 12
4, CIRCUIT ADJUSTMENTS
4-1. A Board Adjustments .............00 0.0. e eee eee 13
4-2. V Board Adjustment (KV-M2141K only) .......... 14
5. DIAGRAMS
5-1. Circuit Boards Location ..................-2.00000- 16 ‘
5-2. Schematic Diagrams and Printed Wiring Boards ..17
5-3. Semiconductors ........... ccc cee eee cee eee eens 27
6. EXPLODED VIEW ................0 00 e eee eee es 28
7. ELECTRICAL PARTS LIST ...................... 29
