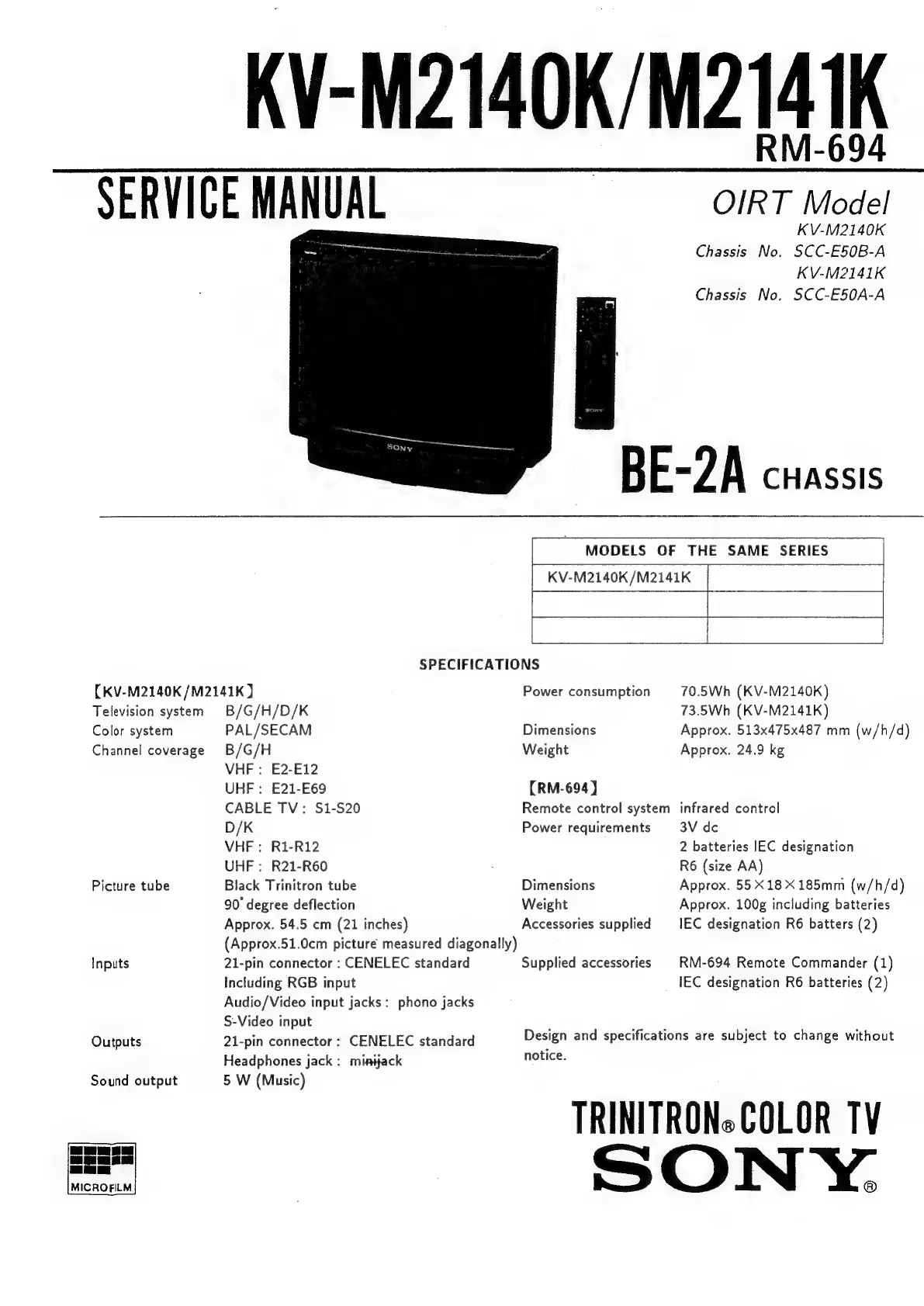

SERVICE MANUAL
KV-M2140K/M2141K
won
RM-694
OIRT Model
KV-M2140K
Chassis No. SCC-E50B-A
KV-M2141K
Chassis No. SCC-E50A-A
BE-2A CHASSIS
MODELS OF THE SAME SERIES
KV-M2140K/M2141K |
SPECIFICATIONS
(KV-M2140K /M2141K }
Television system
Color system
Channel coverage
Picture tube
Inputs
Outputs
Sound output
MICROFILM
B/G/H/D/K
PAL/SECAM
B/G/H
VHF : E2-E12
UHF : E21-E69
CABLE TV: S1-S20
D/K
VHF: R1-R12
UHF : R21-R60
Black Trinitron tube
90° degree deflection
Approx. 54.5 cm (21 inches)
(Approx.51.0cm picture measured diagonally)
21-pin connector : CENELEC standard
Including RGB input
Audio/Video input jacks: phono jacks
S-Video input
21-pin connector : CENELEC standard
Headphones jack : misijack
5 W (Music)
Power consumption
Dimensions
Weight
(RM-694 ]
Remote control system
Power requirements
Dimensions
Weight
Accessories supplied
Supplied accessories
70.5Wh (KV-M2140K)
73.5Wh (KV-M2141K)
Approx. 513x475x487 mm (w/h/d)
Approx. 24.9 kg
infrared control
3V de
2 batteries IEC designation
R6 (size AA)
Approx. 55X18 185mm (w/h/d)
Approx. 100g including batteries
IEC designation R6 batters (2)
RM-694 Remote Commander (1)
IEC designation R6 batteries (2)
Design and specifications are subject to change without
notice.
