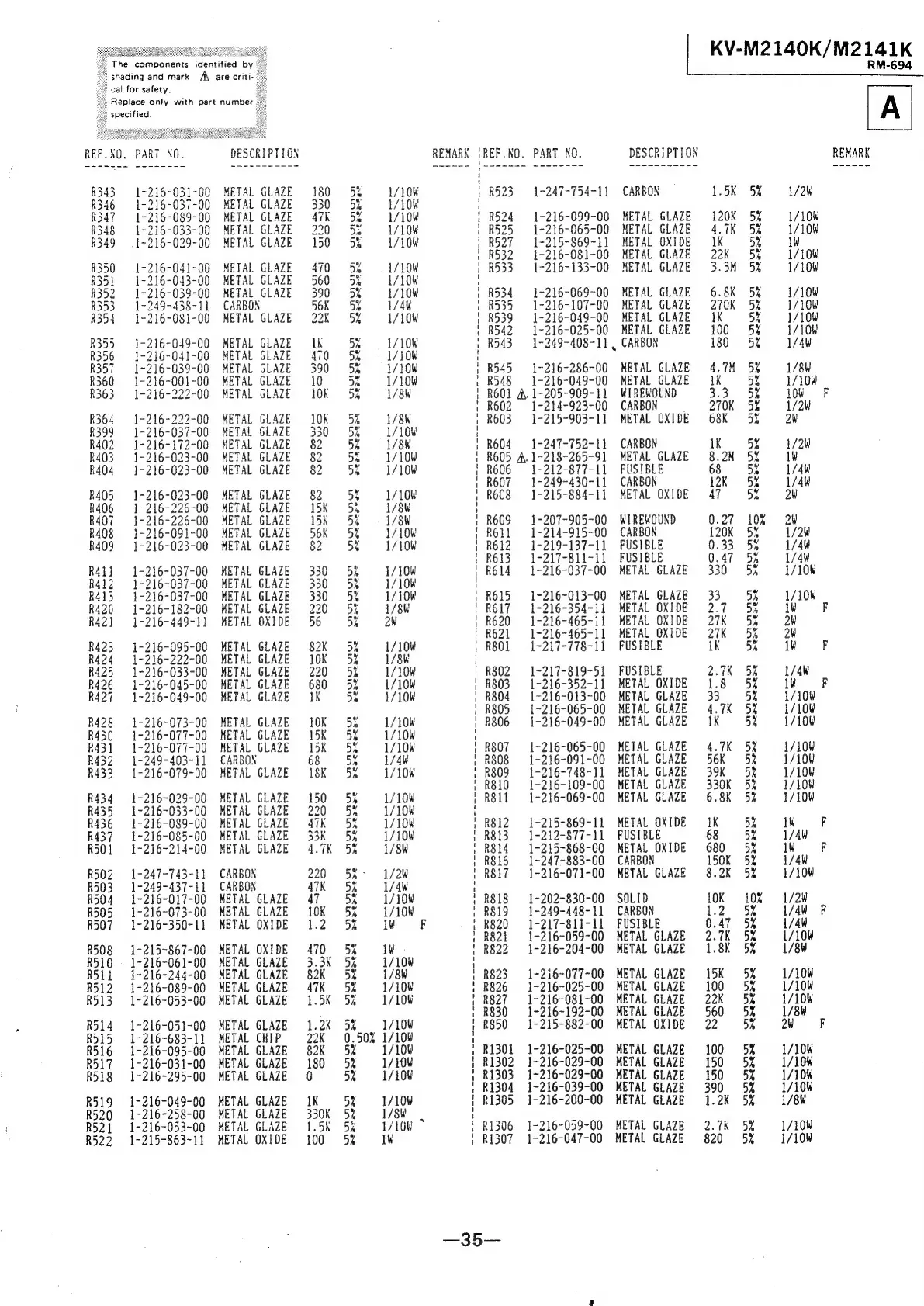

Sony TRINITRON KV-M2140B - Page 45

RM-694
KV-M2140K/M2141K
Pp ry
ms shading and mark A are criti-
/= cal for safety.
S Replace only with part number
| specified.
REF.AO. PART AO. DESCRIPTION REMARK iREF. NO. PART XO. DESCRIPTION REMARK
R343. 1-216-031-G0 METAL GLAZE 180 5% 1/106 R523. 1-247-754-11 CARBON 1.5K 5% 1/2W
R346 =1-216-037-00 METAL GLAZE 330 5% 1/108
R347 =1-216-089-00 METAL GLAZE 47k 5% 1/10¥ R524 1-216-099-00 METAL GLAZE 120K 5% 1/10W
R348 = 1-216-033-00 METAL GLAZE 220 5% 1/104 R525 1-216-065-00 METAL GLAZE 4.7K 5% 1/108
R349 = 1-216-029-00 METAL GLAZE 150 5% 1/10¥ | R527 ~=-1-215-S69-11 METAL OXIDE 1K 5% 1W
R532 1-216-081-00 METAL GLAZE 22K 5% 1/10W
R533 -1-216-133-00 METAL GLAZE 3.3M 5% 1/10W
1-2]
1-216-258-00 METAL GLAZE 330K 5% 1/Sk
R521 1-216-053-00 METAL GLAZE if 5K OO’ 1/108
1-215-863-11 METAL OXIDE 100 5% IW
+ R1306 1-216-059-00 METAL GLAZE 2.7K 5% 1/108
R1307 1-216-047-00 METAL GLAZE 820 5% 1/10W
0 ;
0
0
0
0 |
R350 1-216-041-00 METAL GLAZE 470 5% 1/1OW
R351 1-216-043-00 METAL GLAZE 560 5% — 1/10W
R352 1-216-039-00 METAL GLAZE 390 5% 1/10W ' R534 1-216-069-00 METAL GLAZE 6.8K 5% — 1/10W
R353 1-249-438-11 CARBON BER YOLK | R535 1-216-107-00 METAL GLAZE 270K 5% 1/10W
R354 1-216-081-00 METAL GLAZE 22k 5% 1/10W ' 2539 1-216-049-00 METAL GLAZE 1K 5% — 1/10W
' R542 1-216-025-00 METAL GLAZE 100 5% 1/10W
R355 1-216-049-00 METAL GLAZE 1k 5% —1/10W | R543 1-249-408-11 , CARBON 180 5% 1/4W
R356 1-216-041-00 METAL GLAZE 470 52 — 1/10W
R357 1-216-039-00 METAL GLAZE 390 5% 1/10W | R545 1-216-286-00 METAL GLAZE 4.7 5% 1/8W
R360 1-216-001-00 ETAL GLAZE 10 5% 1/10W | R548 1-216-049-00 METAL GLAZE 1k 5% 1/10W
R363 1-216-222-00 METAL GLAZE 10K 52 —1/8W ' R601 A. 1-205-909-11 WIREMOUND 3.3 5% low F
| R602 1-214-923-00 CARBON | 270K 5% 1/2W
R364 1-216-222-00 METAL GLAZE 10K 5% —‘1/8W | R603 1-215-903-11 METAL OXIDE 68K 5% WU
R399 1-216-037-00 METAL GLAZE 330 5% — 1/10W
R402 1-216-172-00 ETAL GLAZE 82 52 1/8W | R604 1-247-752-11 CARBON 1K 5% 4/2u
R403. 1-216-023-00 METAL GLAZE 82 58 — 1/lOW | R605 A l-218-265-91 METAL GLAZE 8.2M 5% IW
R404 1-216-023-00 METAL GLAZE 82 52 1/10W ! R606 1-212-877-11 FUSIBLE 68 Bk L/4W
| R607 1-249-430-11 CARBON 2K 5% 1/4
R405 1-216-023-00 METAL GLAZE 82 5% 1/10W ' R608 1-215-884-11 METAL OXIDE 47 5% QW
R406 1-216-226-00 METAL GLAZE 15k 5% — 1/8W
R407 1-216-226-00 METAL GLAZE 15K 58 1/8W | R609 1-207-905-00 WIREWOUND 0.27 10% 2W
R408 3-216-091-00 METAL GLAZE SOK 5% — 1/10W i R611 1-214-915-00 CARBON 120K 5%. 1/2W
R409 1-216-023-00 METAL GLAZE 82 5% 1/10W | R612 1-219-137-11 FUSIBLE 0.33 5% 1/4W
| R613 1-217-811-11 FUSIBLE 0.47 5% 1/4W
R411 1-216-037-00 METAL GLAZE 330 5% 1/10W ' R614 ]-216-037-00 METAL GLAZE 330 5% 1/10W
R412 1-216-037-00 METAL GLAZE 330 5% — 1/10W
R413. 1-216-037-00 HETAL GLAZE 330 5% — 1/10W | R615 1-216-013-00 METAL GLAZE 33 5% 1/100
R420 1-216-182-00 ETAL GLAZE 220 5% 1/8W ' R617 1-216-354-11 METAL OXIDE 2.7 5% IW F
R421 1-216-449-11 METAL OXIDE 56 5% © 2W | R620 1-216-465-11 METAL OXIDE 27K 5% 2W
1 R621 1-216-465-11 METAL OXIDE 27K 5% NW
R423 1-216-095-00 ETAL GLAZE $2K 5% 1/10W ' R801 1-217-778-11 FUSIBLE ik 5%OdWSF
R424 1-216-222-00 METAL GLAZE 10K 5% 1/80
R425 1-216-033-00 METAL GLAZE 220 5% 1/10W | R802 1-217-819-51 FUSIBLE 2.7K 5% 1/4W
R426 1-216-045-00 METAL GLAZE 680 5% 1/108 | R803 1-216-352-11 METAL OXIDE 1.8 5% WF
R427 1-216-049-00 METAL GLAZE Ik 5% 1/104 ' R804 1-216-013-00 METAL GLAZE 33 5% 1/10W
' R805 1-216-065-00 METAL GLAZE 4.7K 5% 1/10W
R428 1-216-073-00 METAL GLAZE 10K SE 1/108 ' pa06 1-216-049-00 METAL GLAZE 1k 5% 1/10W
R430 1-216-O77-00 METAL GLAZE 15K 5% — 1/10M
R43] 1-216-077-00 METAL GLAZE 15k 5% — 1/10W ' R807 1-216-065-00 METAL GLAZE 4.7K 5% 1/10W
R432 1-249-403-11 CARBON 68 5% 1 /4W ' R808 1-216-091-00 METAL GLAZE 56K 5% 1/10W
R433 1-216-079-00 METAL GLAZE 18K 5% 1/10W ' R809 1-216-748-11 METAL GLAZE 39K 5% —1/10W
' R810 1-216-109-00 METAL GLAZE 330K 5% 1/10W
R434 1-216-029-00 METAL GLAZE 150 5% 1/10W | R811 1-216-069-00 METAL GLAZE 6.8K 5% 1/10W
R435 1-216-033-00 METAL GLAZE 220 5% 1/10W
R436 1-216-089-00 METAL GLAZE 47k 5% —-1/10W ' R812 1-215-869-11 METAL OXIDE 1K SY IW F
R437 1-216-085-00 METAL GLAZE 33K 5% —1/10W ' R813 1-212-877-11 FUSIBLE 68 5X 1/4W
R501 1-216-214-00 METAL GLAZE 4.7K 5% 1/8W | R814 1-215-868-00 METAL OXIDE 680 5% iW F
| R816 1-247-883-00 CARBON 150K 5% 1/4W
R502 1-247-743-11 CARBON 220 5%- 1/2W ' R817 1-216-071-00 METAL GLAZE 8.2K 5% 1/10W
R503 1-249-437-11 CARBON 47k 5% 1 /4W
R504 1-216-017-00 METAL GLAZE 47 5% 1/10W ' R818 1-202-830-00 SOLID 10K 10% 1/2
R505 1-216-073-00 METAL GLAZE 10K 5% — 1/10W | R819 1-249-448-11 CARBON 1.2 5% 1/4W F
R507 -1-216-350-11 METAL OXIDE 1.2 5% iW F ' R820 1-217-811-11 FUSIBLE 0.47 5% 9 1/4W
' R821 1-216-059-00 METAL GLAZE 2.7K 5% 1/10W
R508 1-215-867-00 METAL OXIDE 470 5% W | p822 1-216-204-00 METAL GLAZE 1.8K 5% 1/8W
R510 - 1-216-061-00 METAL GLAZE 3.3K 5% 1/10W
R511 1-216-244-00 METAL GLAZE 82k 5% © 1/8W | R823 1-216-077-00 METAL GLAZE 15K 5% 1/10W
R512 1-216-089-00 METAL GLAZE 47K 5% — 1/10W ' R826 1-216-025-00 METAL GLAZE 100 5% 1/10W
R513 1-216-053-00 METAL GLAZE 1.5K 5% 1/10W ' R897 1-216-081-00 METAL GLAZE 22K 5% 1/10W
| R830 1-216-192-00 METAL GLAZE 560 5% 1/8W
R514 1-216-051-00 METAL GLAZE 1.2K 5% 1/10W | R850 1-215-882-00 METAL OXIDE 22 5% WF
R515 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
R516 1-216-095-00 METAL GLAZE 82k 5% 1/10W ' R1301 1-216-025-00 METAL GLAZE 100 5% 1/10W
R517 1-216-031-00 METAL GLAZE 180 5% 1/10W | 21302 1-216-029-00 METAL GLAZE 150 5% 1/10W
R518 1-216-295-00 METAL GLAZE 0 5% 1/10W | 21303 1-216-029-00 METAL GLAZE 150 5% 1/10W
! 21304 1-216-039-00 METAL GLAZE 390 5% 1/10W
R519 6-049-00 METAL GLAZE 1K 5% — 1/10W | R1305 1-216-200-00 METAL GLAZE 1.2K 5% 1/8
