Sony TRINITRON KV-M2140B - 2-3. Picture Tube Removal

| KV-M2140B |
| RM-694
|

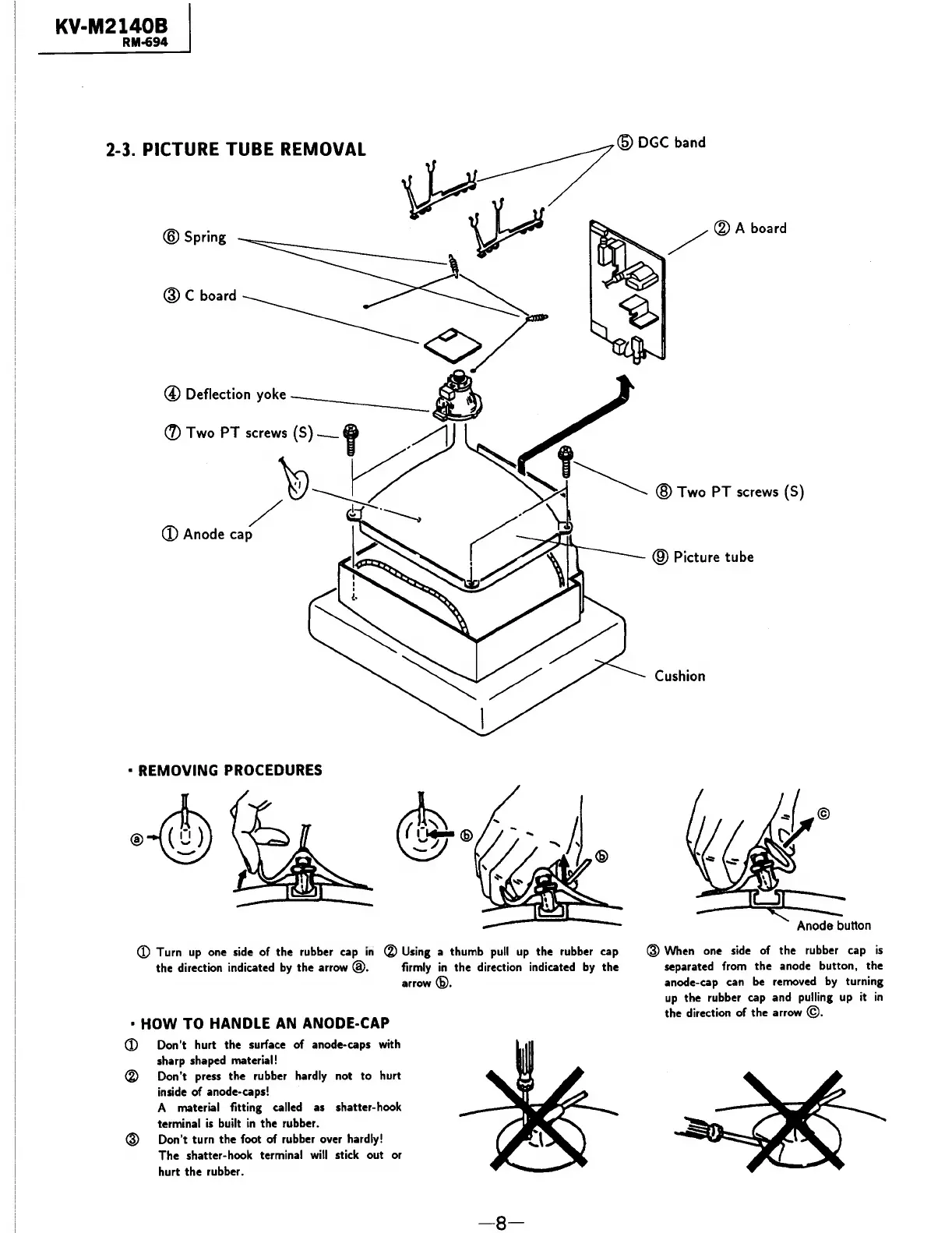

2-3.
TUBE
REMOVAL
®
DGC
band
© Spring
@
C
board
ae
@ Deflection yoke —___ §
@ Two PT screws (S) — g 4 |
yi
<
Two
PT
screws
(S)
4 aos 3
@ Anode cap
Cushion
* REMOVING PROCEDURES
Om
@®) Picture tube
Anode button
@ Turn up one side of the rubber cap in @ Using a thumb pull up the rubber cap @ When one side of the rubber cap is
the direction indicated by the arrow @. firmly in the direction indicated by the separated from the anode button, the
arrow (6). anode-cap can be removed by turning
up the rubber cap and pulling up it in
the direction of the arrow ©.
* HOW TO HANDLE AN ANODE-CAP
@ Don't hurt the surface of anode-caps with
sharp shaped material!
@ Don’t press the rubber hardly not to hurt
inside of anode-caps!
A_ material fitting called as shatter-hook
terminal is built in the rubber.
@ Don’t turn the foot of rubber over hardly!
The shatter-hook terminal will stick out or
hurt the rubber.
