1-3
PVM-14L1/14L1MDE/20L1
SSM-14L1/20L1

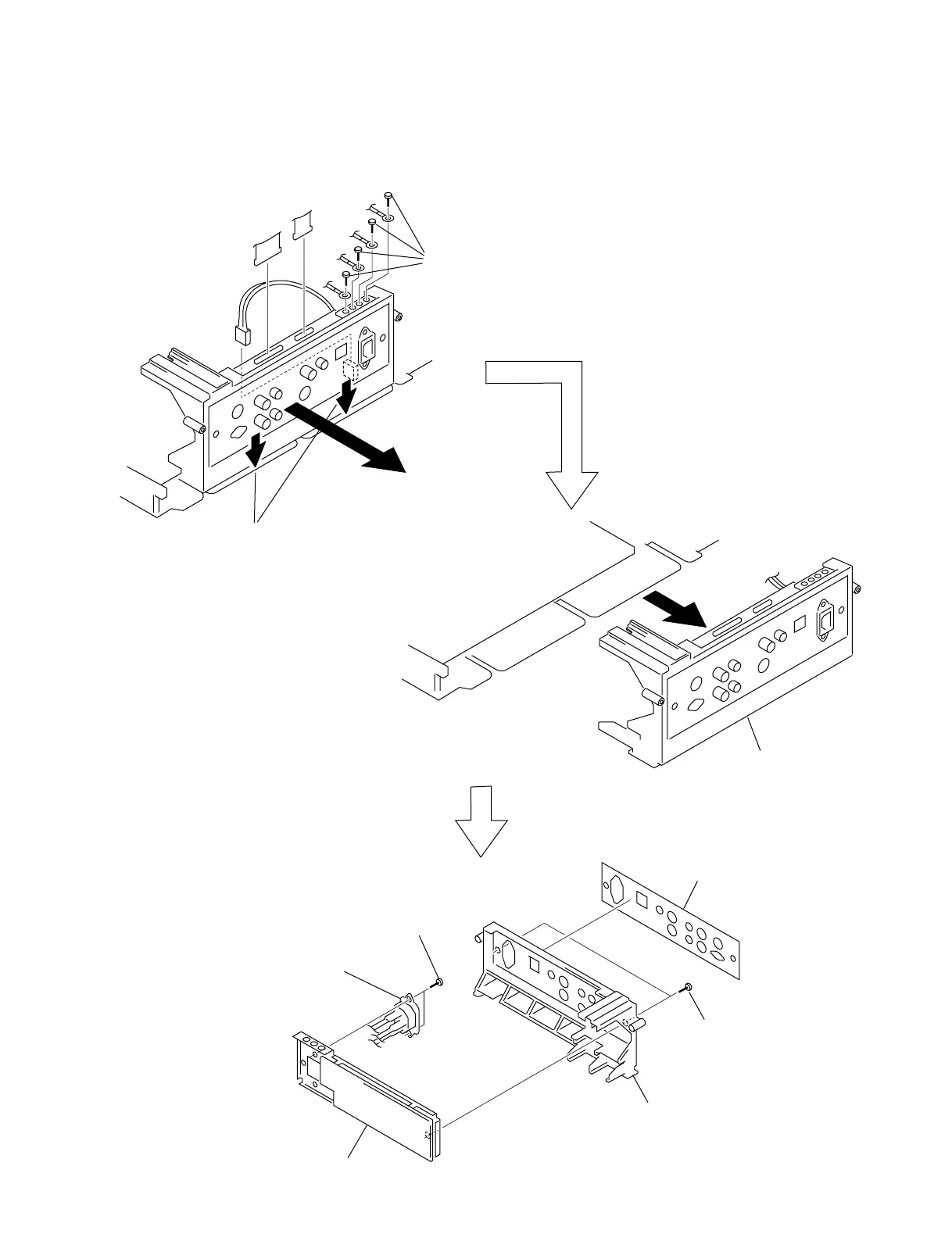

1-3-2. Q Block Assembly and Q Board (14 inch)
. Remove the cabinet and rear panel. (Refer to 1-3-1.)
A
A
B
CN204
CN201
CN601
1
Four screws
(+PS 4 x 8)
3
Q block assembly
4
Connector label
5 Two screws
(+PSW 3 x 10)
6
Connector panel
7 Two screws
(+PSW 3 x 10)
8 AC inlet
9 Q board
Push the two areas in the bottom of beznet in the direction of arrow A,
and pull the Q block assembly in the direction of the arrow B.
