13 (GB)

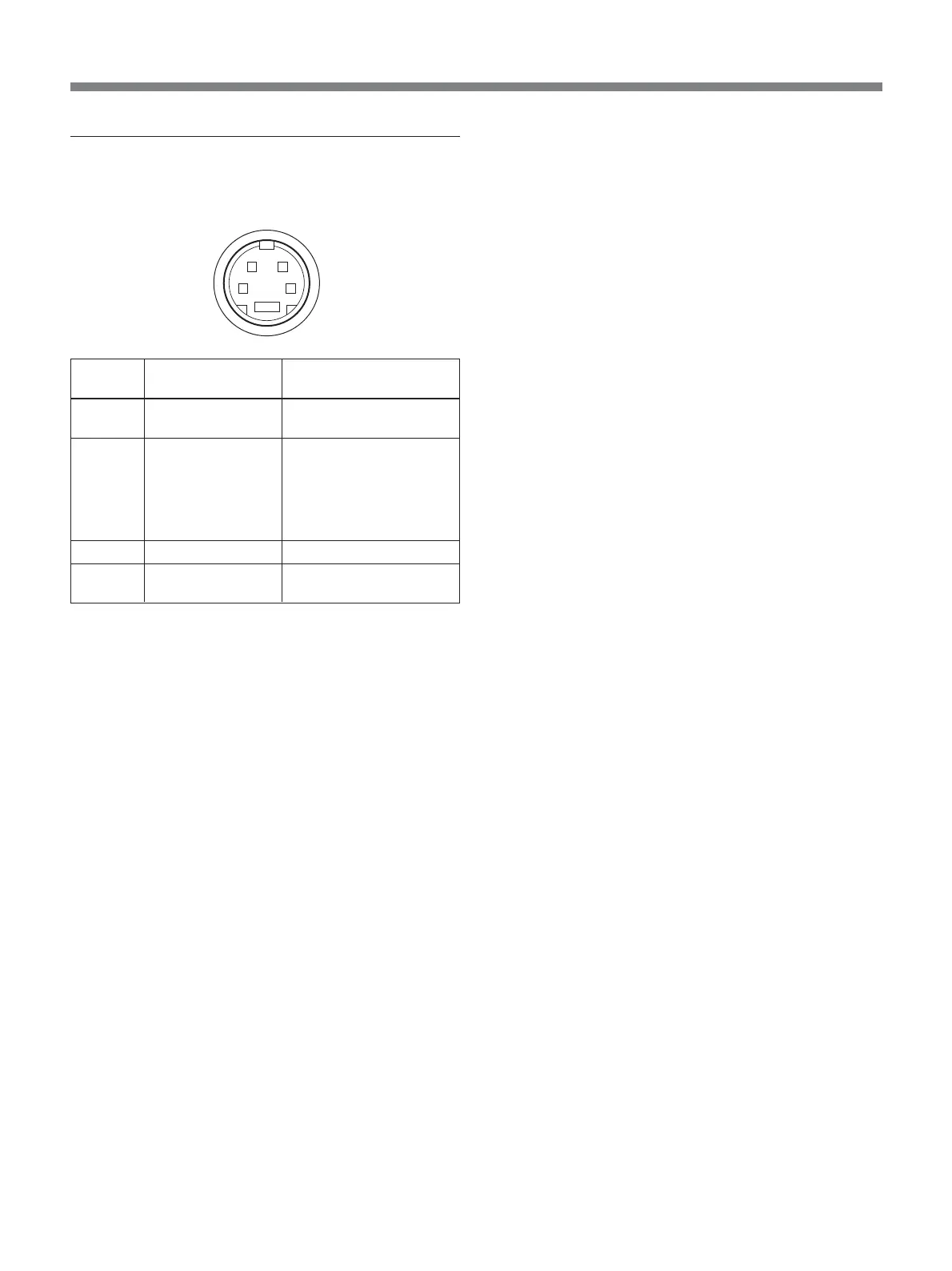

Pin assignment
Y/C IN connector (4-pin mini-DIN)
Pin
number
1
2
3
4
Signal
Y-input
CHROMA-input
Subcarrier-input
GND for Y-input
GND for CHROMA-
input
Description
1 Vp-p, sync negative, 75
ohms
286m Vp-p (NTSC),
300m Vp-p (PAL),
burst
Delay time between Y and
C: within 0 ± 100 nsec.,
75 ohms
GND
GND
21
34
*
Classification of equipment
– Evaluated to EN60601-1, EN60601-1-2, 93/42/EEC
–EQUIPMENT not suitable for use in the presence of
a FLAMMABLE ANAESTHETIC MIXTURE
WITH AIR or WITH OXYGEN OR NITROUS
OXIDE
– Equipment energized from an external electrical
power source Class I Equipment
–Degree of protection against electric shock
No applied part
–Mode of operation Continuous operation
