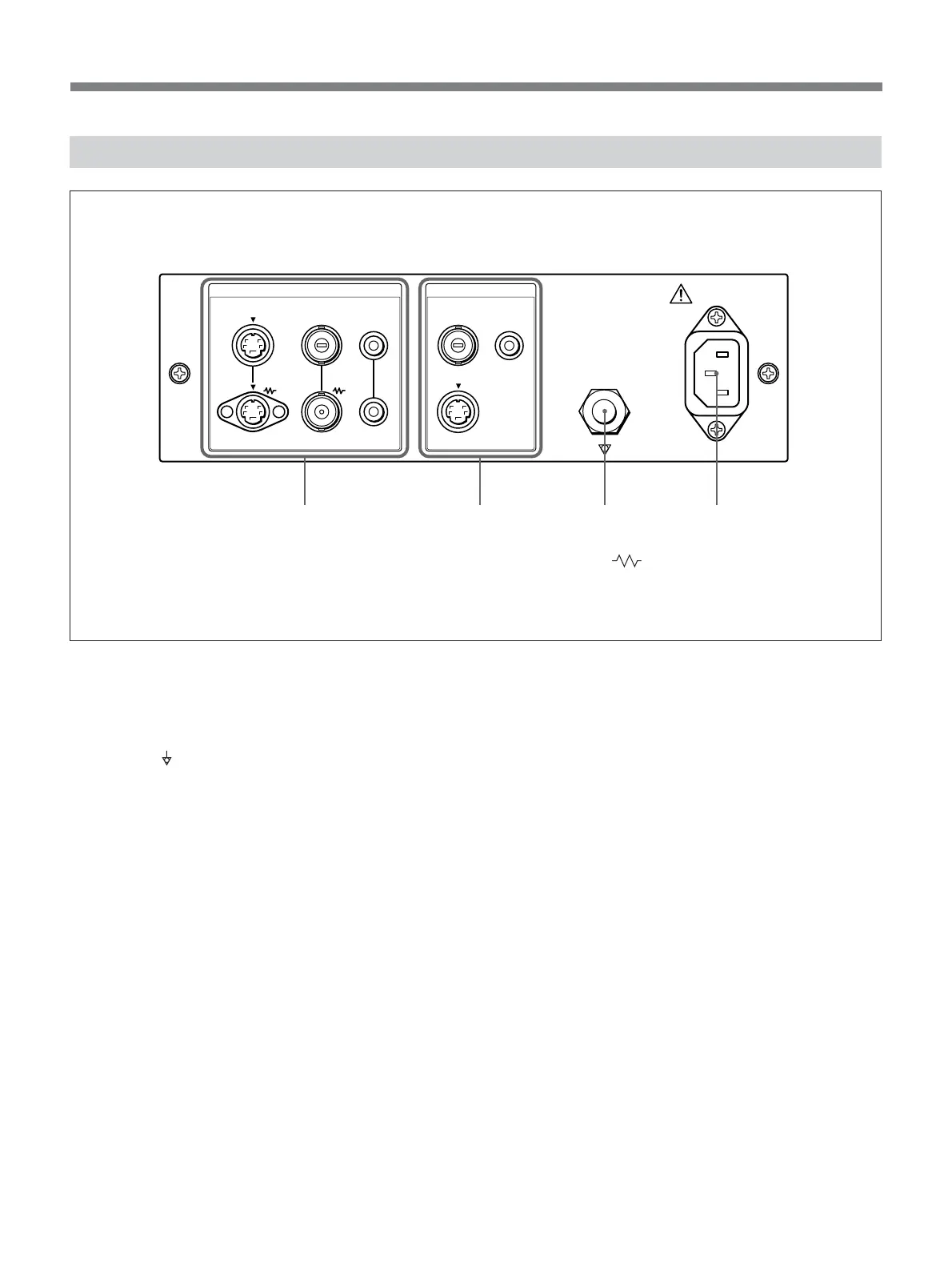

Rear Panel
1
3
24
(The mark indicates automatic termination.)
1 -AC IN socket
Connect the supplied AC power cord to this socket and
then to a wall outlet.
2 Ground (
) terminal
Connect a GND cable.
3 LINE A connectors
Line input connectors for Y/C separate, composite
video and audio signals and their loop-through output
connectors.
Press the LINE A button on the control panel to
monitor the input signal through these connectors.
If you input signals to both Y/C IN and VIDEO IN, the
signal input to the Y/C IN is selected.
Y/C IN/OUT (4-pin mini-DIN)
These are the input/output connectors for a Y/C
separate signal. Connect them to the Y/C separate
input/output connectors on equipment such as a
VCR, video camera, or another monitor.
VIDEO IN/OUT (BNC)
These are the input/output connectors for a
composite video signal. Connect them to the
composite video input/output connectors on
equipment such as a VCR, video camera, or another
monitor.
AUDIO IN/OUT (phono jack)
These are the input/output jacks for an audio signal.
Connect them to the audio input/output jacks on
equipment such as a VCR.
(Continued)
To Next Page
