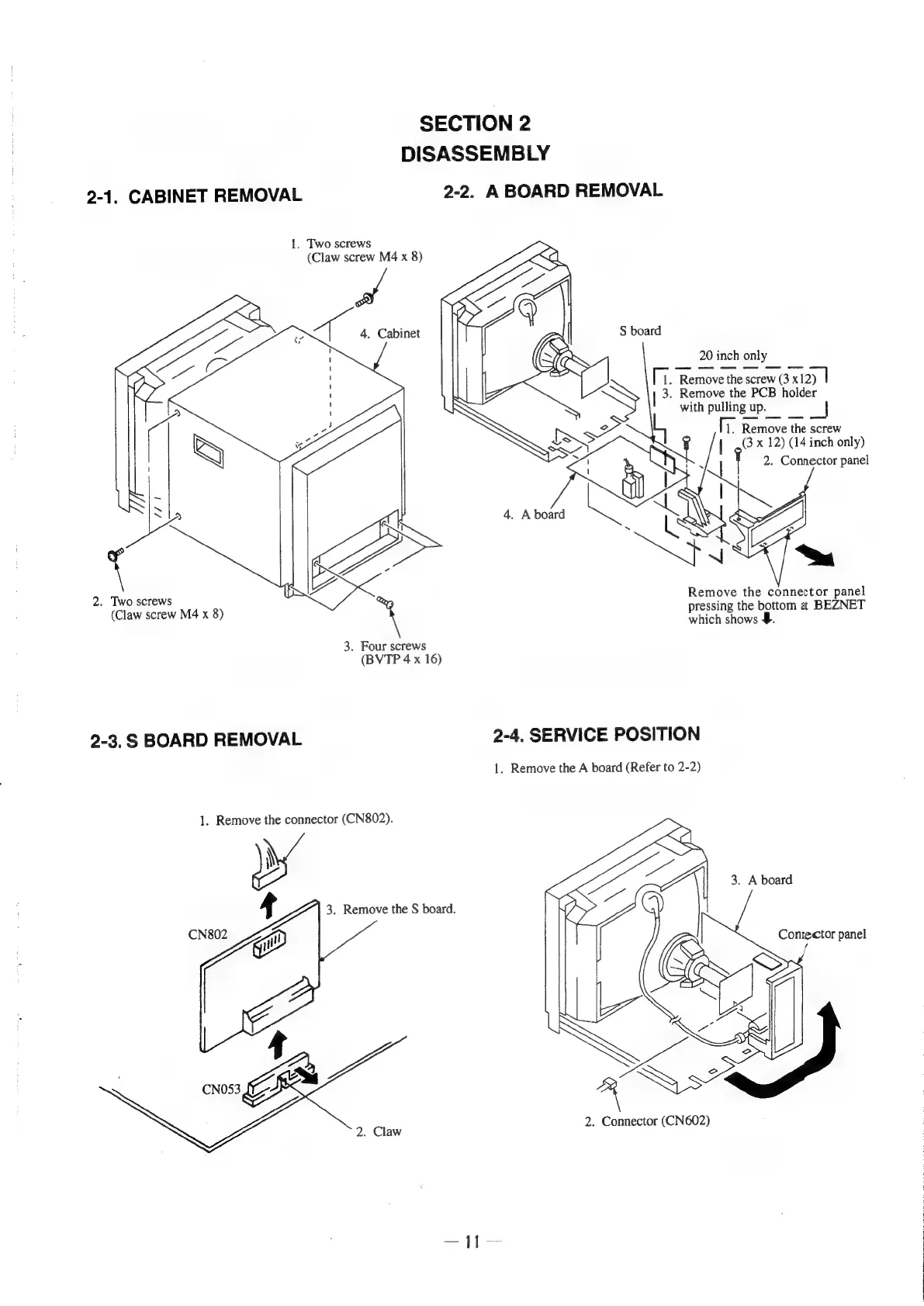

SECTION 2
DISASSEMBLY
2-1.
CABINET
REMOVAL
2-2.
A
BOARD
REMOVAL
1. Two screws
(Claw screw M4 x 8)
a 4. Cabinet
| 3. Remove the PCB holder
with pulling up. _|
1. Remove the screw
(3 x 12) (14 inch only)
2. Connector panel
Remove the connector panel
pressing the bottom at BEZNET
2. Two screws
which shows §.
(Claw screw M4 x 8)
3. Four screws
(BVTP 4 x 16)
2-4. SERVICE POSITION
1. Remove the A board (Refer to 2-2)
2-3. S BOARD REMOVAL
1. Remove the connector (CN802).
i
4 3. Remove the S board.
2. Connector (CN602)
