Sony Trinitron PVM-14N1E Service Manual

(PVM-14NTA/I4N1E/14NIMDE/14N1U/14N2A/14N2E/14N2U/
20N1A/20N1E/20N 1U/20N2A/20N2E/20N2U only)

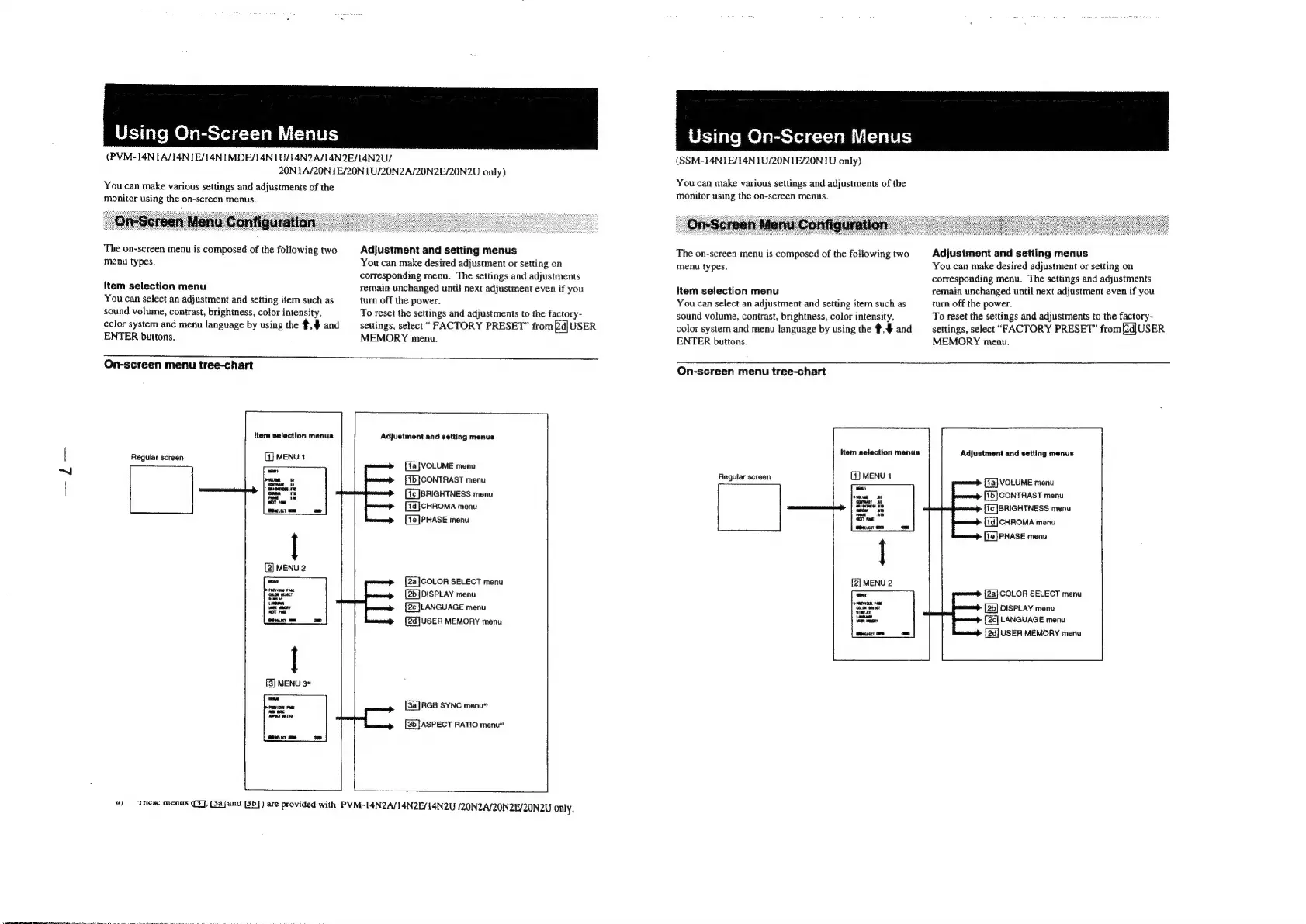

You can make various settings and adjustments of the
monitor using the on-screen menus.
The on-screen menu is composed of the following two
menu types.
Adjustment and setting menus
You can make desired adjustment or setting on
corresponding menu. The settings and adjustments
Item selection menu remain unchanged unti} next adjustment even if you
You can select an adjustment and setting item such as turn off the power.
sound volume, contrast, brightness, color intensity, To reset the settings and adjustments to the factory-
color system and menu language by using the #,$ and settings, select “ FACTORY PRESET” from Ba USER
ENTER buttons. MEMORY menu.
On-screen menu tree-chart
ttem selection menus Adjustment and setting menus
Regular
screen
(i
Menu
1
[fa]VOLUME
menu
[TE]
CONTRAST
menu
ae
[Te
]BRIGHTNESS
menu
[ig]CHROMA
menu
[te]PHASE menu
[2c ]LANGUAGE menu
(2d] USER MEMORY menu
[Ba] RGB SYNC menu®
[3b] ASPECT RATIO menu”
[2a]COLOA SELECT menu
Ne [2b] DISPLAY menu
“7
FHese:
menus
C2],
Sajanu
Bj)
are
provided
with
PYM-14NZA/14N2ZE/14N2U
/20NZA/20NZE/20N2U
only.
Using On-Screen Menus
(SSM-J4N1E/14N1U/20N1E/20N1U only)
You can make various settings and adjustments of the
monitor using the on-screen menus.
The on-screen menu is composed of the following two
menu types.
Item selection menu
You can select an adjustment and setting item such as
sound volume, contrast, brightness, color intensity,
color system and menu language by using the 4,4 and
ENTER buttons.
Adjustment and setting menus
You can make desired adjustment or setting on
corresponding menu. The settings and adjustments
remain unchanged until next adjustment even if you
turn off the power.
To reset the settings and adjustments to the factory-
settings, select “FACTORY PRESET” from [2d|USER
MEMORY menu.
On-screen menu tree-chart
Item selection menus
Regular screen
Adjustment and setting menus
[fa] VOLUME menu
[16) CONTRAST menu
{ic ]BRIGHTNESS menu
[1d] CHROMA menu
[ie] PHASE menu
[2a] COLOR SELECT menu
[2b] DISPLAY menu
[2c] LANGUAGE menu
[2d] USER MEMORY menu
