Sony Trinitron PVM-14N1E Service Manual

Features

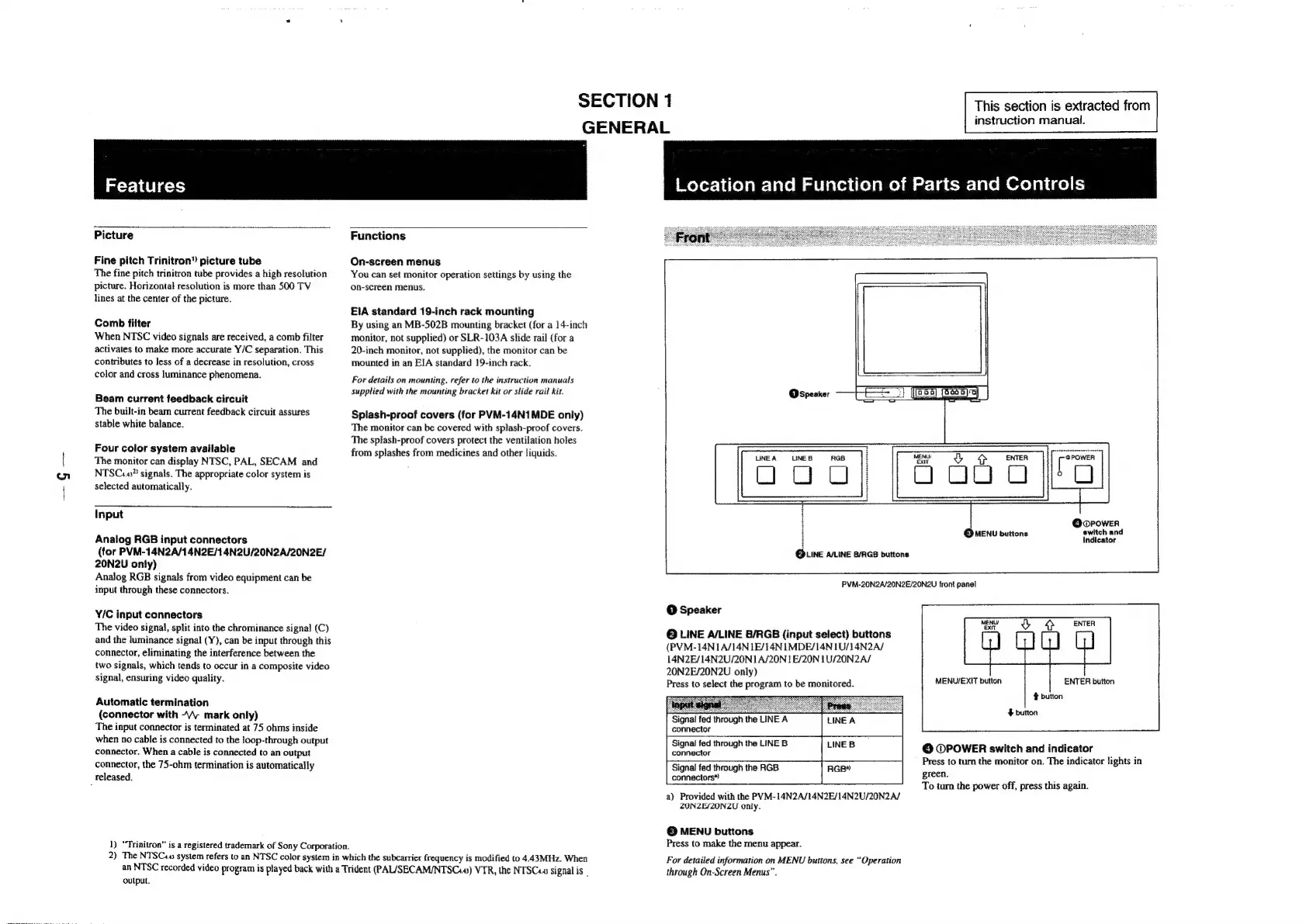

SECTION 1
GENERAL
Fine pitch Trinitron” picture tube
The fine pitch trinitron tube provides a high resolution
picture. Horizontal resolution is more than 500 TV
lines at the center of the picture.
Comb filter
When NTSC video signals are received, a comb filter
activates to make more accurate Y/C separation. This
contributes to less of a decrease in resolution, cross
color and cross luminance phenomena.
Beam current feedback circuit
The built-in beam current feedback circuit assures
stable white balance.
Four color system available
The monitor can display NTSC, PAL, SECAM and
NTSC.” signals. The appropriate color system is
selected automatically.
Input
Analog RGB input connectors
(for PVM-14N2A/14N2E/1 4N2U/20N2A/20N2E/
20N2U only)
Analog RGB signals from video equipment can be
input through these connectors.
Y/C input connectors
The video signal, split into the chrominance signal (C)
and the luminance signal (Y), can be input through this
connector, eliminating the interference between the
two signals, which tends to occur in a composite video
signal, ensuring video quality.
Automatic termination
(connector with “~- mark only)
The input connector is terminated at 75 ohms inside
when no cable is connected to the loop-through output
connector. When a cable is connected to an output
connector, the 75-ohm termination is automatically
released.
1) “Trinitron” is a registered trademark of Sony Corporation.
Functions
On-screen menus
You can set monitor operation settings by using the
on-screen menus.
EIA standard 19-inch rack mounting
By using an MB-502B mounting bracket (for a 14-inch
monitor, not supplied) or SLR-103A slide rail (for a
20-inch monitor, not supplied), the monitor can be
mounted in an EIA standard 19-inch rack.
For details on mounting, refer to the instruction manuals
supplied with the mounting bracket kit or slide rail kit.
Splash-proof covers (for PVM-14N1MDE only)
The monitor can be covered with splash-proof covers.
The splash-proof covers protect the ventilation holes
from splashes from medicines and other liquids.
2)
The
NTSC«s
system
refers
to
an
NTSC
color
system
in
which
the
subcarrier
frequency
is
modified
to
4.43MHz.
When
an
NTSC
recorded
video
program
is
played
back
with
a
Trident
(PAL/SECAM/NTSCas)
VTR,
the
NTSCas
signal
is
_
output.
This section is extracted from
instruction manual.
Moyer: } rola late Malt lavertielame) ml or:1etoer-larem Oxelelice) ()
oe Speaker
LINE A UNE B RGB
Ey)
Has sscashastonancedess
Oune A/LINE B/RGB buttons
Oorower
switch and
indicator
MENU buttons
ea
PVM-20N2A/20N2E/20N2U front panel
@ Speaker
@ LINE A/LINE B/RGB (input select) buttons
(PVM-14N1A/14N1E/14N LMDE/14N1LU/14N2A/
14N2E/14N2U/20N1 A/20N1E/20N 1U/20N2A/
20N2E/20N2U only)
Press to select the program to be monitored.
tl @ LINE
Signal fed throug!
LINE A
connector
Signal fed through the LINE B LINE B
connector
Signa! fed through the RGB RGB
connectors”
a) Provided with the PVM-14N2A/14N2E/14N2U/20N2A/
ZONZE/Z0N2U only.
© MENU buttons
Press to make the menu appear.
For detailed information on MENU butions, see “Operation
through On-Screen Menus”.
rc
MENU/EXIT button ENTER button
$ button
Le
© POWER switch and indicator
Press to turn the monitor on. The indicator lights in
green.
To turn the power off, press this again.
