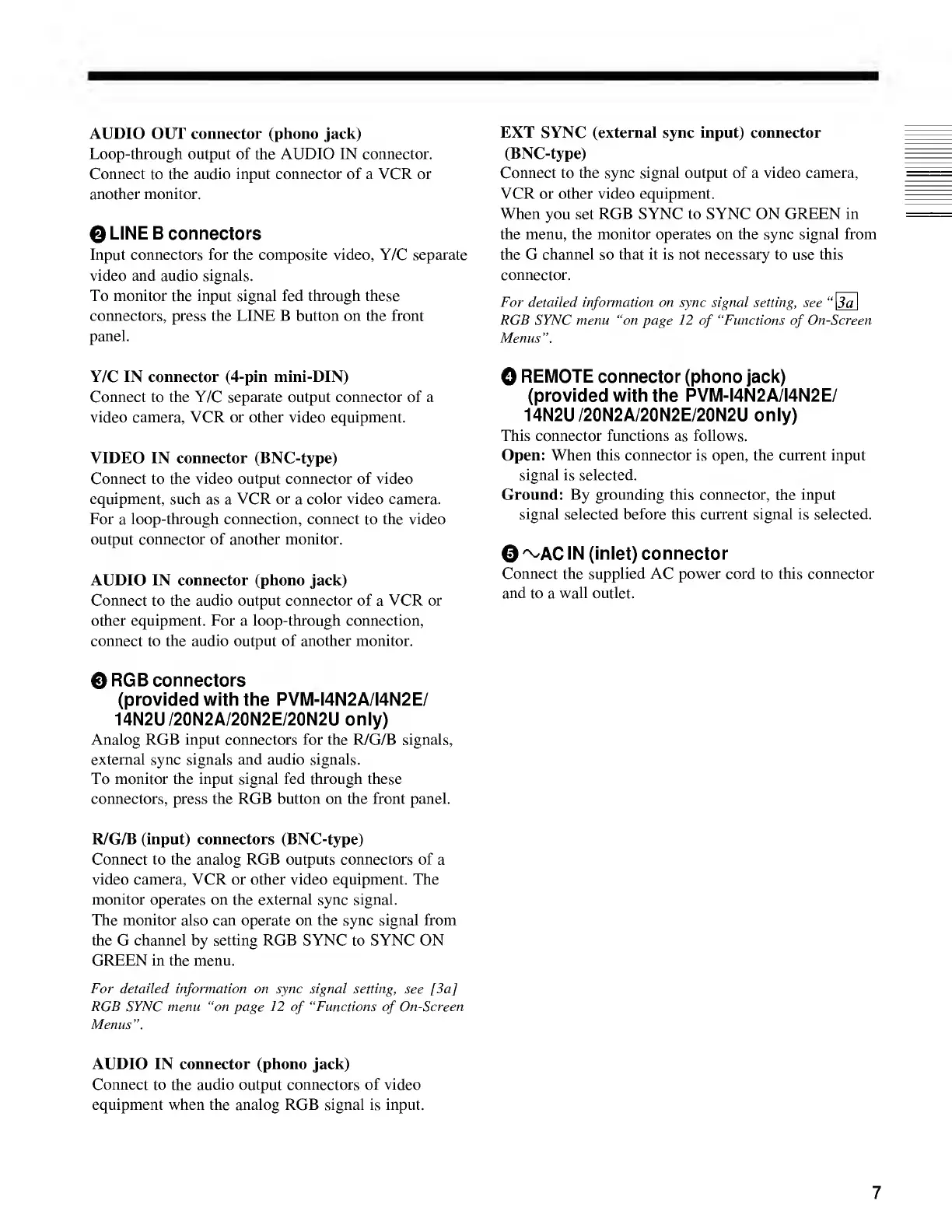

AUDIO
OUT
connector
(phono
jack)
Loop-through
output
of
the
AUDIO
IN
connector.
Connect
to
the
audio
input
connector
of
a
VCR
or
another
monitor.
0
LINE
B
connectors
Input
connectors
for
the
composite
video,
Y/C
separate
video
and
audio
signals.
To
monitor
the
input
signal
fed
through
these
connectors,
press
the
LINE
B
button
on
the
front
panel.
Y/C
IN
connector
(4-pin
mini-DIN)
Connect
to
the
Y/C
separate
output
connector
of
a
video
camera,
VCR
or
other
video
equipment.
VIDEO
IN
connector
(BNC-type)
Connect
to
the
video
output
connector
of
video
equipment,
such
as
a
VCR
or
a
color
video
camera.
For
a
loop-through
connection,
connect
to
the
video
output
connector
of
another
monitor.
AUDIO
IN
connector
(phono
jack)
Connect
to
the
audio
output
connector
of
a
VCR
or
other
equipment.
For
a
loop-through
connection,
connect
to
the
audio
output
of
another
monitor.
0
RGB
connectors
(provided
with
the
PVM-I4N2A/I4N2E/
14N2U
/20N2A/20N2E/20N2U
only)
Analog
RGB
input
connectors
for
the
R/G/B
signals,
external
sync
signals
and
audio
signals.
To
monitor
the
input
signal
fed
through
these
connectors,
press
the
RGB
button
on
the
front
panel.
R/G/B
(input)
connectors
(BNC-type)
Connect
to
the
analog
RGB
outputs
connectors
of
a
video
camera,
VCR
or
other
video
equipment.
The
monitor
operates
on
the
external
sync
signal.
The
monitor
also
can
operate
on
the
sync
signal
from
the
G
channel
by
setting
RGB
SYNC
to
SYNC
ON
GREEN
in
the
menu.
For
detailed
information
on
sync
signal
setting,
see
[3a]
RGB
SYNC
menu
“on
page
12
of
“Functions
of
On-Screen
Menus
AUDIO
IN
connector
(phono
jack)
Connect
to
the
audio
output
connectors
of
video
equipment
when
the
analog
RGB
signal
is
input.
EXT
SYNC
(external
sync
input)
connector
(BNC-type)
Connect
to
the
sync
signal
output
of
a
video
camera,
VCR
or
other
video
equipment.
When
you
set
RGB
SYNC
to
SYNC
ON
GREEN
in
the
menu,
the
monitor
operates
on
the
sync
signal
from
the
G
channel
so
that
it
is
not
necessary
to
use
this
connector.
For
detailed
information
on
sync
signal
setting,
see
“
|
3a
1
RGB
SYNC
menu
“on
page
12
of
“Functions
of
On-Screen
Menus
0
REMOTE
connector
(phono
jack)
(provided
with
the
PVM-I4N2A/I4N2E/
14N2U/20N2A/20N2E/20N2U
only)
This
connector
functions
as
follows.
Open:
When
this
connector
is
open,
the
current
input
signal
is
selected.
Ground:
By
grounding
this
connector,
the
input
signal
selected
before
this
current
signal
is
selected.
0
^AC
IN
(inlet)
connector
Connect
the
supplied
AC
power
cord
to
this
connector
and
to
a
wall
outlet.
7
