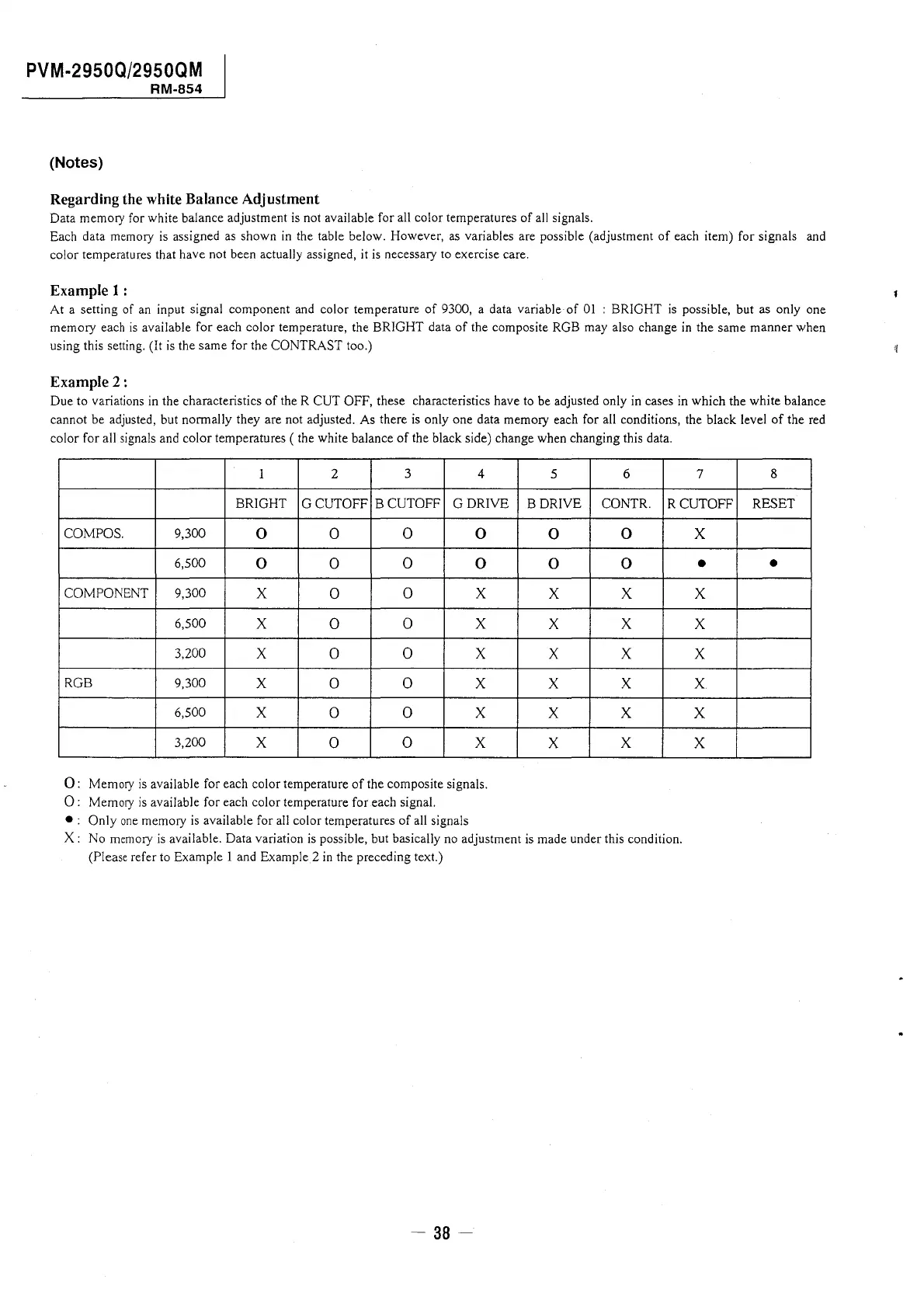

PVM-2950Q/2950QM
RM-854
(Notes)
Regarding the white Balance Adjustment
Data memory for white balance adjustment is not available for all color temperatures of all signals.
Each data memory is assigned as shown in the table below. However, as variables are possible (adjustment of each item) for signals and
color temperatures that have not been actually assigned, it is necessary to exercise care.
Example 1:
At a setting of an input signal component and color temperature of 9300, a data variable of 01 : BRIGHT is possible, but as only one
memory each is available for each color temperature, the BRIGHT data of the composite RGB may also change in the same manner when
using this setting. (It is the same for the CONTRAST too.)
Example2:
Due to variations in the characteristics of the R CUT OFF, these characteristics have to be adjusted only in cases in which the white balance
cannot be adjusted, but normally they are not adjusted. As there is only one data memory each for all conditions, the black level of the red
color for all signals and color temperatures ( the white balance of the black side) change when changing this data.
1 2
3
4 5 6 7
BRIGHT
GCUTOFF
BCUTOFF GDRIVE B DRIVE CONTR.
RCUTOFF
COMPOS. 9,300
0 0 0 0
6,500
0 0
0
0
COMPONENT 9,300
X
0
0 X
6,500
X
0 0
X
3,200
X 0 0 X
RGB 9,300
X 0 0 X
6,500
X 0 0 X
3,200
X
0
0 X
0: Memory is available for each color temperature of the composite signals.
0: Memory is available for each color temperature for each signal.
• : Only one memory is available for all color temperatures of all signals
0
0
0 0
X X
X X
X X
X X
X X
X
X
X: No memory is available. Data variation is possible, but basically no adjustment is made under this condition.
(Please refer to Example 1 and Example 2 in the preceding text.)
- 38 -
X
•
X
X
X
X
X
X
8
RESET
•
To Next Page
