Sony Trinitron PVM-2950QM - Chassis

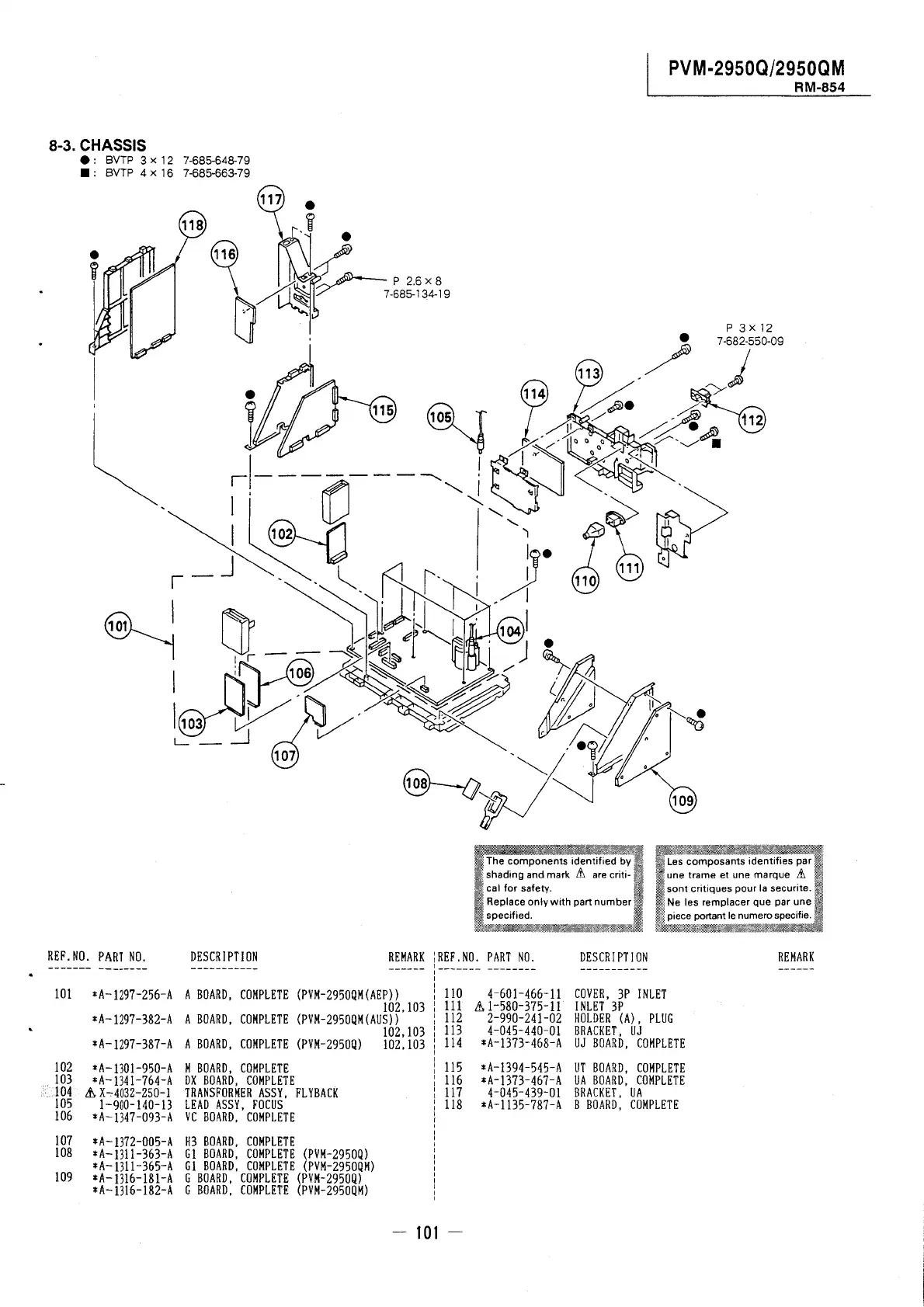

8-3. CHASSIS
• : BVTP 3 x 12 7-685-648-79
■ : BVTP 4 X 16 7-685-663-79
The components identified by
shading and mark & are criti-
cal for safety.
Replace only with part number
specified.
PVM-2950Q/2950QM
RM-854
Les composants identifies par
une trame et une marque &
sont critiques pour la securite.
Ne les remplacer que par une
piece portant le numero specifie.
REF. NO. PART NO.
DES CR I PT ION
REMARK REF.NO. PART NO. DESCRIPTION
REMARK
101
*A-1297-256-A A BOARD, COMPLETE (PVM-2950QM(AEP))
110
4-601-466-11 COVER, 3P INLET
102, 103
111 & 1-580-375-11 INLET 3P
*A-1297-382-A A BOARD, COMPLETE (PVM-2950QM(AUS))
112 2-990-241-02 HOLDER (A), PLUG
102,103
113
4-045-440-01
BRACKET, UJ
*A-1297-387-A
A BOARD, COMPLETE (PVM-2950Q)
102, 103
114 *A-1373-468-A UJ BOARD, COMPLETE
102
*A-1301-950-A M BOARD, COMPLETE
115
*A-1394-545-A UT BOARD, COMPLETE
103
*A-1341-764-A
DX BOARD, COMPLETE 116
*A-1373-467-A
UA BOARD, COMPLETE
104
&. X-c-4032-250-1
TRANSFORMER ASSY, FLYBACK 117 4-045-439-01
BRACKET, UA
105
1-900-140-13
LEAD ASSY, FOCUS
118 *A-1135-787-A
B BOARD, COMPLETE
106
*A-1347-093-A
VC BOARD, COMPLETE
107
*A-1372-005-A
H3 BOARD, COMPLETE
108
*A-1311-363-A
Gl BOARD, COMPLETE (PVM-2950Q)
*A-1311-365-A
Gl BOARD, COMPLETE (PVM-2950QM)
109
*A-1316-181-A
G BOARD, COMPLETE (PVM-2950Q)
*A-1316-182-A
G BOARD, COMPLETE (PVM-2950QM)
- 101 -
