Connecting the Projector
SVGA (VPL-CS20) mode for the external
monitor.
• If you set your computer, such as a notebook
computer, to output the signal to both your
computer’s display and the external monitor,
the picture of the external monitor may not
appear properly. Set your computer to output
the signal to only the external monitor.
For details, refer to the operating
instructions supplied with your computer.
To connect a Macintosh computer equipped
with a video output connector of a type having
two rows of pins, use a commercially available
plug adaptor.
This section describes how to connect the
projector to a VCR.
For more information, refer to the
instruction manuals of the equipment you
are connecting.

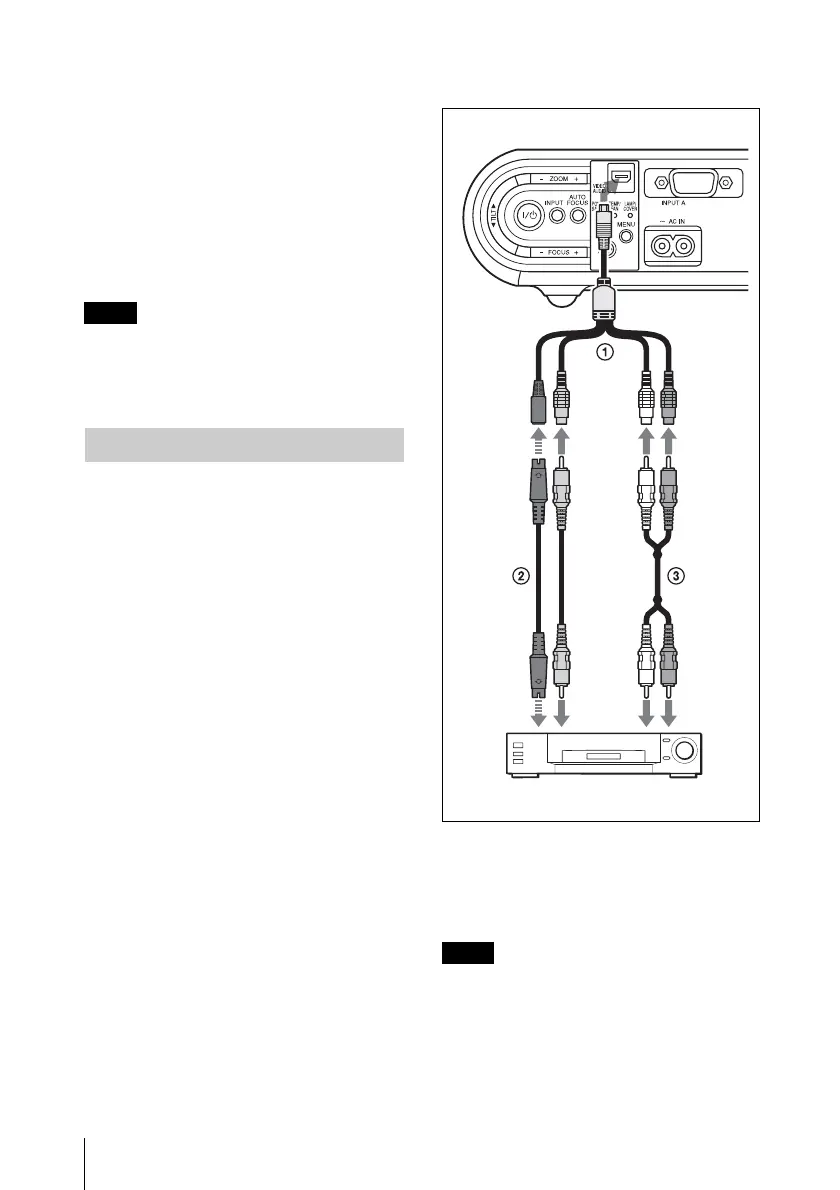

To connect to a video or S video
output connector
A A/V connecting adaptor (supplied)
B S-video cable (not supplied) or Video cable
(not supplied)
C Stereo audio connecting cable (not supplied)
(Use a no-resistance cable.)
Connect either a video or S video output
connector.
Note
Connecting a VCR
Note
VCR
to S
video
output
Left side
Red
to audio
output
(R)
to video
output
White
to audio
output
(L)
