4

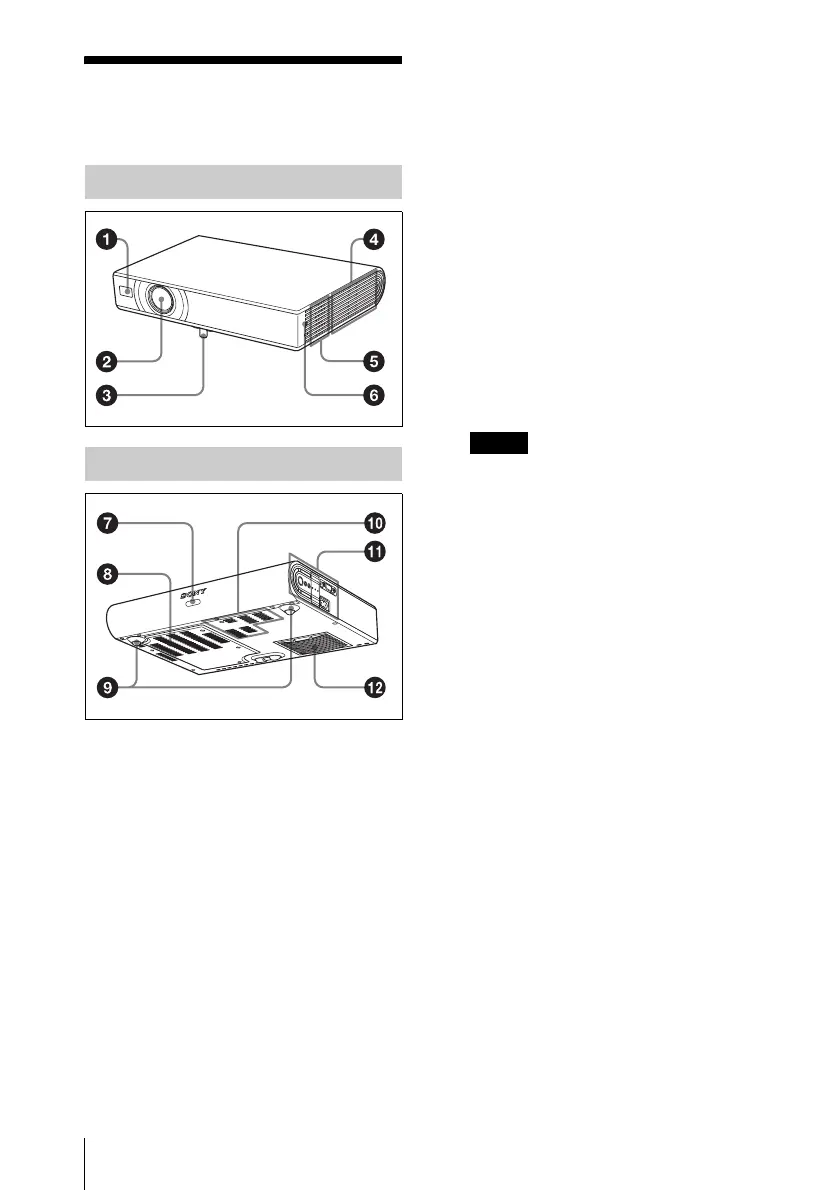

Location and Function of Controls
Location and
Function of Controls
a Front remote control detector
b Lens
c Powered tilt adjuster
d Ventilation holes (exhaust)
e Speaker
f Security lock
Connects to an optional security cable
(from Kensington).
Web page address:
http://www.kensington.com/
g Rear remote control detector
h Ventilation holes (intake)/Lamp
cover
i Adjusters (hind pad)
Turn the appropriate adjuster to the right
or left for minor tilt adjustment of the
projected picture.
j Ventilation holes (intake)
k Control/Connector Panel
For details, see “Control/Connector
Panel” on page 5.
l Ventilation holes (intake)/Air
filter cover
• Do not place anything near the
ventilation holes as this may cause
internal heat build-up.
• Do not place your hand near the
ventilation holes as this may cause
injury.
• To maintain optimal performance, clean
the air filter every 500 hours.
For details, see “Cleaning the Air
Filter” on page 34.
Top/Front/Left Side
Rear/Right Side/Bottom
Notes
To Next Page
