Projecting
Projecting the Picture

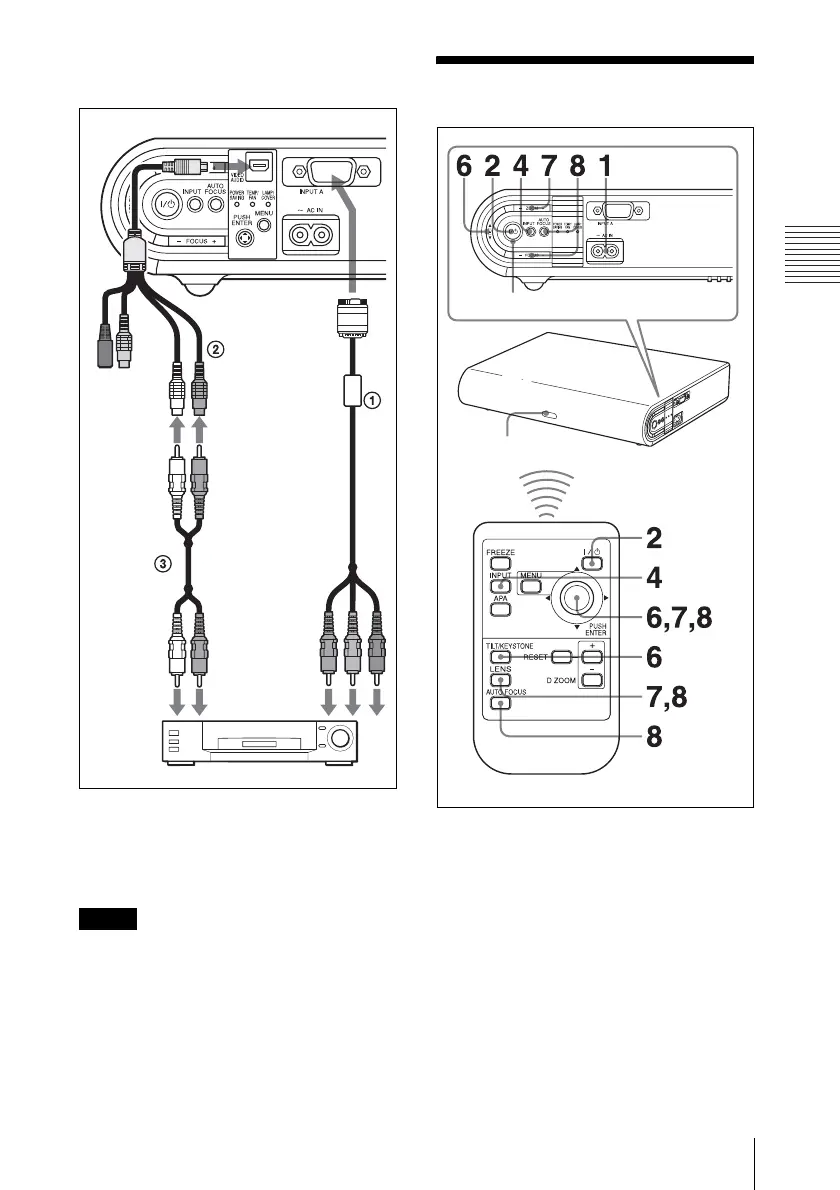

To connect to a video GBR/
Component output connector
A SMF-402 Signal Cable (not supplied)
HD D-sub 15-pin (male) ↔ 3 × phono jack
B A/V connecting adaptor (supplied)
C
Stereo audio connecting cable (not supplied)
(Use a no-resistance cable.)
Set the aspect ratio using “Wide Mode” on the
Signal menu according to the input signal.
Projecting
1 Plug the AC power cord into a wall
outlet, then connect all equipment.
The ON/STANDBY indicator lights in
red and the projector goes into standby
mode.
2 Press the ?/1 key.
The ON/STANDBY indicator flashes in
green and the Advanced Intelligent
Auto-setup starts. The powered tilt
adjuster rises and stops at the previously
adjusted position and adjusts the focus.
Note
Left side
Red
to
audio
output
(R)
VCR
to video
GBR/
component
output
White
to
audio
output
(L)
ON/STANDBY indicator
Rear remote control
detector
