Projection Distance
Projection Distance

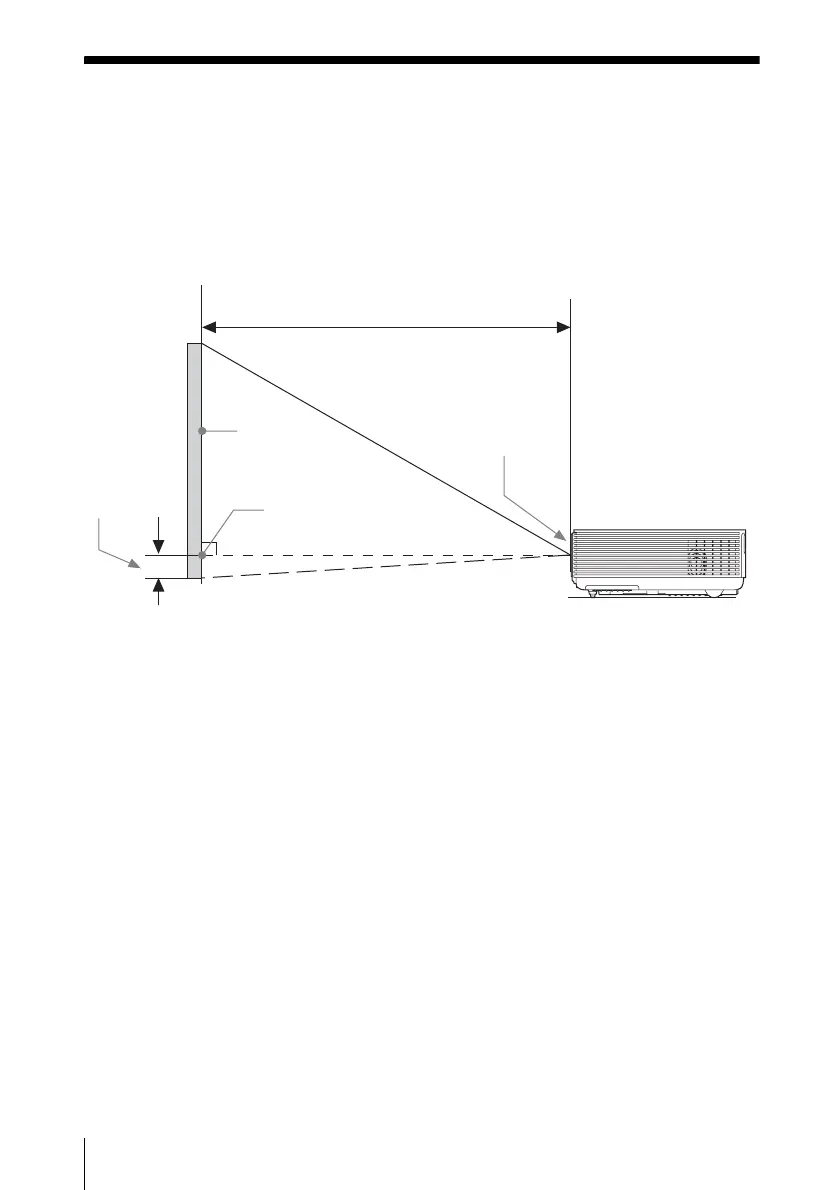

The projection distance is the distance between the front of the lens and the surface of the
projected image. The following describes the projection distance and height from the center of
the lens to edge of screen by each projected screen size. Height H is the height from the bottom
of the projected image (top for ceiling mount) to A (determined by drawing a perpendicular line
from the center of the lens to projected image surface).
Floor Installation
Projection distance L
Projected
A
Height H from
center of lens
to edge of
screen
Center of lens
