Sony VPL-DX271 - Location and Function of Controls; Main Unit

3

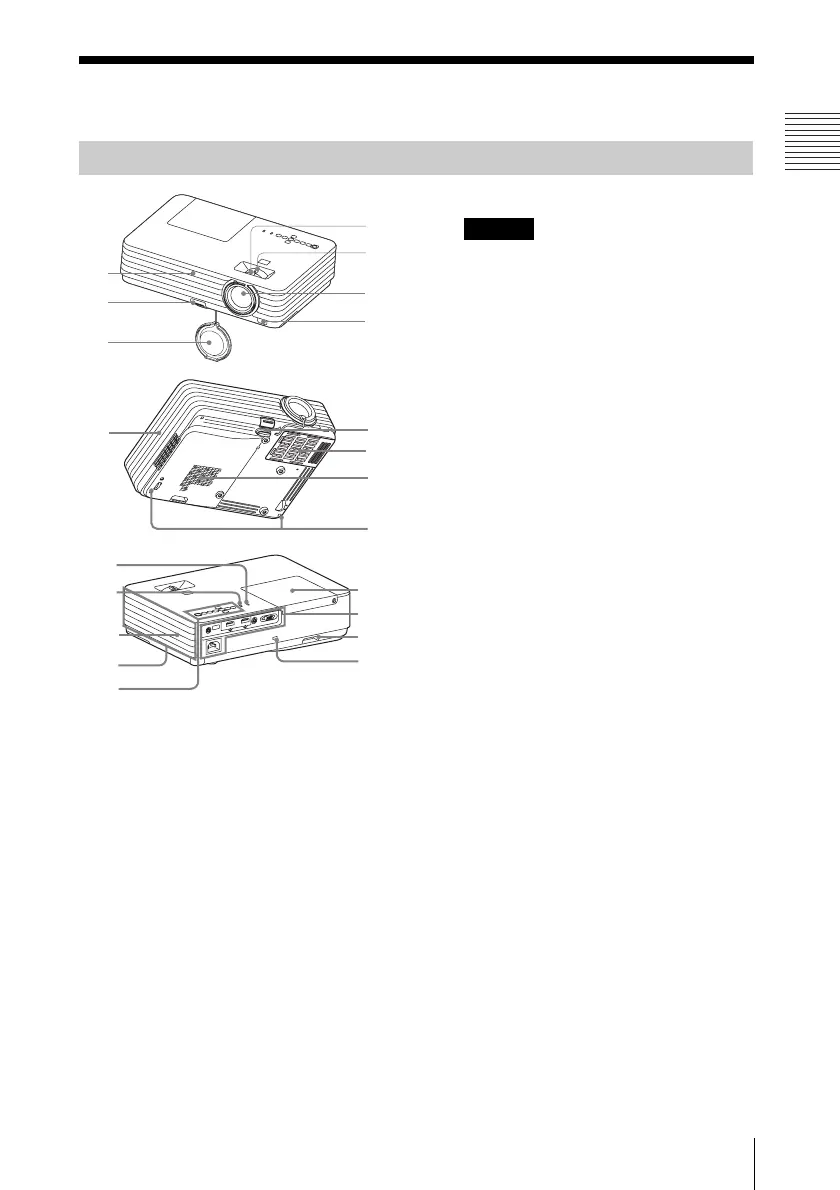

Location and Function of Controls
Overview
B Overview
Location and Function of Controls
a Focus ring (page 11)
b Zoom ring (page 11)
c Lens
d Remote control detector
e Lens cap
f Foot adjust button (page 13)
g Front foot (adjustable) (page 13)
h Air filter cover/Ventilation holes
(intake) (page 36)
i Rear feet (page 13)
j Ventilation holes (exhaust)
Do not place anything near the ventilation
holes as this may cause internal heat
buildup. Do not place your hand near the
ventilation holes and the circumference as
this may cause injury.
k Lamp cover (page 34)
l Terminal panel (page 4)
m Security bar
Connects to a commercially available
security chain or wire.
n Security lock
Connects to an optional security cable
manufactured by Kensington.
For details, visit Kensington’s web site.
http://www.kensington.com/
o Control panel keys (page 5)
p Ventilation holes (intake)
q Speaker
r WARNING indicator (page 29)
s ON/STANDBY indicator
(page 29)
Main Unit
6
5
qh
4
3
2
1
qh
7
8
9
0
qj
qs
qd
qa
qf
q
g
qk
ql
qh
Caution
