Connecting the Projector
Connections with a DVD player or BD player are explained for each input signal.
VIDEO
For connecting video equipment with a video output terminal.
INPUT A
For connecting video equipment with a YPBPR output terminal.
INPUT B/INPUT C
• Only VPL-DX271/DX241/DW241 has the INPUT C terminal.
• Use HDMI-compatible equipment and cable(s) that have an HDMI logo on them.
• The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) Signal
or CEC (Consumer Electronics Control) Signal.
• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are
recommended.)
• The maximum resolution of the INPUT C terminal is set to 720p.
Connecting a Video equipment
Notes

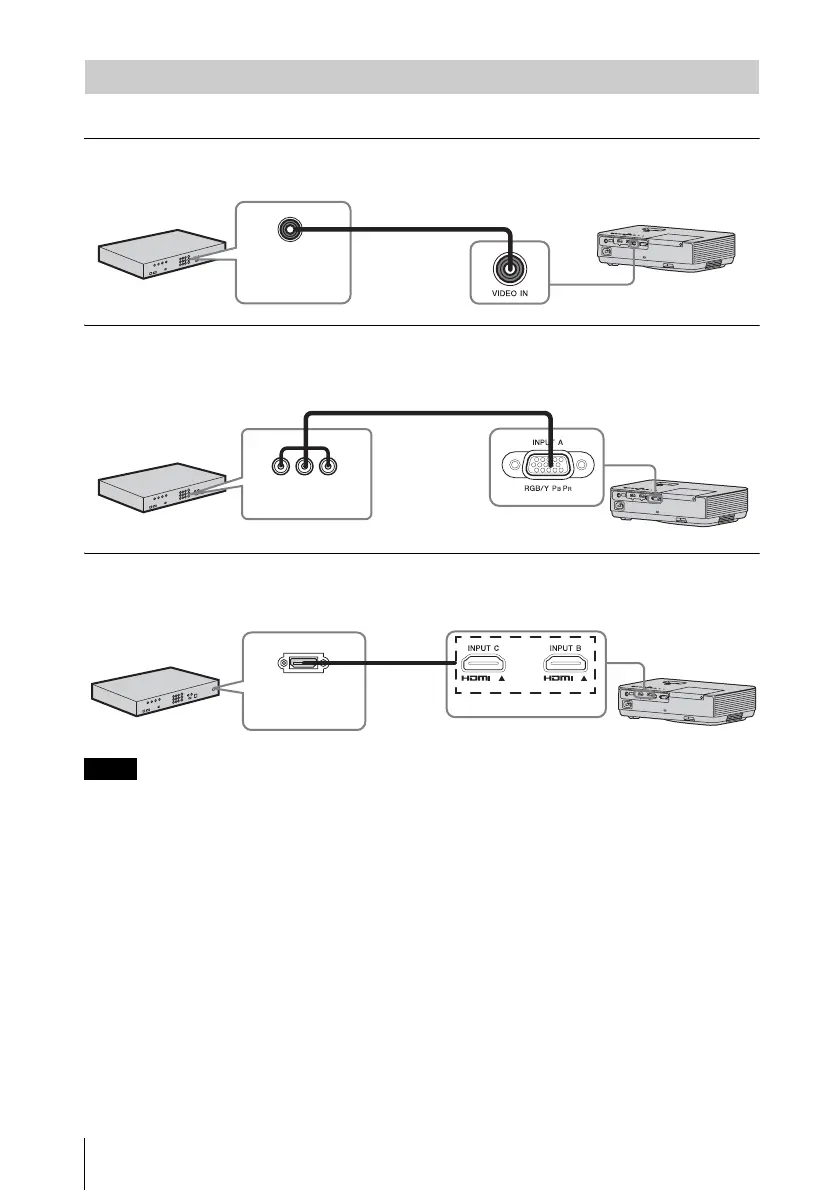

Video cable (not supplied)
Video output
terminal
Video equipment
Component – Mini D-sub 15-pin cable (not supplied)
Video equipment
YP
BPR output
terminal
Video equipment
HDMI
cable
(not
supplied)
HDMI output
terminal
For connecting video equipment with an HDMI output terminal.
