49
Specifications
Others

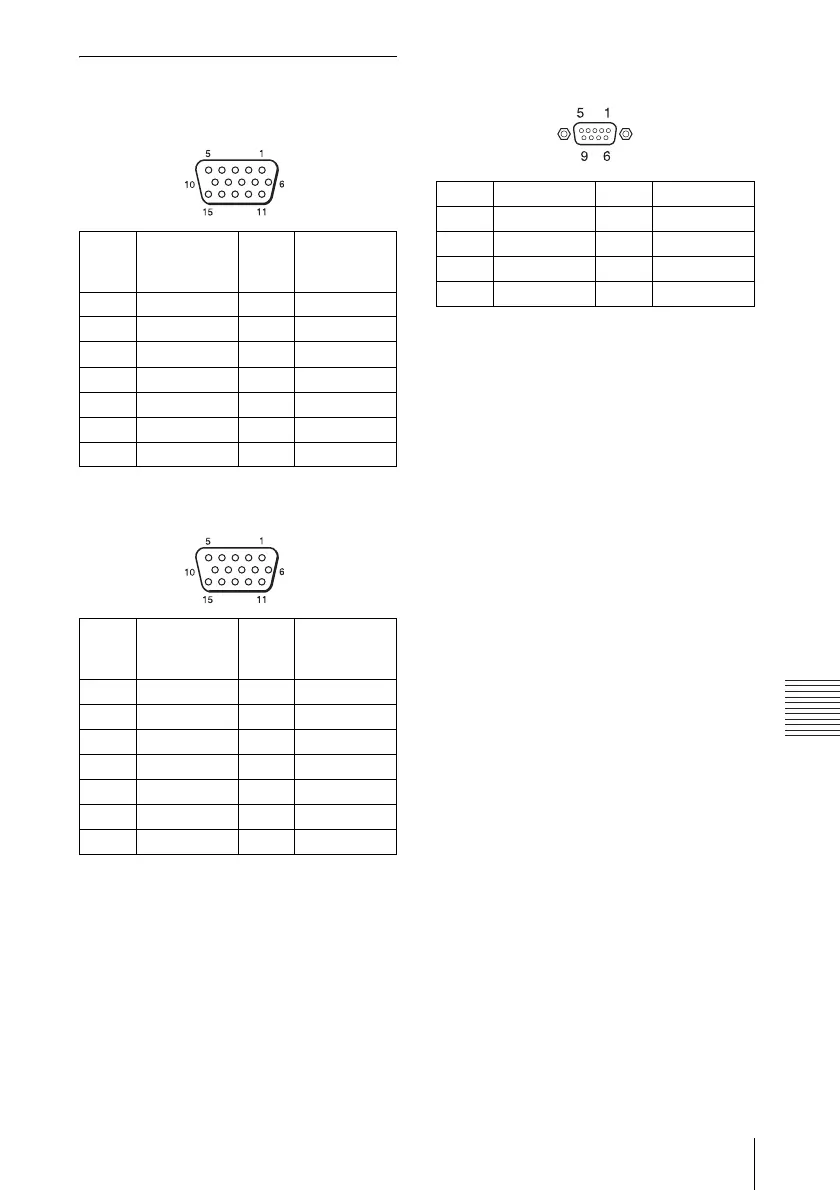

Pin assignment
INPUT A connector (HD D-sub 15-pin,
female)
INPUT B connector (HD D-sub 15-pin,
female) (VPL-EX70 only)
RS-232C connector (D-sub 9 pin,
female) (VPL-EX70/EX7 only)
1R/R-Y 9Power
supply input
for DDC
2 G/Y 10 GND
3 B/B-Y 11 GND
4 RESERVE 12 DDC/SDA
5 GND 13 HD
6 GND (R) 14 VD
7 GND (G) 15 DDC/SCL
8 GND (B)
1R 9Power
supply input
for DDC
2 G 10 GND
3 B 11 GND
4 RESERVE 12 DDC/SDA
5 GND 13 HD
6 GND (R) 14 VD
7 GND (G) 15 DDC/SCL
8 GND (B)
1NC 6NC
2RXDA 7RTS
3TXDA 8CTS
4DTR 9NC
5 GND
