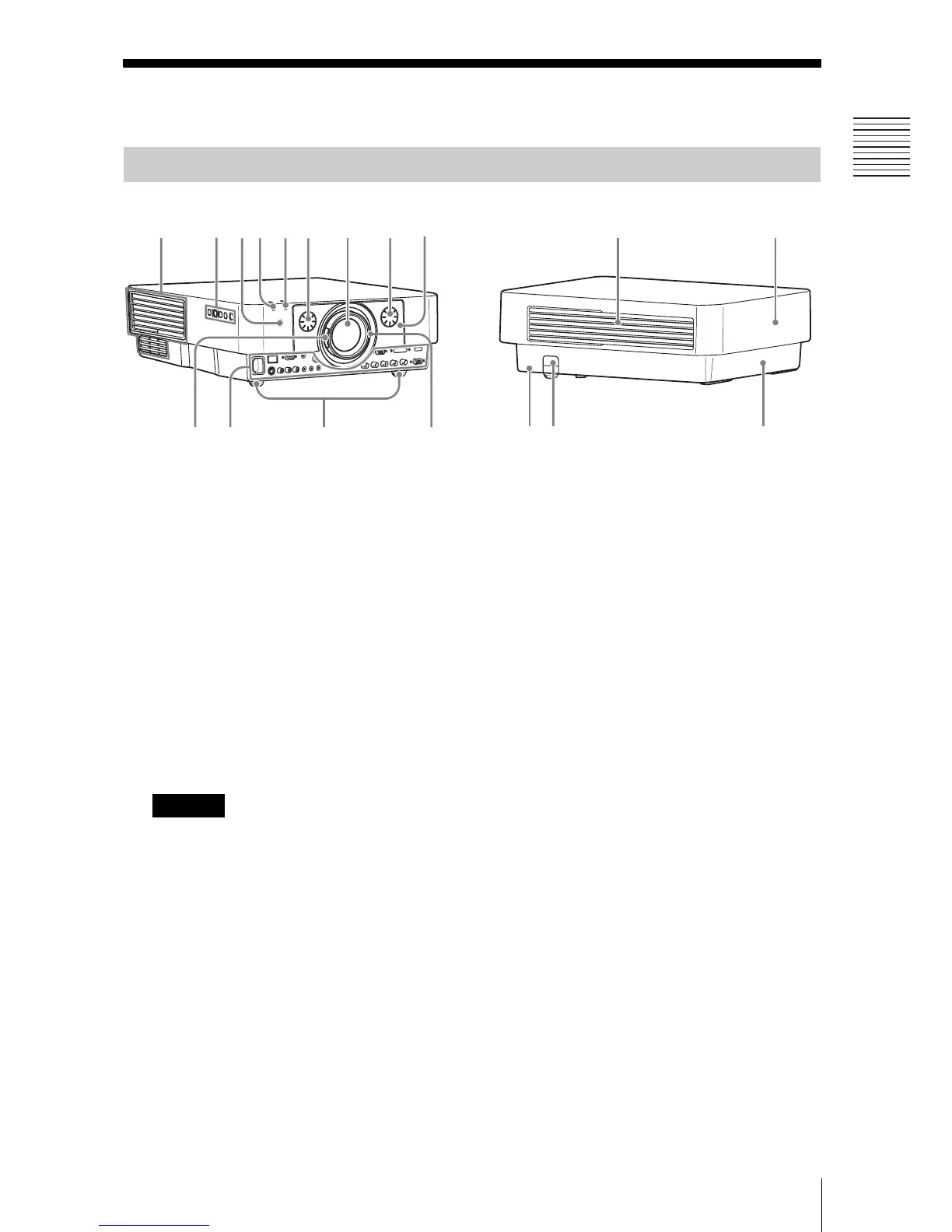

Location and Function of Controls
Overview
B Overview
Location and Function of Controls
a Lens (page 44)
b Focus ring (page 13)
c Zoom lever (page 13)
d Lens shift dial (page 13)
e Front panel (page 44)
f Rear panel (pages 41, 43)
g Ventilation holes (intake)
h Ventilation holes (exhaust)
Do not place anything near the ventilation
holes as this may cause internal heat
buildup. Do not place your hand near the
ventilation holes and the circumference as
this may cause injury.
i ON/STANDBY indicator
(page 37)
j LAMP/COVER indicator
(page 37)
k Control panel (page 5)
l Terminals (page 4)
m Remote control receiver
The remote control receivers are located
at the front and rear of the projector.
n Front feet (adjustable) (page 13)
o Antitheft lock
Connects to an optional antitheft cable
manufactured by Kensington.
For details, visit Kensington’s web site.
http://www.kensington.com/
p Antitheft bar
Connects to a commercially available
antitheft chain or wire.
