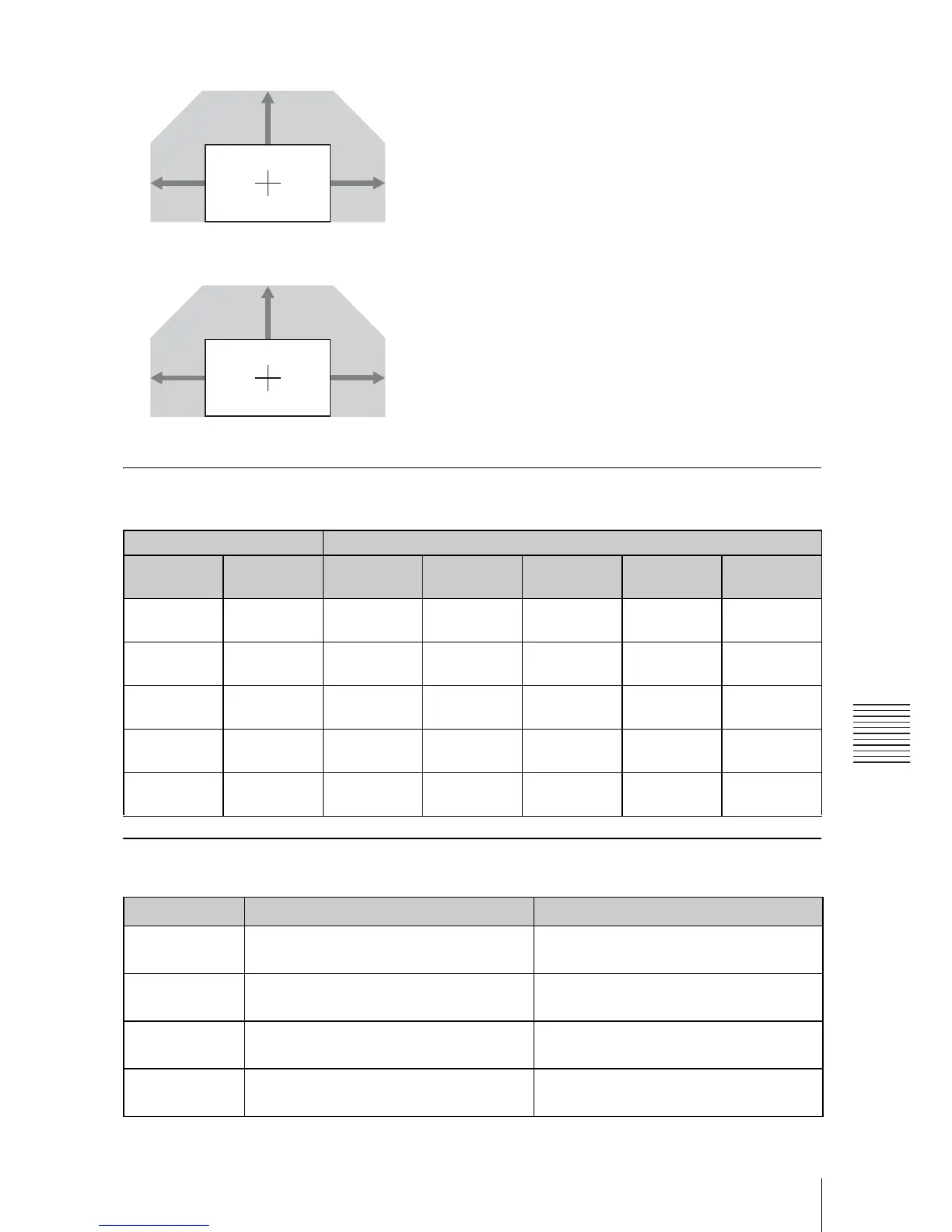

Projection Distance and Lens Shift Range
Others
x VPLL-2007
x VPLL-Z2009
Projection distance (VPL-FX37/FX35/FX30)
Unit: m (inches)
Projection distance formula (VPL-FX37/FX35/FX30)
D: Projected image size (Diagonal) Unit: m (inches)
10%
4%4%
VS
+= 10 – 2.500 × HS (HS + or HS –) [%]
VS
–= 0 [%]
HS
+=HS –= 4 – 0.400 × (VS + or VS –) [%]
50%
24%24%
VS
+= 50 – 2.083 × HS (HS + or HS –) [%]
VS
–= 0 [%]
HS
+=HS –= 24 – 0.480 × (VS + or VS –) [%]
Projection image size Projection distance L
Diagonal
Width ×
Height
Standard
lens
VPLL-2007 VPLL-Z2009 VPLL-Z1024 VPLL-Z1032
80"
(2.03 m)
1.63 × 1.22
(64 × 48)
2.31 – 3.69
(91 – 145)
1.05
(42)
1.37 – 1.65
(54 – 64)
3.85 – 5.28
(152 – 207)
5.24 – 8.01
(207 – 315)
100"
(2.54 m)
2.03 × 1.52
(80 × 60)
2.89 – 4.62
(114 – 182)
1.34
(53)
1.73 – 2.09
(68 – 82)
4.84 – 6.62
(191 – 260)
6.59 – 10.05
(260 – 395)
120"
(3.05 m)
2.44 × 1.83
(96 × 72)
3.48 – 5.56
(137 – 218)
1.62
(64)
2.09 – 2.54
(82 – 100)
5.83 – 7.97
(230 – 313)
7.94 – 12.09
(313 – 476)
150"
(3.81 m)
3.05 × 2.29
(120 × 90)
4.36 – 6.96
(172 – 274)
2.04
(80)
2.62 – 3.21
(103 – 126)
7.31 – 9.98
(288 – 393)
9.95 – 15.14
(392 – 596)
200"
(5.08 m)
4.06 × 3.05
(160 × 120)
5.83 – 9.29
(230 – 366)
2.74
(108)
3.51 – 4.32
(139 – 170)
9.77 – 13.34
(385 – 525)
13.32 – 20.24
(525 – 797)
Lens Projection distance L (minimal length) Projection distance L (maximal length)
Standard lens
L=0.0294 × D – 0.0465
(L=1.1555 × D – 1.8307)
L=0.0467 × D – 0.0443
(L=1.8389 × D – 1.7435)
VPLL-2007
L = 0.014062 × D – 0.0709
(L = 0.553633 × D – 2.7901)
–
VPLL-Z2009
L = 0.017831 × D – 0.0584
(L = 0.702003 × D – 2.3005)
L = 0.022323 × D – 0.1354
(L = 0.878873 × D – 5.3296)
VPLL-Z1024
L=0.0493 × D – 0.0973
(L=1.9423 × D – 3.8296)
L=0.0672 × D – 0.0930
(L=2.6454 × D – 3.6617)
