4

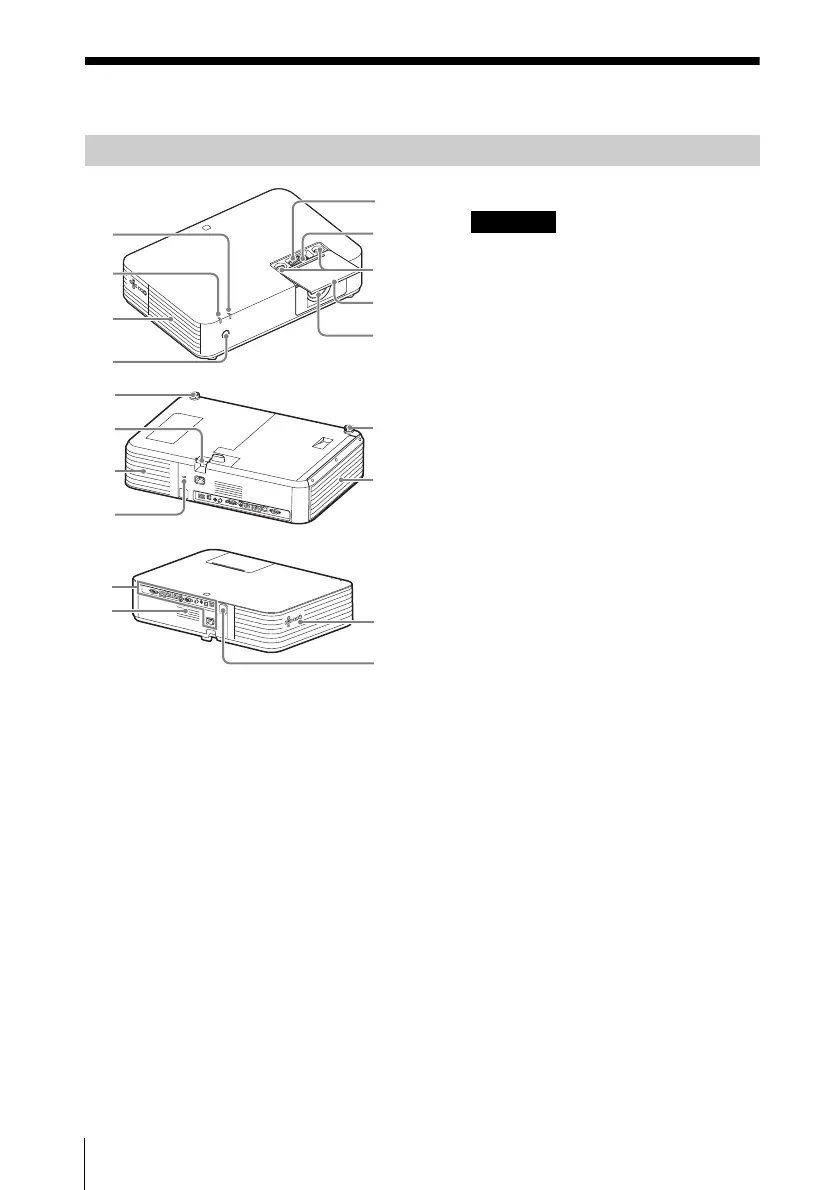

Location and Function of Controls
Overview
Location and Function of Controls
Zoom lever (page 18)
Focus lever (page 18)
Lens shift dial (page 18)
Lens Adjustment Cover
(page 19)
Slide open to adjust lens shift.
Projection lens
Remote control Receiver
Ventilation holes (exhaust)
Do not place anything near the
ventilation holes as this may cause
internal heat buildup. Do not place
your hand or deformable items
(plastic, etc.) near the ventilation
holes or around the projector, as it
may cause damage or personal
injury.
ON/STANDBY indicator
(page 66)
WARNING indicator (page 66)
Front feet (adjustable) (page 19)
Side cover/Ventilation holes
(intake) (page 73)
Security lock
Connects to an optional security
cable manufactured by
Kensington.
For details, visit Kensington’s web
site.
http://www.kensington.com/
Ventilation holes (intake)
(page 73)
Security bar
Connects to a commercially
available security chain or wire.
Control panel (page 6)
Speaker
Terminals (page 5)
Main Unit
1
2
3
5
4
9
8
7
6
To Next Page
