Connecting the Projector
Preparation
Connecting the Projector
• Make sure all the equipment is powered off when connecting the projector.
• Use the proper cables for each connection.
• Insert the cable plugs firmly. Loose connections may reduce performance of
picture signals or cause a malfunction. When pulling out a cable, be sure to grip
it by the plug, not the cable itself.
• For more information, refer also to the instruction manuals of the equipment you
are connecting.
• Use a no-resistance audio cable.
Connection with a computer is explained for each input signal.
INPUT A
For connecting a computer with an RGB output terminal.
In screen setting of your computer, it is recommended that you set the resolution
of an external monitor as below;
• VPL-PHZ10: 1,920 × 1,200 pixels
• VPL-PWZ10: 1,280 × 800 pixels
• VPL-PXZ10: 1,024 × 768 pixels

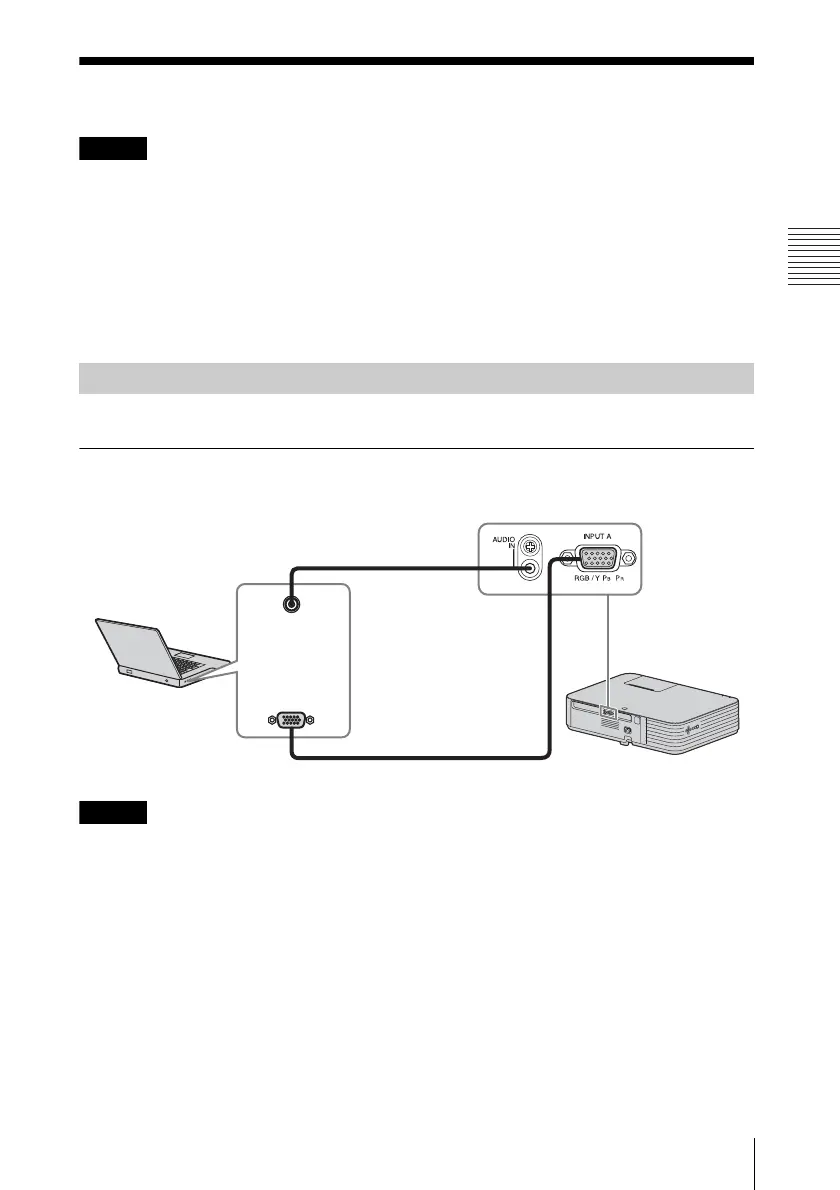

Connecting a Computer
RGB output
terminal
Audio output
terminal
Mini D-sub 15-pin cable (not supplied)
Computer
Audio cable (Stereo mini plug) (not supplied)
