Location and Function of Controls
Remote Commander
Control Panel Keys
Turning on the power/Going to
standby mode
/ (On/Standby) key
Selecting an input signal
(page 17)
INPUT key
Operating a menu (page 24)
MENU key
RESET key
ENTER //// (arrow) keys
RETURN key
Adjusting the image (page 18)
ASPECT key (page 28)
KEYSTONE key (page 20)
PATTERN key (page 23)
APA (Auto Pixel Alignment) key
*1
(page 23)
*1: Use this key when inputting a
computer signal via the RGB
input terminal (INPUT A).
Using various functions during
projecting
D ZOOM (Digital Zoom) +/– key
*1 *2
Enlarges a portion of the image
while projecting.
1
Press the D ZOOM + key to
display the digital zoom icon on
the projected image.
2
Press the /// keys to move
the digital zoom icon to the point
on the image you want to
enlarge.
3
Press the D ZOOM + key or the D
ZOOM – key repeatedly to
change the enlargement ratio.
The image can be enlarged up to
4 times.
Press the RESET key to restore the
previous image.
BLANK key
Cuts off the projected image
temporarily. Press again to restore
the previous image.
MUTING key
Mutes the audio output
temporarily. Press again to restore
the previous volume.
VOLUME +/– key
Adjusts the volume output.

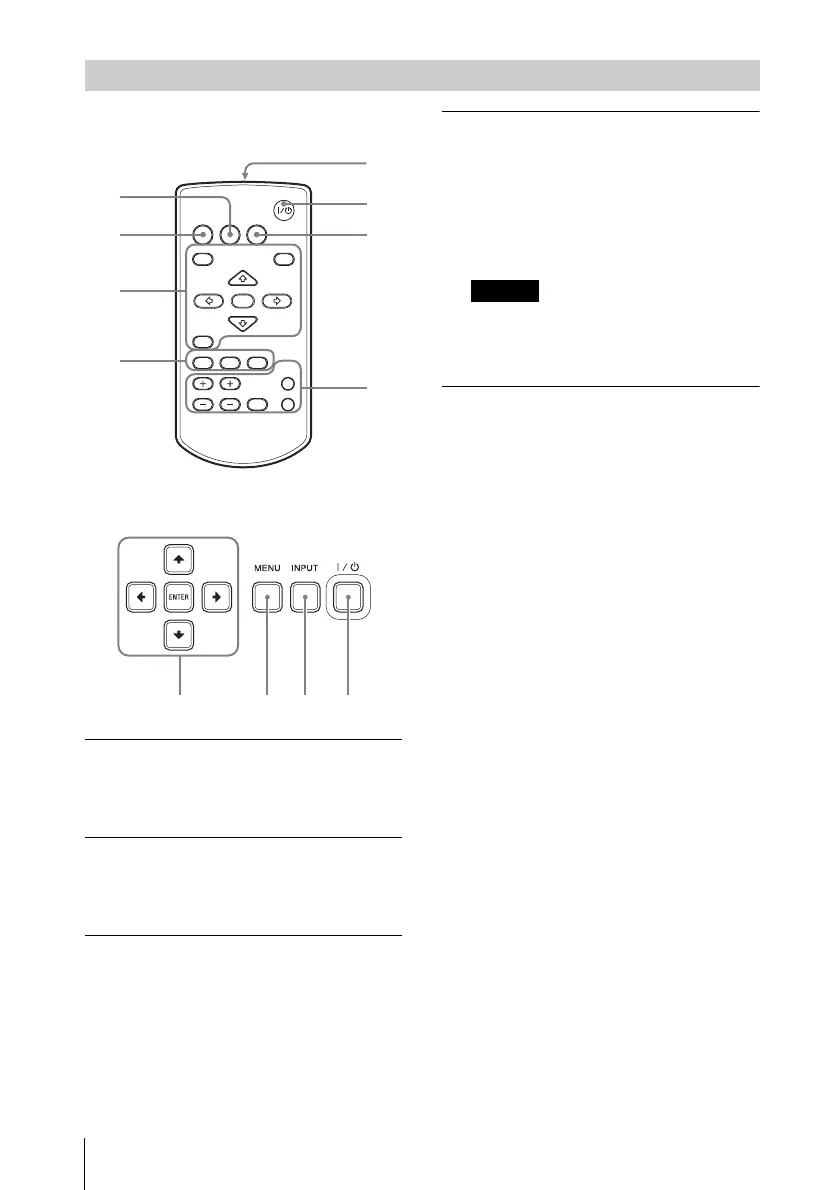

Remote Commander and Control Panel Keys
2
3
4
5
6
1
4
7
INPUT
MENU
APA ECO MODE
RETURN
ASPECT
D ZOOM
KEYSTONE
ENTER
VOLUME
PATTERN
FREEZE
BLANK
MUTING
RESET
To Next Page
