— 18 —
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
SECTION 6
EXPLODED VIEWS

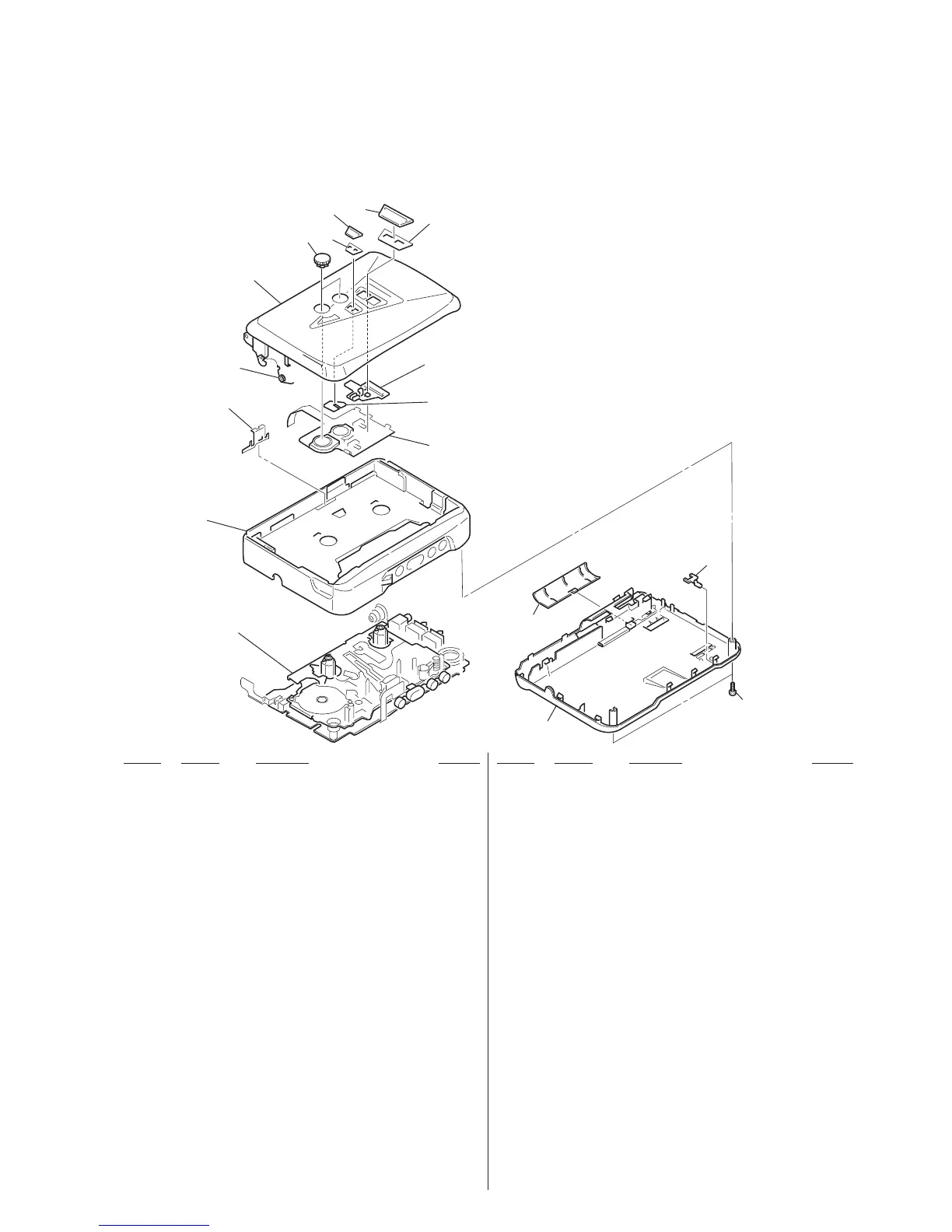

6-1. CABINET SECTION
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
CND : Canadian.
EE : East European.
FR : French.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 3-019-852-01 CABINET (REAR)(BLACK)(SILVER)
(EX170:CND,AEP,FR,EE/EX172:AEP,EE,FR)
1 3-019-852-11 CABINET (REAR)(BLUE)(EX172:AEP,FR)
1 3-019-852-21 CABINET (REAR)(GREEN)(EX172:AEP,FR)
1 3-019-852-31 CABINET (REAR)(RED)(EX172:AEP,FR)
1 3-019-852-51 CABINET (REAR)(BLACK)(SILVER)
(EX170:E,9E/EX172:E,6E,9E)
1 3-019-852-61 CABINET (REAR)(BLUE)(EX172:E,9E)
1 3-019-852-71 CABINET (REAR)(GREEN)(EX172:E,9E)
1 3-019-852-81 CABINET (REAR)(RED)(EX172:E,9E)
2 3-019-940-01 LID, BATTERY CASE(BLACK)(SILVER)
2 3-019-940-11 LID, BATTERY CASE(BLUE)
(EX172:AEP,FR,E,9E)
2 3-019-940-21 LID, BATTERY CASE(GREEN)
(EX172:AEP,FR,E,9E)
2 3-019-940-31 LID, BATTERY CASE(RED)
(EX172:AEP,FR,E,9E)
3 3-019-850-01 CABINET (FRONT)(BLACK)(SILVER)
(EX170:CND,AEP,FR,EE/EX172:AEP,EE,FR)
3 3-019-850-11 CABINET (FRONT)(BLUE)(EX172:AEP,FR)
3 3-019-850-21 CABINET (FRONT)(GREEN)(EX172:AEP,FR)
3 3-019-850-31 CABINET (FRONT)(RED)(EX172:AEP,FR)
3 3-019-850-51 CABINET (FRONT)(BLACK)(SILVER)
(EX170:E,9E/EX172:E,6E,9E)
3 3-019-850-61 CABINET (FRONT)(BLUE)(EX172:E,9E)
3 3-019-850-71 CABINET (FRONT)(GREEN)(EX172:E,9E)
3 3-019-850-81 CABINET (FRONT)(RED)(EX172:E,9E)
4 3-019-939-01 SPRING (CASSETTE HOLDER)
5 3-019-949-01 SPRING (TORSION)
6 3-019-847-01 HOLDER, CASSETTE(BLACK)(EX170)
6 3-019-847-11 HOLDER, CASSETTE(BLUE)
(EX170:CND,AEP,EE,E,9E)
7
9
8
15
16
6
5
4
10
11
12
3
MT-WMEX170-114
2
1
13
14
6 3-019-847-21 HOLDER, CASSETTE(GREEN)
(EX170:CND,AEP,EE,E,9E)
6 3-019-847-31 HOLDER, CASSETTE(RED)
(EX170:CND,AEP,EE,E,9E)
6 3-019-847-41 HOLDER, CASSETTE(SILVER)
(EX170:CND,AEP,EE,E,9E)
6 3-019-848-01 HOLDER, CASSETTE(BLACK)(EX172)
6 3-019-848-11 HOLDER, CASSETTE(BLUE)
(EX172:AEP,FR,E,9E)
6 3-019-848-21 HOLDER, CASSETTE(GREEN)
(EX172:AEP,FR,E,9E)
6 3-019-848-31 HOLDER, CASSETTE(RED)
(EX172:AEP,FR,E,9E)
6 3-019-848-41 HOLDER, CASSETTE(SILVER)
(EX172:AEP,FR,E,9E)
7 3-019-947-01 BUTTON (ROTARY)(BLACK)(EX172)
7 3-019-947-11 BUTTON (ROTARY)(EXCEPT BLACK)(EX172)
8 3-019-945-01 BUTTON (MEGA BASS)(EX172)
8 3-019-853-01 KNOB (MEGA BASS)(EX170)
9 3-019-946-01 BUTTON (DOLBY)(EX172)
10 3-019-863-01 ACTUATOR (A)(EX170)
10 3-022-655-01 ACTUATOR (B)(EX172)
11 3-022-656-01 ACTUATOR (C)(EX172)
12 1-475-439-11 MEGA BASS UNIT (SWITCH) (EX170)
12 1-475-441-11 MEGA BASS UNIT (DOLBY) (EX172)
13 3-022-346-01 LENS
14 3-318-203-92 SCREW (B1.7X9), TAPPING
15 3-025-244-01 COVER(EX170)
15 3-025-245-01 COVER(EX172)
16 3-025-246-01 COVER(EX172)
6E : Central and South America.
9E : Country of origin is not shown.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
