Sony Walkman WM-EX170 Service Manual

— 5 —
2 Two screw [screw (M1.4), special head]
3 Motor (reel/capstan
)
1 Belt

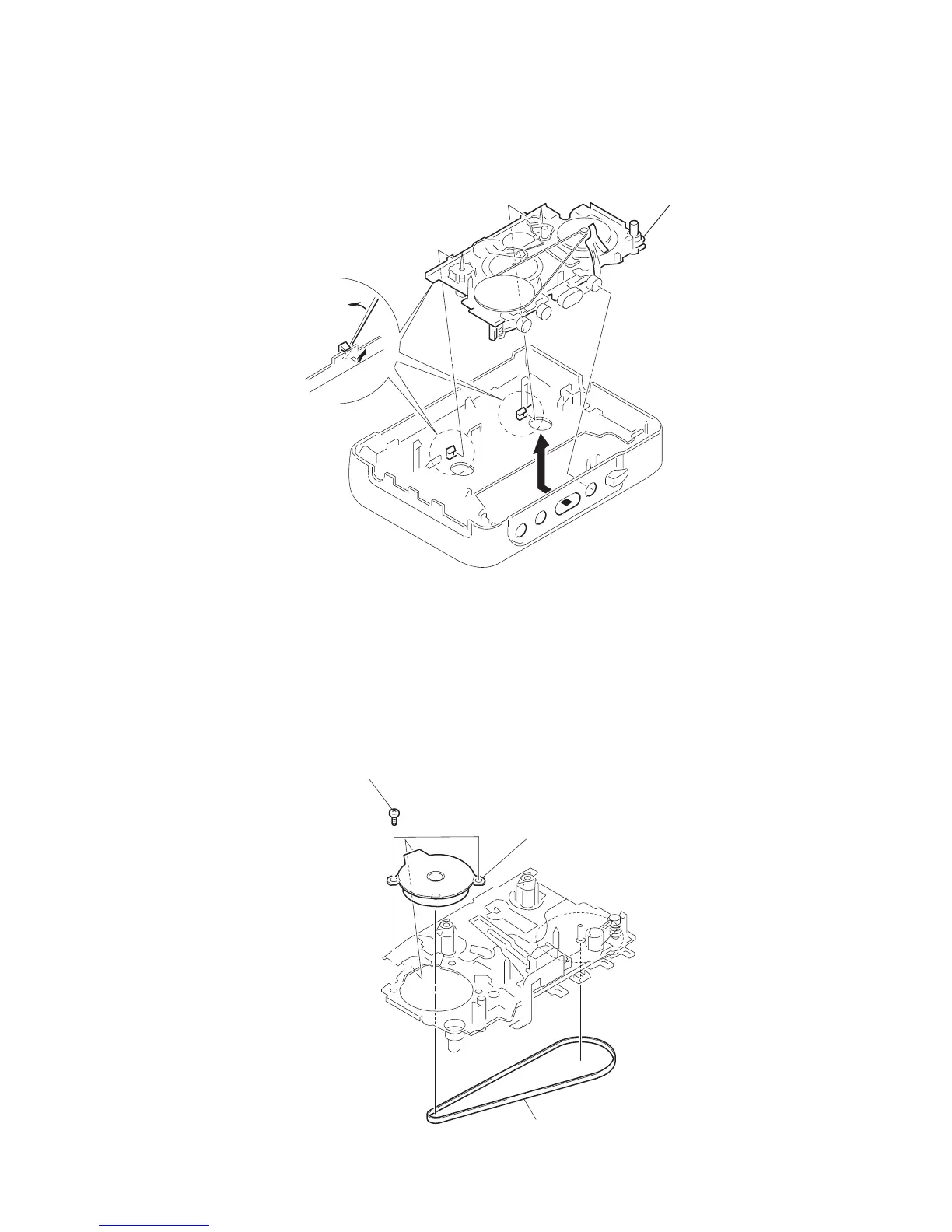

2-4. MECHANISM DECK
2-5. BELT, MOTOR (REEL/CAPSTAN)
1 Insert the precision screwdriver
(1.4 mm flat-blabe) in to the slit
and release two claws.
2 Remove the mechanism deck
in the direction of the arrow.
