Sony Walkman WM-EX170 Service Manual

— 4 —
5 Spring (torsion)
B
A
1
Open the cassette lid.
4 Cassette lid.

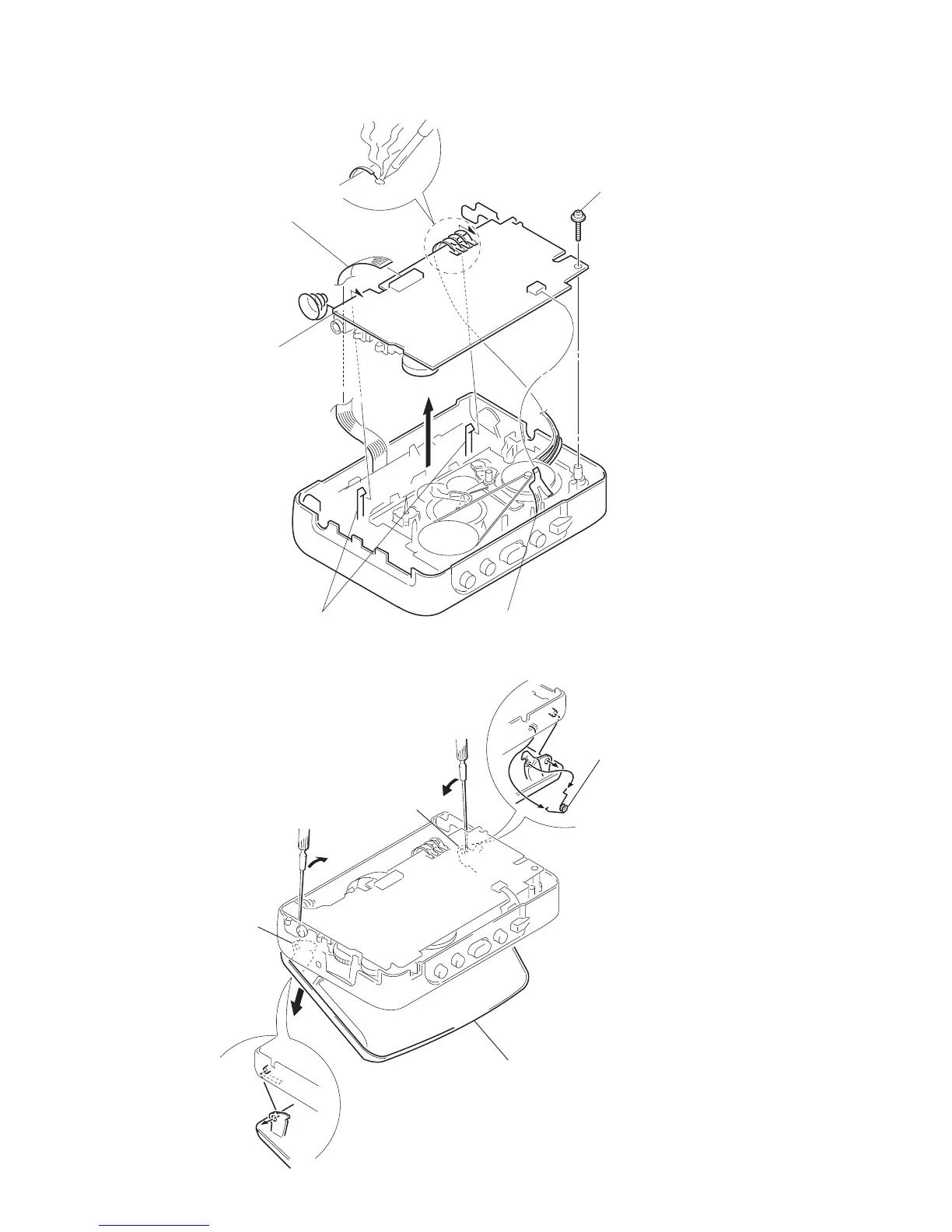

2-2. MAIN BOARD
2-3. CASSETTE LID
2 Insert a precision screwdriver
(1.4 mm flat-blade) vertically
into portion
A to release the
hinge plate.
3 Portion B to release the
hinge plate.
1 Head flexible board (CN301)
5 Two claws
6 MAIN board
3 Remove the four solders.
4 Screw (M1.4), toothed lock (WH
)
2 Flexible board (CN302)
