Sony Walkman WM-EX170 Service Manual

— 20 —

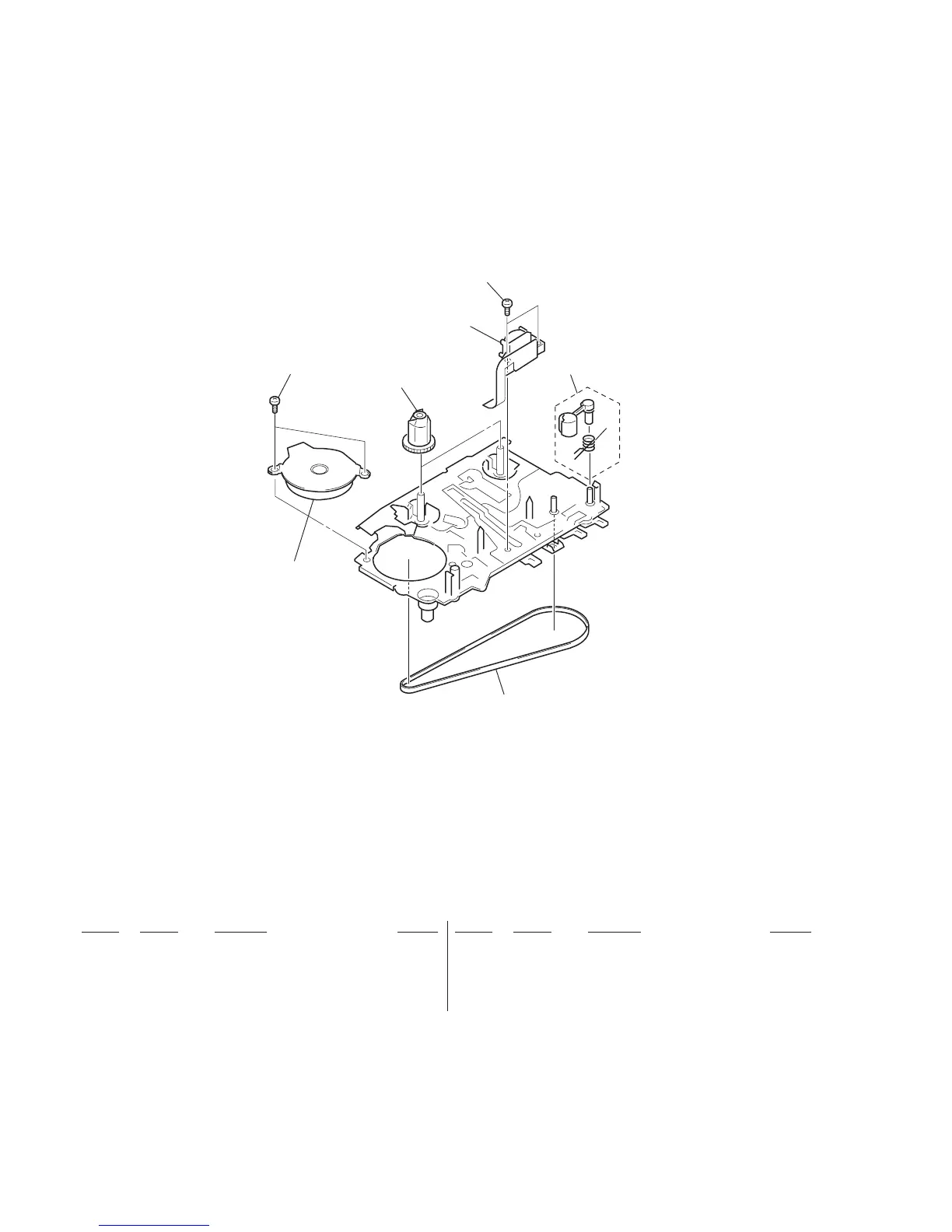

6-3. MECHANISM SECTION-1 (MT-WMEX170-114)
104
103
105
106
102
101
M901
HP901
101 3-013-560-11 BELT
102 3-703-816-31 SCREW (M1.4), SPECIAL HEAD
103 3-019-776-01 GEAR (REEL-S)
104 3-703-816-73 SCREW (M1.4), SPECIAL HEAD
105 X-3369-749-1 PINCH LEVER (N) ASSY
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
106 3-920-996-01 SPRING (PINCH N)
M901 1-763-073-11 MOTOR
HP901 1-500-517-11 HEAD, MAGNETIC (PLAYBACK)
