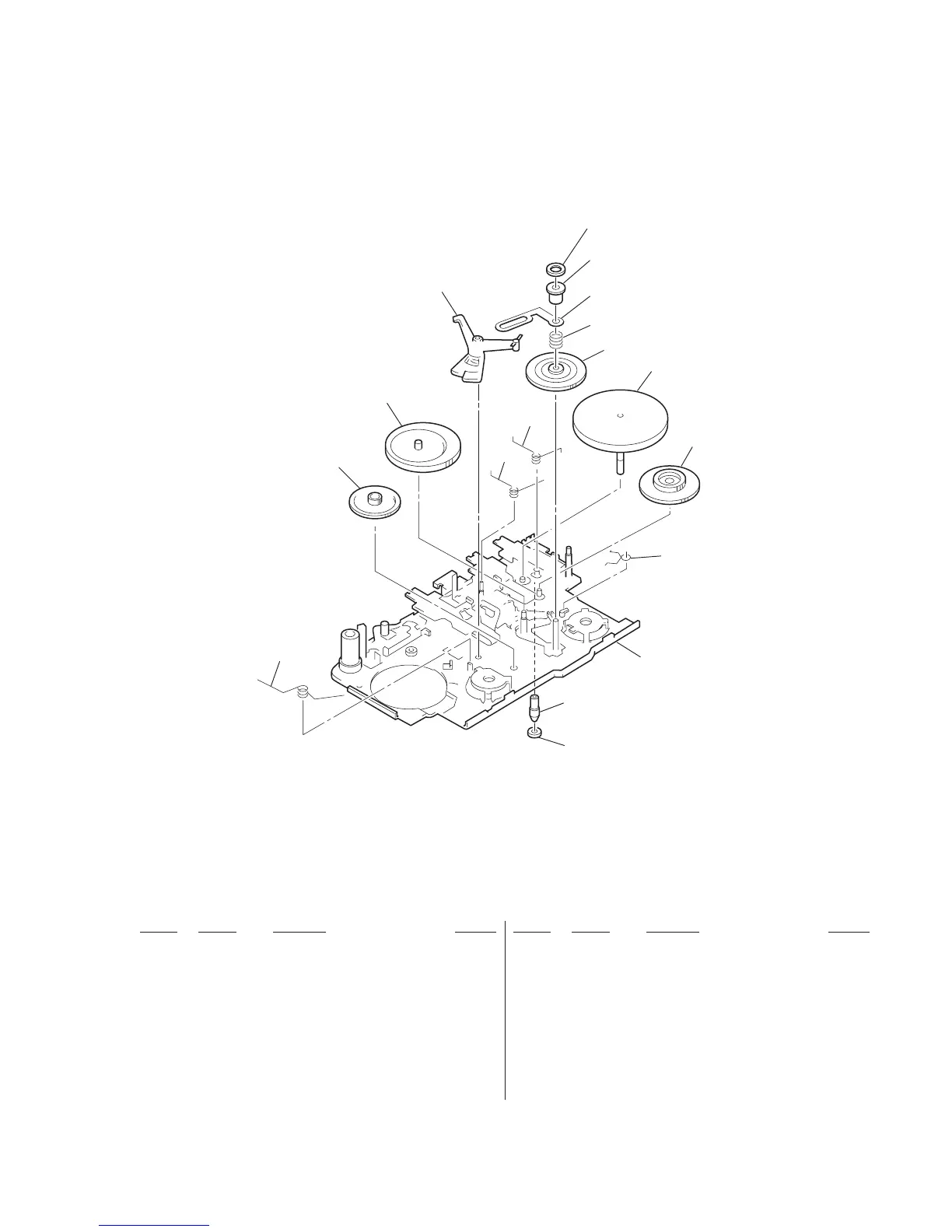

6-4. MECHANISM SECTION-2 (MT-WMEX170-114)
155
158
154
159
160
161
162
163
164
165
166
167
152
151
153
157
156
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
151 3-921-797-01 WASHER
152 3-921-003-01 BEARING
153 3-938-628-01 SPRING (PLAY-CP)
154 3-019-773-01 GEAR (AS)
155 X-3374-598-1 CLUTCH ASSY (S)
156 3-022-093-01 SPRING (FR-S)
157 3-022-094-01 SPRING (STOP-S)
158 3-019-777-01 LEVER (OW-S), DETECTION
159 3-728-091-01 WASHER, STOPPER
160 3-019-778-01 SLEEVE (MS)
161 3-921-335-01 WASHER, LEVER
162 3-920-990-01 SPRING (UD), COMPRESSION
163 3-019-774-01 GEAR (BS)
164 X-3369-747-1 WHEEL ASSY (SP), CAPSTAN
165 3-019-775-01 GEAR (DS)
166 3-014-709-01 SPRING (FR LEVER OW)
* 167 X-3374-601-1 CHASSIS ASSY (GL-OS)
To Next Page
