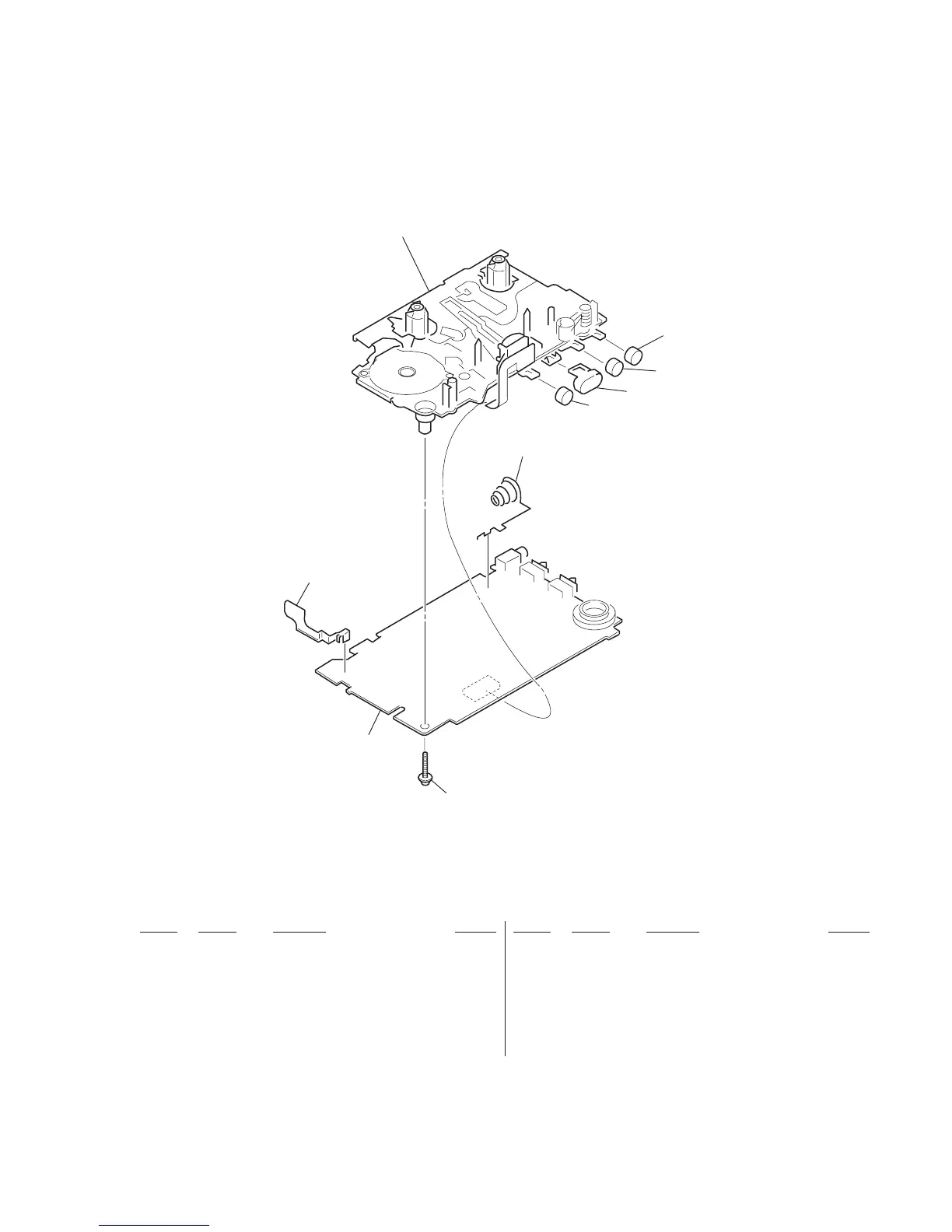

6-2. MAIN BOARD SECTION
51 3-015-285-01 SCREW (M1.4),TOOTHED LOCK (WH)
52 A-3021-030-A MAIN BOARD, COMPLETE(EX170:E,9E)
52 A-3021-008-A MAIN BOARD, COMPLETE(EX170:CND,AEP,EE)
52 A-3021-040-A MAIN BOARD, COMPLETE(EX172:E,6E,9E)
52 A-3021-041-A MAIN BOARD, COMPLETE(EX172:FR)
52 A-3021-039-A MAIN BOARD, COMPLETE(EX172:AEP,EE)
52 A-3021-031-A MAIN BOARD, COMPLETE(EX170:FR)
54
55
56
57
MT-WMEX170-114
58
53
52
51
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
53 3-019-950-01 TERMINAL (+),BATTERY
54 3-019-944-01 BUTTON (STOP)
55 3-019-943-01 BUTTON (REW)
56 3-019-941-01 BUTTON (PLAY)
57 3-019-942-01 BUTTON (FF)
58 3-018-977-01 TERMINAL (-),BATTERY
