Sony Walkman WM-FX491 Service Manual

– 5 –
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

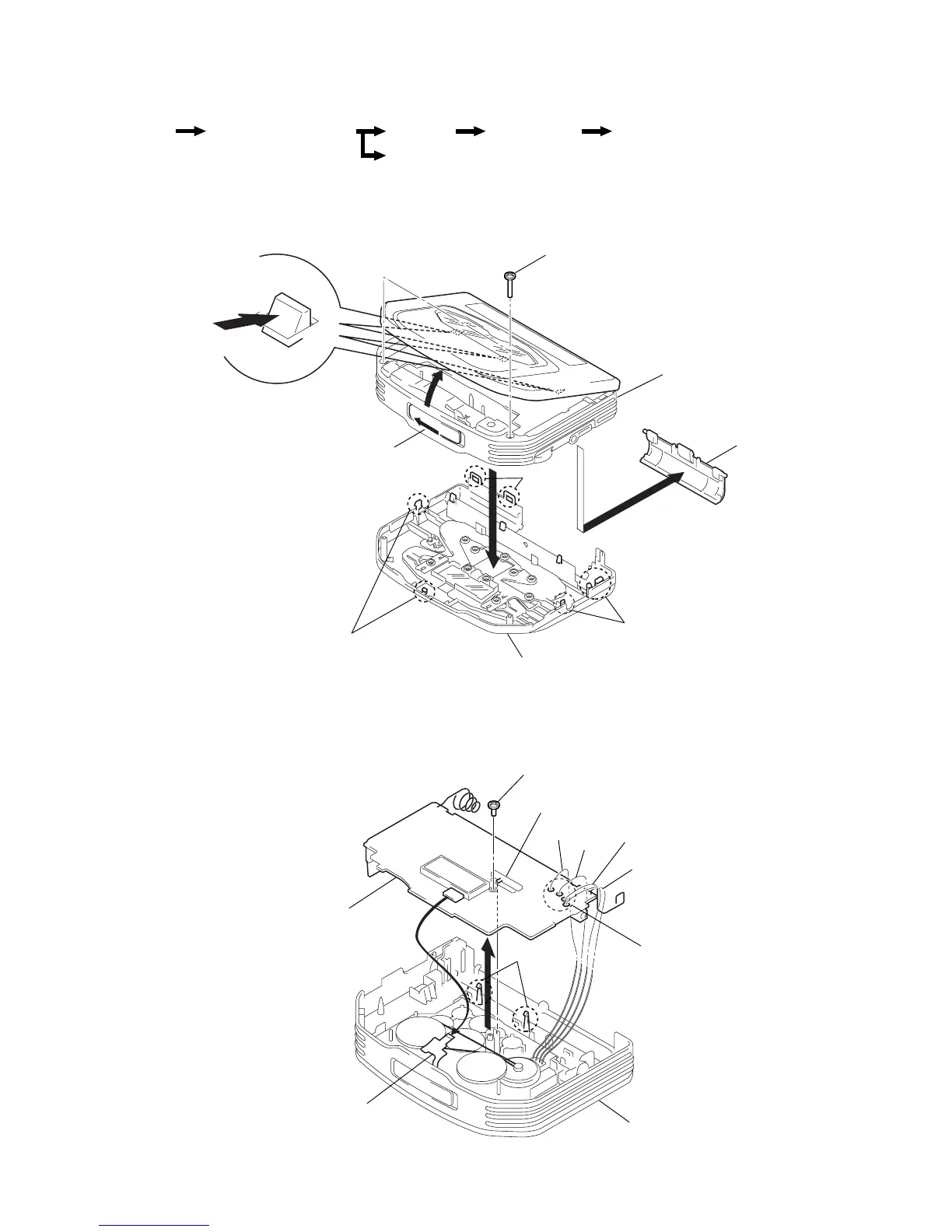

2-1. CABINET (FRONT) SUB ASSY
2-2. MAIN BOARD
z
The equipment can be removed using the following procedure.
Main boardCabinet (Front) sub ASSY
Holder sub ASSY, Cassette
Mechanism deck Belt, Motor (Capstan/reel) (M901)
Set
Cabinet (Front) sub ASSY
4 Screws (B1.7x12)
Lid, Battery cas
e
Center cabinet
2 OPEN
6 Claws
3
7
1
6 Claws
5 Claws
6 Claws
Main board
3 Screw
Black
Orange
White
Red
Switch (S601)
Head flexible board
5
2
1 Remove solde
r
Center cabinet
4 Claws
