Sony Walkman WM-FX491 Service Manual

– 7 –

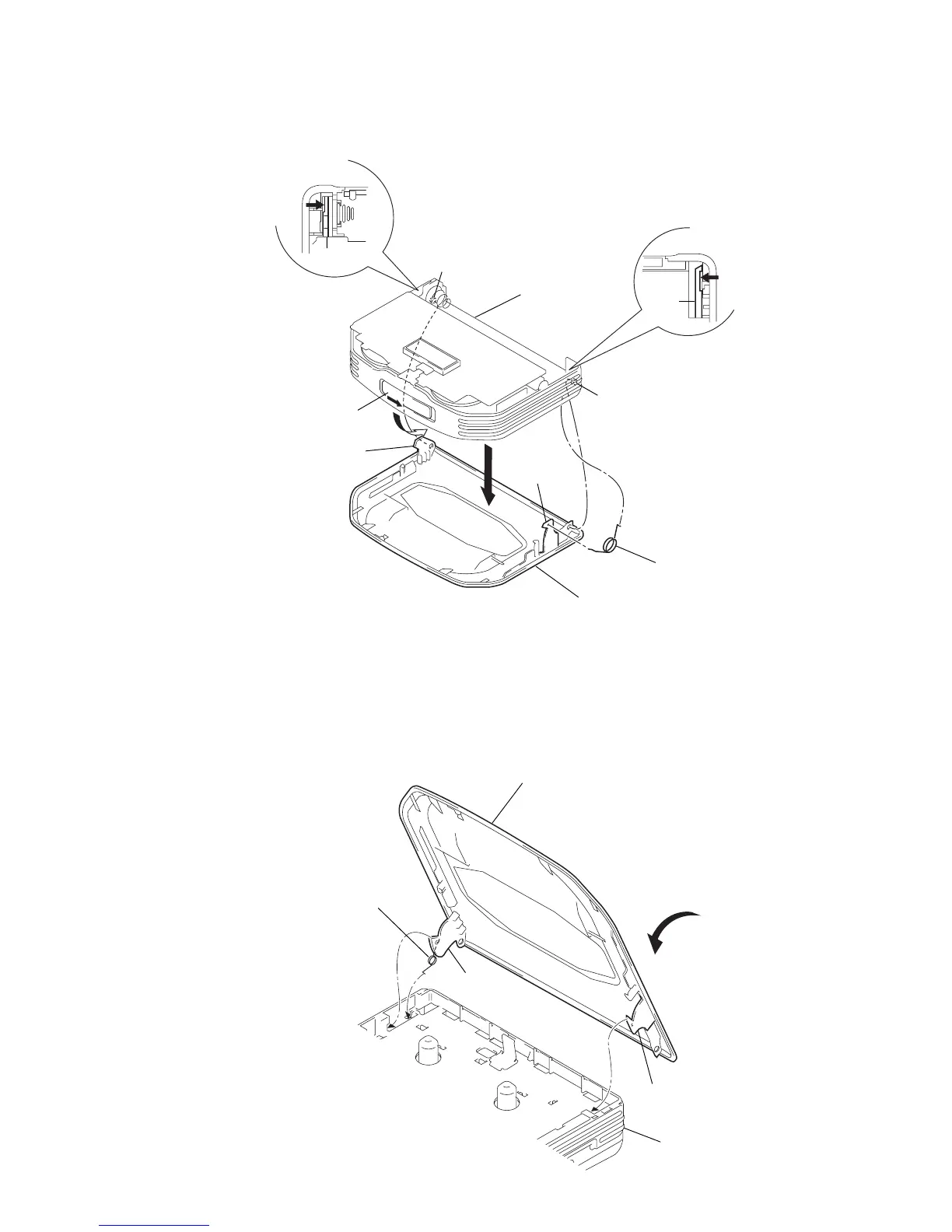

Holder sub ASSY, Cassette
Center cabinet
1 OPEN
5 Spring (lid up)
Hinge
Hinge
Hinge
2
4
4
Projection
Projection
Hinge
3 Move hinge away
from projection
3 Move hinge away
from projection
Holder sub ASSY, Cassette
Center cabinet
5 Spring (Lid up)
Hinge
4
1
3
2
Hinge
1 Insert the spring (Lid up) to the slot as shown in the figure.
23 Insert the hinge of the “Holder sub ASSY, Cassette”.
4 Close the “Holder sub ASSY, Cassette” then press it.
2-5. “HOLDER SUB ASSY, CASSETTE”
z
CAUTIONS DURING ASSEMBLY
