Sony Walkman WM-FX571 Service Manual

– 31 –
110
109
108
107
106
105
104
120
111
121
112
113
129
114
115
116
122
131
130
117
123
118
124
125
126
127
102
125
119
128
127
103
HP301
not supplied
M901
PM901
101
131

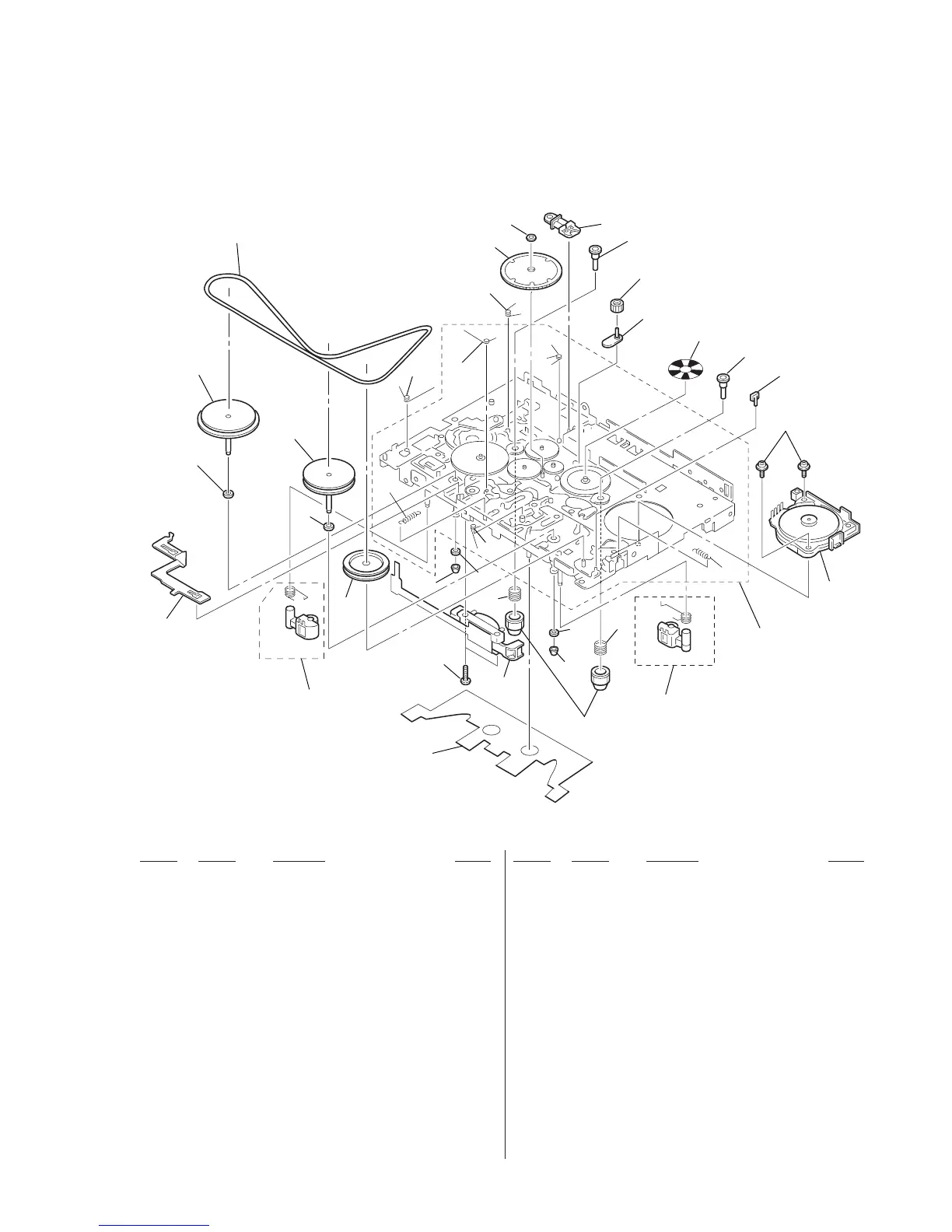

7-3. TAPE MECHANISM SECTION
(MF-WMFX551-125)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-011-277-01 COVER (B) (Y), MD
102 3-704-413-31 SCREW (M1.4X7.2)
103 X-3372-850-1 PINCH LEVER (N) ASSY
104 3-007-434-01 PULLEY (REVERSE)
105 3-007-428-01 WASHER (R)
106 X-3372-851-1 FLYWHEEL (R) ASSY
107 3-007-439-01 SLIDER (LOCK)
108 3-386-694-21 WASHER
109 X-3372-852-1 FLYWHEEL (N) ASSY
110 3-007-430-01 BELT
111 3-007-960-01 SPRING (EJECT) (Y), TORSION
112 3-007-436-01 SPRING (TRIGGER), TORSION
113 X-3372-848-1 CLUTCH ASSY (M)
114 3-016-696-01 GEAR (FRN)
115 X-3372-853-1 LEVER (FRG) ASSY
116 3-007-432-01 SHEET (R), REFLECTION
117 3-029-765-01 SCREW (M1.4), TOOTHED LOCK
118 X-3374-094-1 CHASSIS (S) ASSY (F)
119 3-019-710-01 SPRING (R), TORSION
120 3-007-458-01 SPRING (H/B), TENSION
121 3-019-709-01 SPRING (N), TORSION
122 3-007-454-01 SPRING (FR), TORSION
123 3-007-457-01 SPRING (TEN), TENSION
124 X-3372-849-1 PINCH LEVER (R) ASSY
125 3-010-954-01 SPRING (BT), COMPRESSION
126 3-918-943-01 WASHER, STOPPER
127 3-366-017-01 BUSHING (CAPSTAN)
128 3-007-429-01 WASHER (R), STOPPER
129 3-932-724-21 WASHER
* 130 3-010-272-01 BELT, RETAINER
131 3-010-274-02 TABLE, REEL
HP301 1-500-536-11 HEAD, MAGNETIC (PLAYBACK)
M901 1-698-885-11 MOTOR (CAPSTAN/REEL) (including PULLEY)
PM901 1-454-674-31 SOLENOID, PLUNGER
