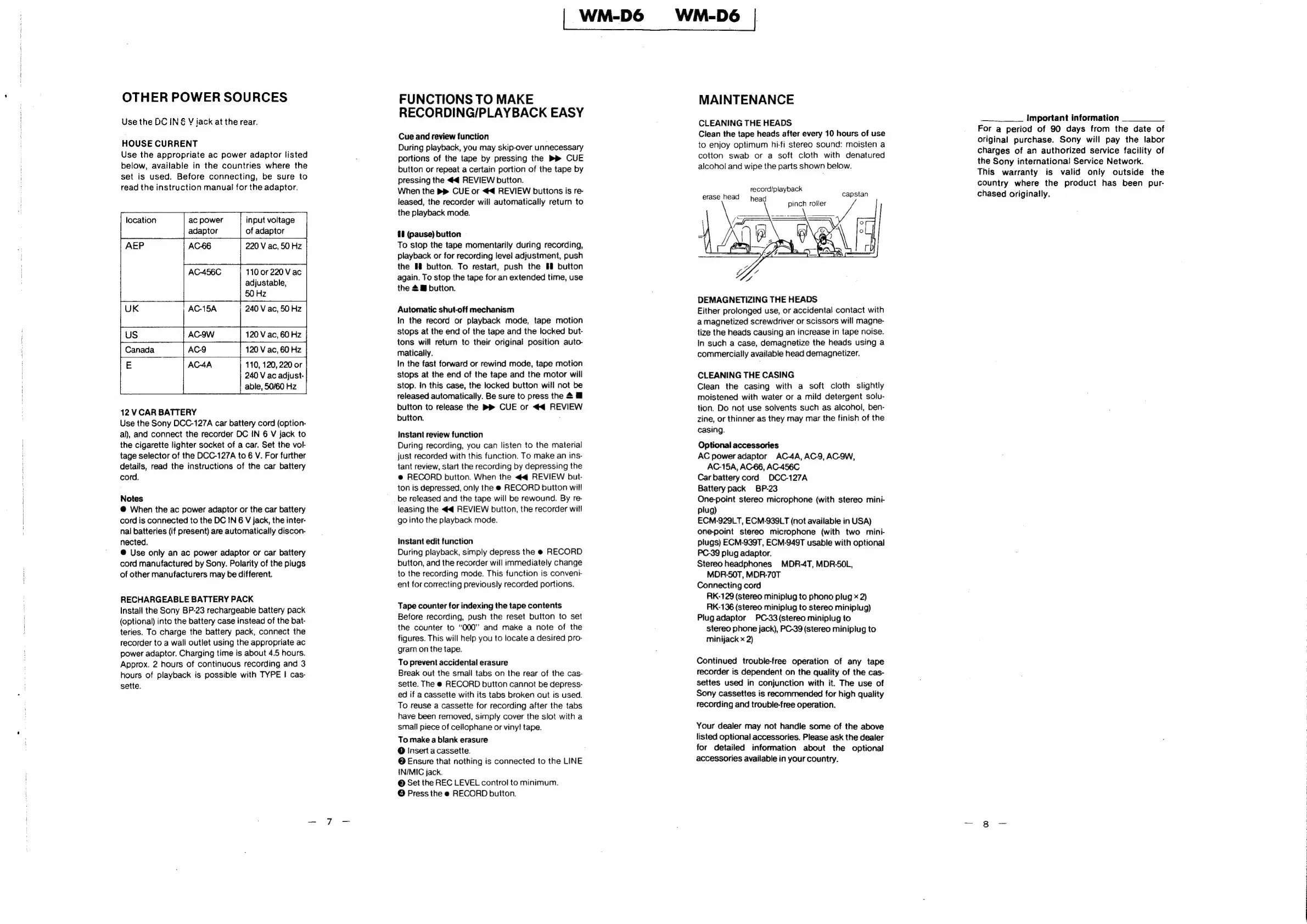

OTHER POWER SOURCES
Use the DC iN & V jack at the rear.
HOUSE CURRENT
Use the appropriate ac power adaptor listed
below, available in the countries where the
set is used. Before connecting, be sure to
read the instruction manual for the adaptor.
[ location ac power input voltage
adaptor of adaptor
AEP “| Ac66 220 V ac, 50 Hz
AC-456C 110 or 220 V ac
adjustable,
50 Hz
240 V ac, 50 Hz
UK AC-15A
US | ACW
ACQ
| AC4A
120 V ac, 60 Hz
120 V ac, 60 Hz
110, 120, 220 or
240 V ac adjust-
able, 50/60 Hz
Canada
E
12 V CAR BATTERY
Use the Sony DCC-127A car battery cord (option-
al), and connect the recorder DC IN 6 V jack to
the cigarette lighter socket of a car. Set the vol-
tage selector of the DCC-127A to 6 V. For further
details, read the instructions of the car battery
cord.
Notes
@ When the ac power adaptor or the car battery
cord is connected to the DC IN 6 V jack, the inter-
nal batteries (if present) are automatically discon-
nected.
@ Use only an ac power adaptor or car battery
cord manufactured by Sony. Polarity of the plugs
of other manufacturers may be different.
RECHARGEABLE BATTERY PACK
Install the Sony BP-23 rechargeable battery pack
(optional) into the battery case instead of the bat-
teries. To charge the battery pack, connect the
recorder to a wall outlet using the appropriate ac
power adaptor. Charging time is about 4.5 hours.
Approx. 2 hours of continuous recording and 3
hours of playback is possible with TYPE | cas-
sette.
| WM-D6 _WM-D6 |
FUNCTIONS TO MAKE
RECORDING/PLAYBACK EASY
Cue and review function
During playback, you may skip-over unnecessary
portions of the tape by pressing the PR CUE
button or repeat a certain portion of the tape by
pressing the #4 REVIEW button.
When the Pb CUE or 44 REVIEW buttons is re-
leased, the recorder will automatically return to
the playback mode.
41 (pause) button
To stop the tape momentarily during recording,
playback or for recording level adjustment, push
the && button. To restart, push the Hl button
again. To stop the tape for an extended time, use
the 2 button.
Automatic shut-off mechanism
In the record or playback mode, tape motion
stops at the end of the tape and the locked but-
tons will return to their original position auto-
matically.
In the fast forward or rewind mode, tape motion
stops at the end of the tape and the motor will
stop. In this case, the locked button will not be
released automatically. Be sure to press the 2 @
button to release the B® CUE or <4 REVIEW
button.
Instant review function
During recording, you can listen to the material
just recorded with this function. To make an ins-
tant review, start the recording by depressing the
@ RECORD button. When the <4 REVIEW but-
ton is depressed, only the e RECORD button will
be released and the tape will be rewound. By re-
leasing the <4 REVIEW button, the recorder will
go into the playback mode.
Instant edit function
During playback, simply depress the e RECORD
button, and the recorder will immediately change
to the recording mode. This function is conveni-
ent for correcting previously recorded portions.
Tape counter for indexing the tape contents
Before recording, push the reset button to set
the counter to “000” and make a note of the
figures. This will help you to locate a desired pro-
gram on the tape.
To prevent accidental erasure
Break out the smail tabs on the rear of the cas-
sette. The e RECORD button cannot be depress-
ed if a cassette with its tabs broken out is used.
To reuse a cassette for recording after the tabs
have been removed, simply cover the slot with a
small piece of cellophane or viny! tape.
To make a blank erasure
@ Insert a cassette.
@ Ensure that nothing is connected to the LINE
IN/MIC jack.
© Set the REC LEVEL control to minimum.
@ Press the e RECORD button.
MAINTENANCE
CLEANING THE HEADS
Clean the tape heads after every 10 hours of use
to enjoy optimum hi-fi stereo sound: moisten a
cotton swab or a soft cloth with denatured
alcohol and wipe the parts shown below.
record/playback
erase
head head
capstan
pinch roller
DEMAGNETIZING THE HEADS
Either prolonged use, or accidental contact with
amagnetized screwdriver or scissors will magne-
tize the heads causing an increase in tape noise.
In such a case, demagnetize the heads using a
commercially available head demagnetizer.
CLEANING THE CASING
Clean the casing with a soft cloth slightly
moistened with water or a mild detergent solu-
tion. Do not use solvents such as alcohol, ben-
zine, or thinner as they may mar the finish of the
casing.
Optional accessories
AC power adaptor AC-4A, AC-9, AC-9W,
AC-15A, AC-66, AC-456C
Car battery cord) DCC-127A
Battery pack BP-23
One-point stereo microphone (with stereo mini-
plug)
ECM-929LT, ECM-939LT (not available in USA)
one-point stereo microphone (with two mini-
plugs) ECM-939T, ECM-949T usable with optional
PC-39 plug adaptor.
Stereo headphones MDR-4T, MDR-50L,
MDR-50T, MDR-70T
Connecting cord
RK-129 (stereo miniplug to phono plug * 2)
RK-136 (stereo miniplug to stereo miniplug)
Plug adaptor PC-33(stereo miniplug to
stereo phone jack), PC-39 (stereo miniplug to
minijack x 2)
Continued trouble-free operation of any tape
recorder is dependent on the quality of the cas-
settes used in conjunction with it. The use of
Sony cassettes is recommended for high quality
recording and trouble-free operation.
Your dealer may not handle some of the above
listed optional accessories. Please ask the dealer
for detailed information about the optional
accessories available in your country.
Important information. —=—
For a period of 90 days from the date of
original purchase. Sony will pay the labor
charges of an authorized service facility of
the Sony international Service Network.
This warranty is valid only outside the
country where the product has been pur-
chased originally.
