SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
— 24 —
•Abbreviation
CH: Chinese model
KR: Korean model
JE: Tourist model

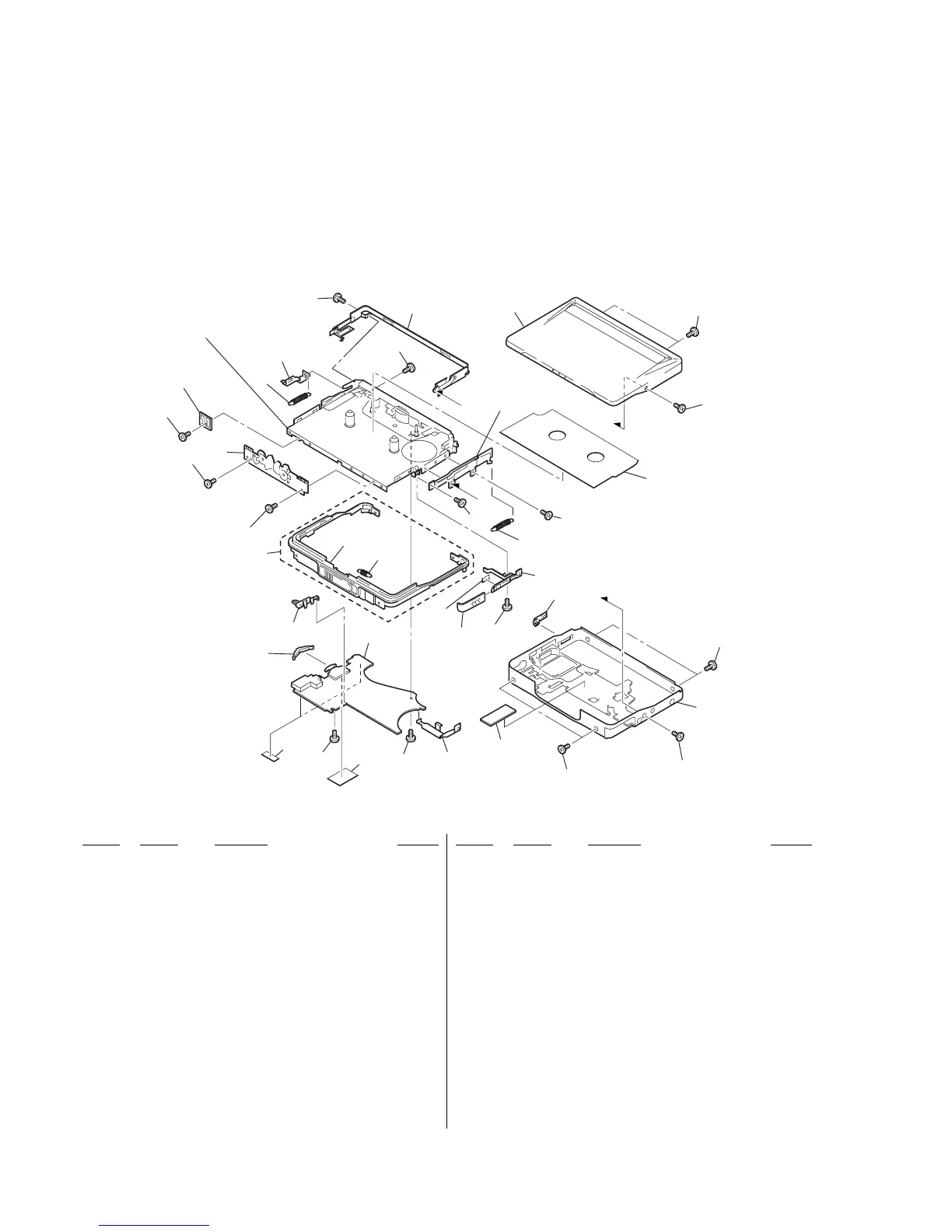

7-1. CABINET BLOCK
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 3-029-213-01 TERMINAL BOARD, BATTERY
2 3-345-648-71 SCREW (M1.4), TOOTHED LOCK
3 3-375-114-41 SCREW
4 3-038-056-01 TERMINAL BOARD (MINUS)
* 5 A-3021-341-A MAIN BOARD, COMPLETE
6 3-221-642-01 LID, BATTERY CASE
7 3-704-197-01 SCREW(M1.4), SPECIAL HEAD
8 X-3377-726-1 TERMINAL BOARD ASSY
9 A-3052-253-A ORNAMENT (OPEN) BLOCK ASSY
10 3-031-460-01 SHEET (BT)
11 4-963-883-51 SCREW (M1.4), PRECISION PAN
12 3-029-220-11 SPRING, TENSION
13 3-365-630-41 SCREW (M1.4)
14 X-3377-717-1 BRACKET ASSY
15 X-3379-425-1 LEVER (B) ASSY, LOCK
16 3-366-892-01 SCREW (M1.4)
17 X-3379-426-1 BRACKET (CASSETTE) ASSY
18 A-3052-254-A LID BLOCK ASSY, CASSETTE
19 4-218-229-25 SCREW (1.4), MI
20 3-221-643-01 COVER, MD (JE)
20 3-221-643-11 COVER, MD (AEP)
20 3-221-643-21 COVER, MD (US,CH,KR)
21 4-225-239-01 KNOB (JOG)
22 A-3052-252-A CASE BLOCK ASSY
23 4-218-229-09 SCREW (1.4), MI
24 3-221-637-01 KNOB (VOL)
25 3-221-626-01 SPRING, TENSION
26 3-221-765-01 HOOK, SPRING
27 3-221-627-01 SPRING, TENSION
28 3-224-837-01 SHEET (ATS)
29 3-224-466-01 SHEET (PC BOARD)
30 3-224-465-01 SHEET (CASE)
S704 1-762-553-11 SWITCH, LEAF
10
28
1
2
3
11
4
3
5
6
8
7
7
7
15
25
26
27
21
9
16
14
13
17
18
19
19
19
19
20
24
22
23
A
A
B
B
11
12
MT-WMEX2000-162
S704
not
supplied
29
30
Ver 1.2 2003. 11
