SECTION 6
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

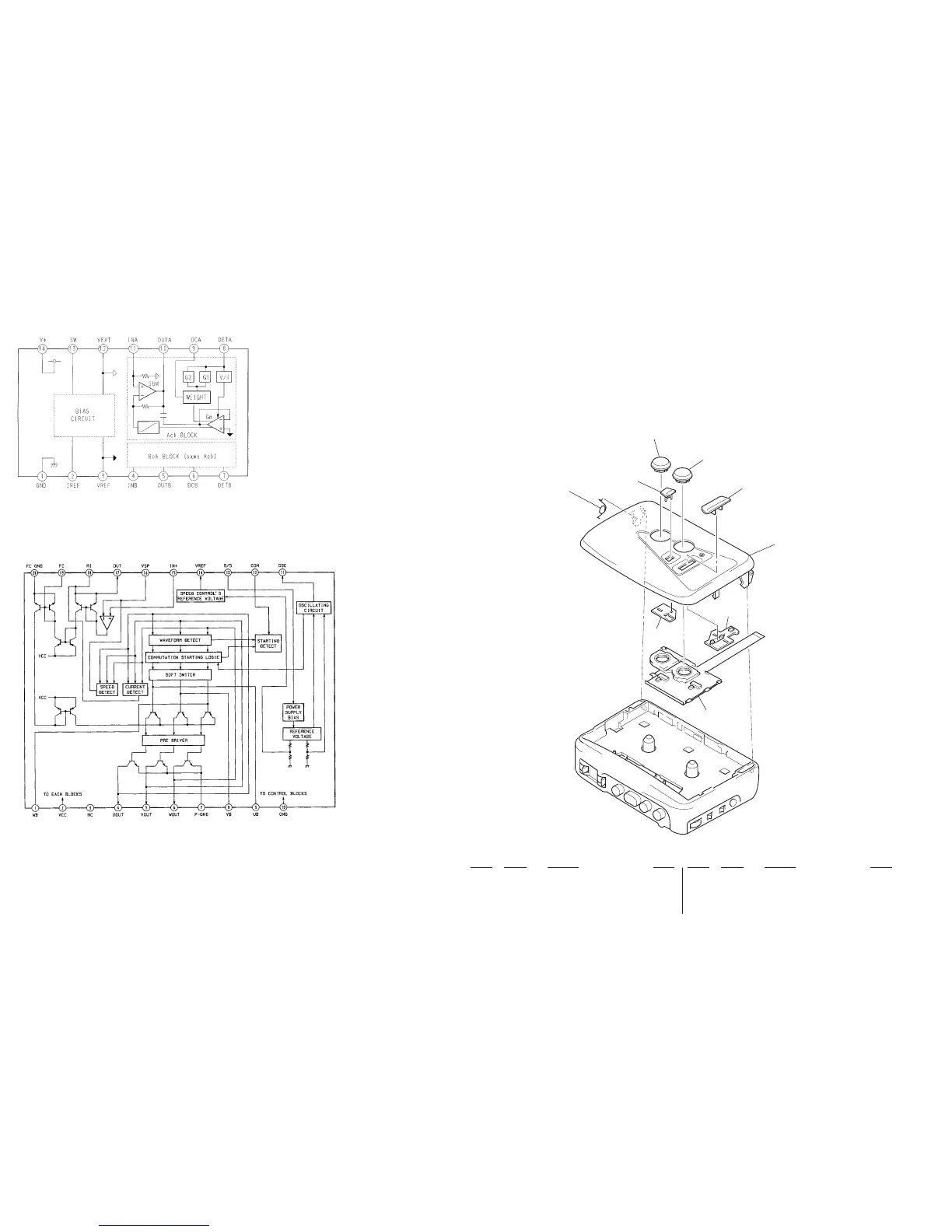

(1) CASSETTE HOLDER SECTION
• IC Block Diagrams
IC331 NJM2185AV-TE2
IC601 LB1979V-TLM
1 1-475-441-11 MEGA BASS UNIT (DOLBY)
2 3-019-937-01 ACTUATOR (B)
3 3-019-938-01 ACTUATOR (C)
4 3-007-012-01 SPRING (TORSION)
5 X-3375-841-1 KNOB ASSY, DOLBY
6 3-019-857-11 KNOB (ROTARY)
7 X-3375-840-1 KNOB ASSY, MEGABASS
8 3-019-849-01 HOLDER, CASSETTE (for BLACK)
8 3-019-849-11 HOLDER, CASSETTE (for BLUE)
4
5
6
6
7
8
2
1
3
