Sony WM-EX372 User Manual

– 4 –

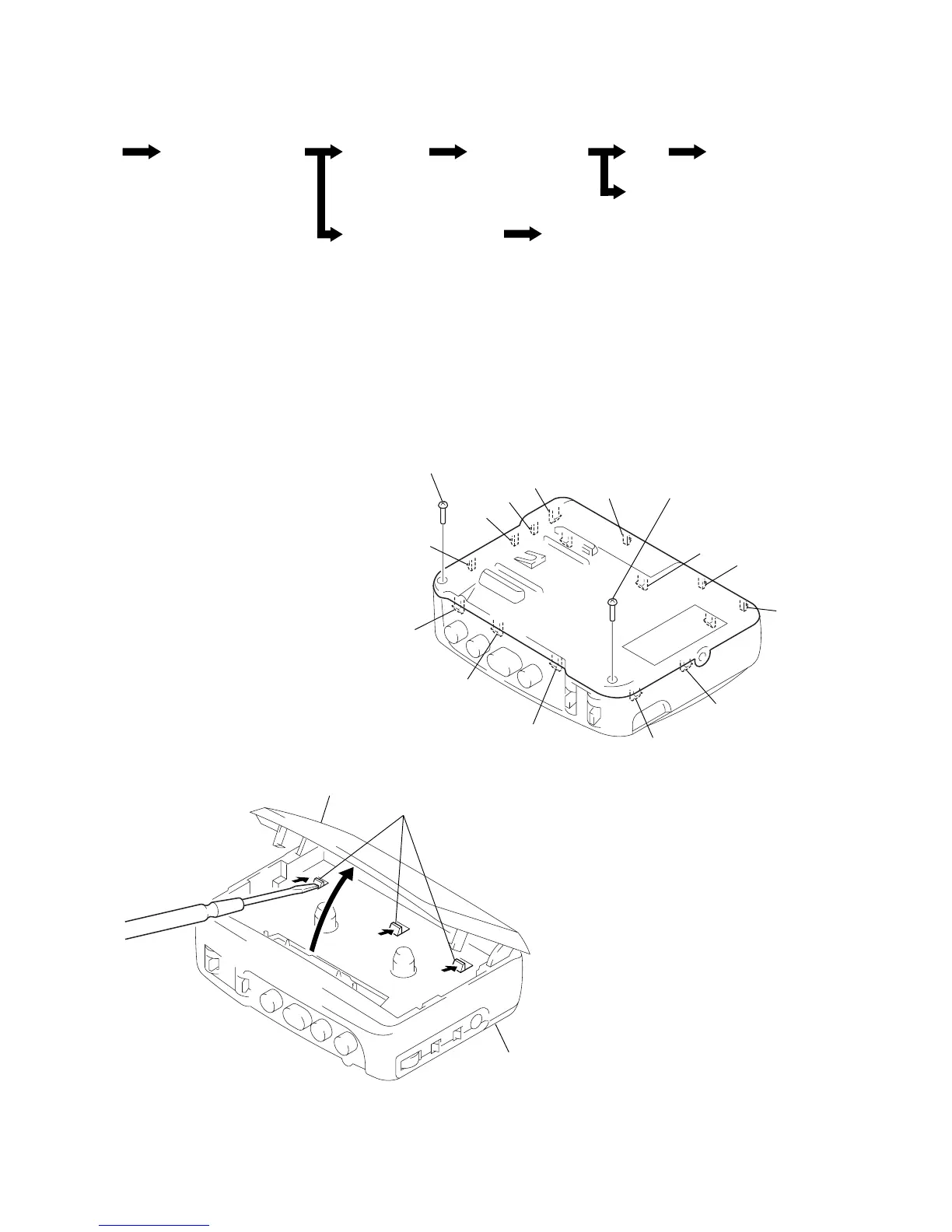

2 Insert the precision screw driver (1.4 mm flat-blade) in to the slit at claw A and release the claw.
3 Remove the cabinet (rear) ass’y. (Release all claw B to N in alphabetical order.)
Note: Follow the disassembly procedure in the numerical order given.
SECTION 2
DISASSEMBLY
CABINET (REAR) ASS’Y
• This set can be disassembled in the order shown below.
CABINET (REAR) ASS’Y MECHANISM DECK
(MT-WMEX372-114)
BELT
MAGNETIC HEAD
(HP901)
MOTO
R
(M901)
MEGA BASS UNIT (DOLBY)
MAIN BOARD
CASSETTE HOLDER ASS’Y
SET
1 screw (B1.7 × 9)
1 screw (B1.7 × 9)
K
L
M
N
B
C
D
E
F
G
H
I
J
cassette holder
cabinet (rear) ass’
y
A
