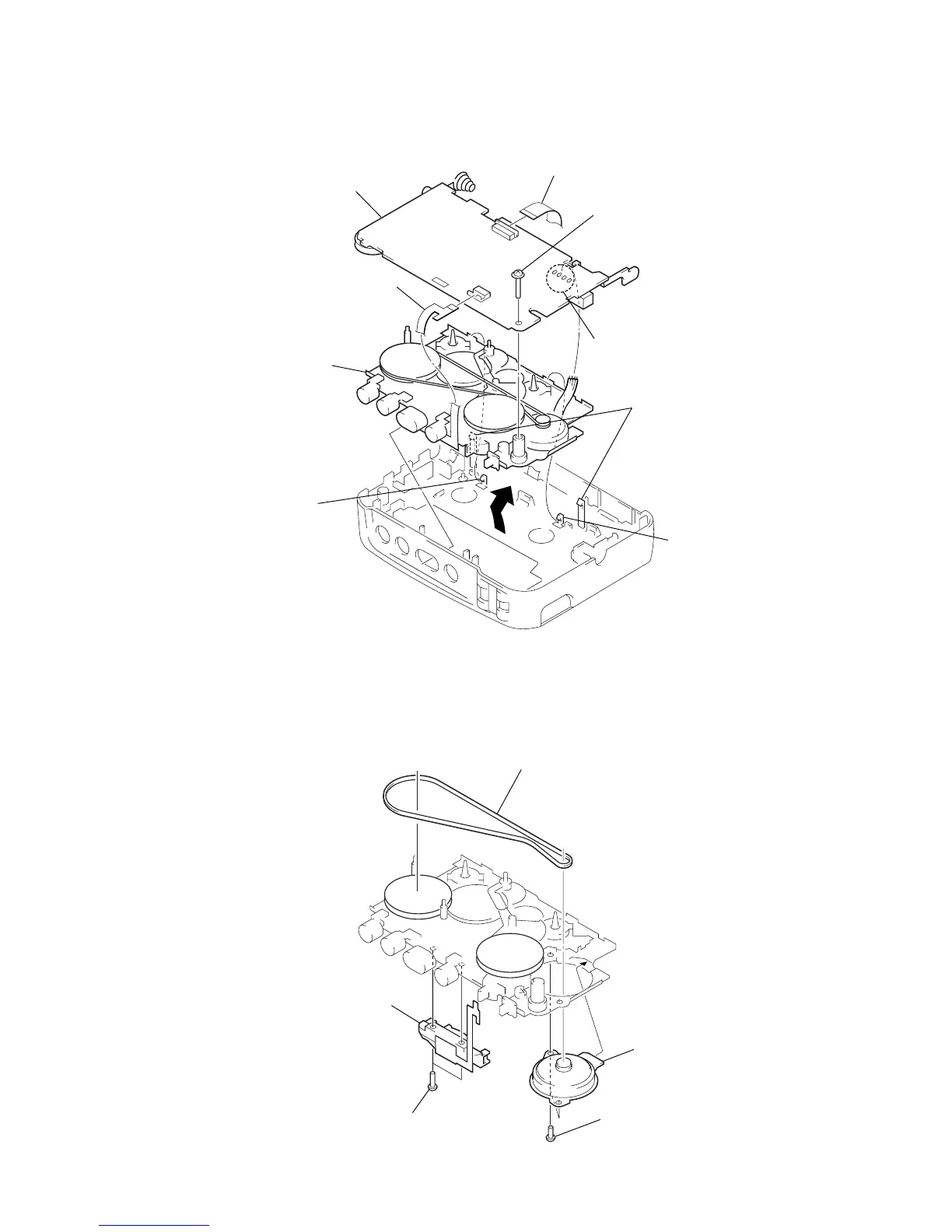

MAIN BOARD, MECHANISM DECK (MT-WMEX372-114)
BELT, MOTOR (M901), MAGNETIC HEAD (HP901)
6 main board
3 head flexible board
(CN301)
8 Remove the mechanism
deck (MT-WMEX372-114)
to direction of the arrow.
7 claw
7 claw
5 two claws
1 Remove four solders of
motor lead (M901).
4 toothed lock (WH) scre
w
(M1.4)
2 flexible board (CN302)
1 belt
3 motor (M901)
2 two special head screw
s
(M1.4)
4 two screws
5 magnetic head
(HP901)
