5
WM-EX422
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

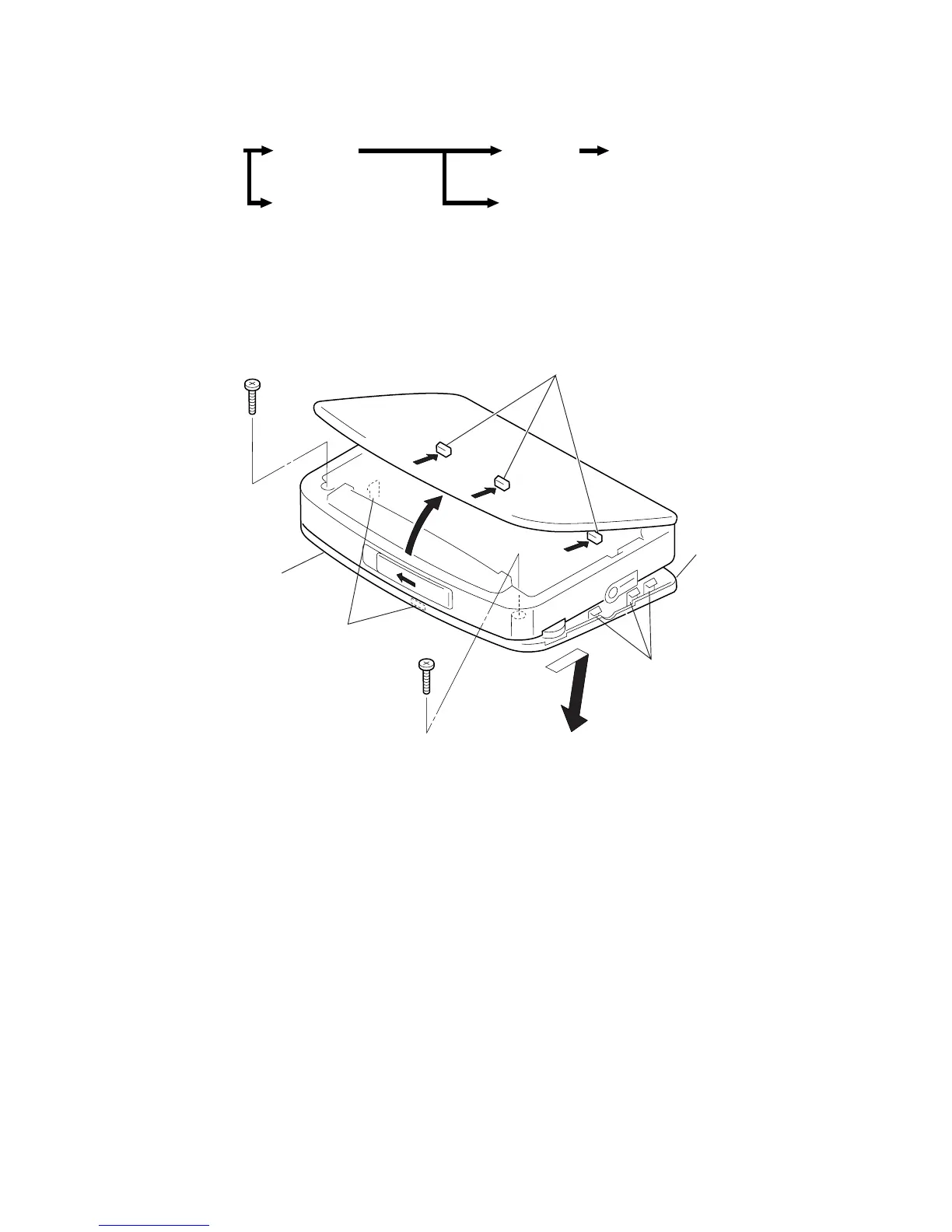

3-1. CABINET (FRONT) SUB ASSY
z
The equipment can be removed using the following procedure.
MAIN boardCabinet center
Cassette holder sub assy
Mechanism deck
Set
Cabinet (front) sub assy
8
Cabinet (front) sub ass
y
6
Claws
5
Claws
7
1
2
Screw (B 1.7
×
9), tapping
4
Claws
3
Screw (B 1.7
×
9), tapping
Cabinet center
