Sony WM-EX422 User Manual

14
WM-EX422
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

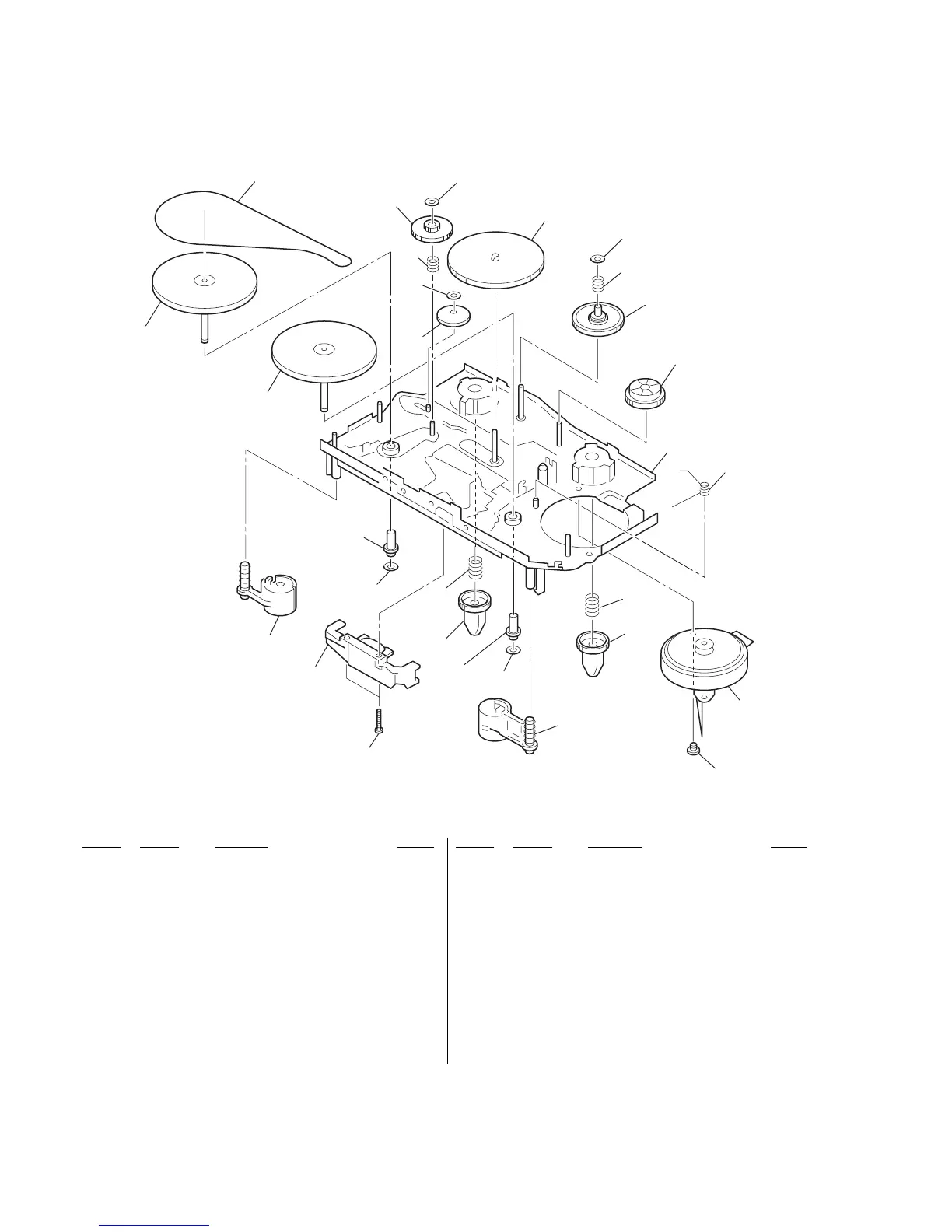

6-2. MECHANISM DECK SECTION
(MF-WMFX495-147)
103
102
102
104
117
106
105
117
107
108
109
110
120
111
112
118
119
M601
113
114
116
116
119
118
115
101
HP601
not supplied
not supplied
101 X-3375-020-2 PINCH LEVER (N-F) ASSY
102 X-3372-619-3 WHEEL ASSY (NP), CAPSTAN
103 3-354-868-01 BELT
104 3-021-950-02 GEAR (DF)
105 3-021-982-01 SPRING (MODE), COMPRESSION
106 X-3375-024-4 CLUTCH ASSY (F)
107 3-021-951-02 GEAR (CAM)
108 3-348-953-21 WASHER
109 3-021-979-02 SPRING (UDF), COMPRESSION
110 3-021-949-01 GEAR (BF)
111 X-3375-022-7 CHASSIS ASSY (F)
112 3-021-974-04 SPRING (HEAD BASE)
113 3-704-197-01 SCREW (M1.4), SPECIAL HEAD
114 X-3375-021-3 PINCH LEVER (R-F) ASSY
115 3-704-197-71 SCREW (M1.4)
116 3-921-797-01 WASHER
117 3-338-647-31 WASHER (1.0-2.5)
118 3-022-100-01 SPRING (B.T.), COMPRESSION
119 3-024-223-11 GEAR (REEL-2)
120 X-3375-268-1 GEAR (AF-SV) ASSY
HP601 1-500-648-11 HEAD, MAGNETIC (PLAYBACK)
M601 1-763-798-11 MOTOR, DC (CAPSTAN/REEL)
