Sony WM-EX655 User Manual

– 5 –

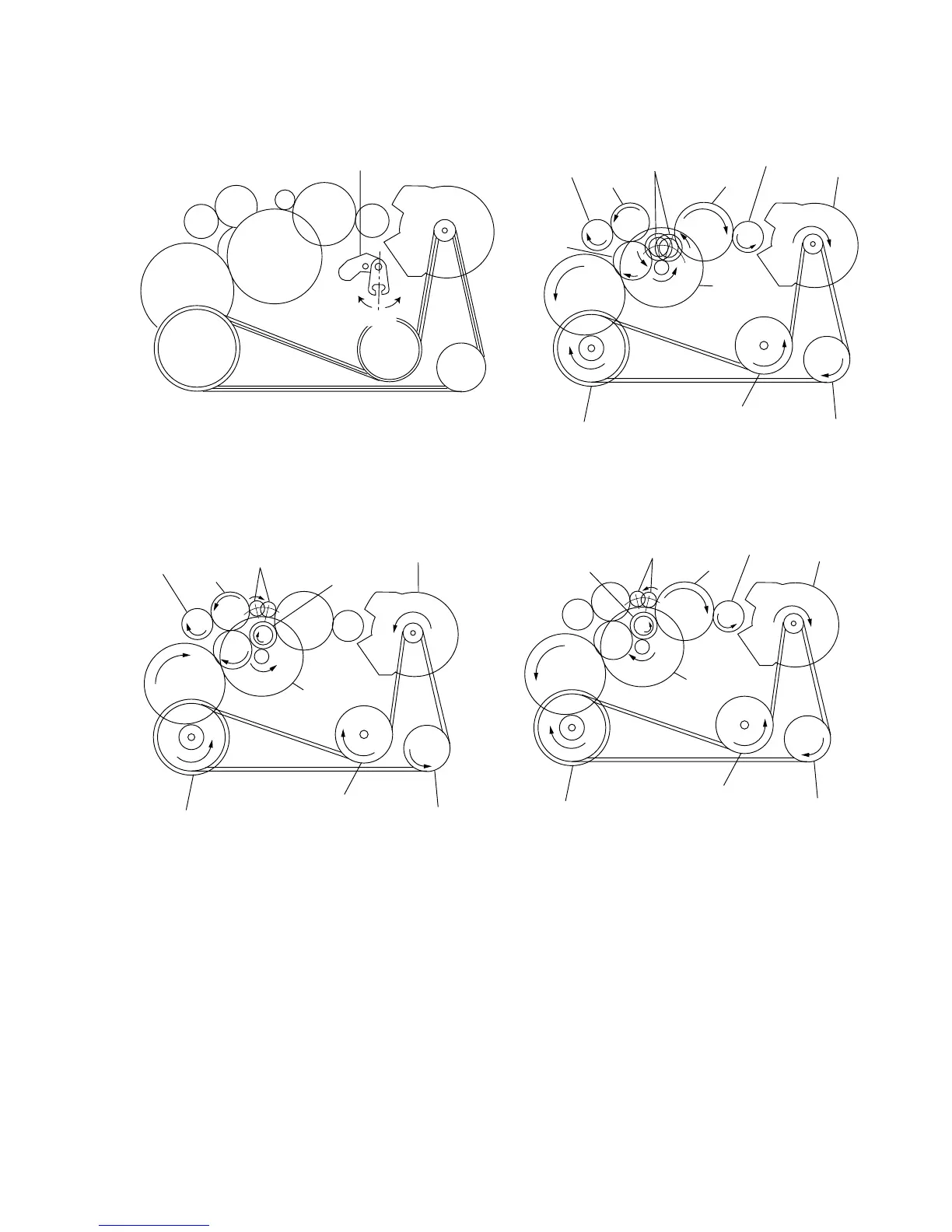

LEVER (SW )
Rortation system during FF.
Rortation system during REW.
Rortation system during PLAY.
side R
lever (SW)
side F
center
Gear (FR)
(FF : Left side)
Gear (Y)
Gear (NR)
Motor pully
Clutch Assy (M)
Gear (Reel)
(T side)
Gear (TB)
Flywheel (N) Assy
Flywheel (R) Assy
Pully (Reverse
)
Gear (Reel)
(T side)
Gear (Reel)
(S side)
Gear (TA)
Gear (TB)
Gear (S)
Gear (Y)
Gear (NR)
(REV : Left side/
FWD : Right side)
Motor Pully
Flywheel (N) Assy
Flywheel (R) Assy
Pully (Reverse)
Clutch
Assy (M)
Gear (Reel)
(S side)
Gear (FR)
(REW : Right side)
Gear (S)
Gear (Y)
Gear (NR)
Motor Pully
Clutch Assy (M)
Flywheel (N) Assy
Flywheel (R) Assy
Pully (Reverse)
