– 7 – – 8 – – 10 –– 9 –
2 Screw (IB lock)
2 Screw (IB lock)
Cassette lide assy
1 Open knob
3
Ornament, reel
Mechanism dec
k
1
3
2
4

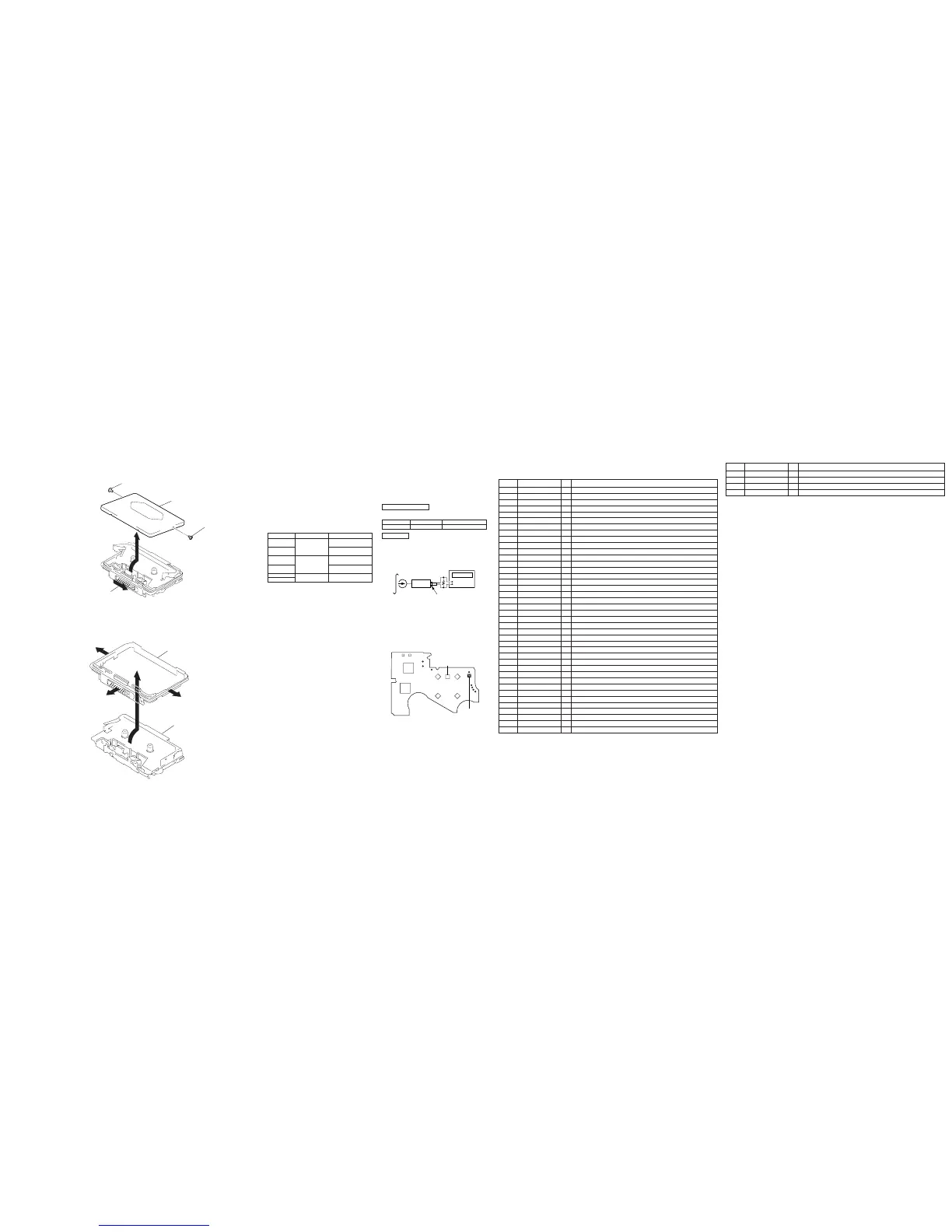

3-3. CASSETTE LID ASSY REMOVAL
3-4. MECHANISM DECK REMOVAL
4-2. ELECTRICAL ADJUSTMENTS
PRECAUTION
1. Specified voltage : 1.3V.
2. Mode setting
DOLBY NR : OFF
SOUND switch : NORM
AVLS : OFF
CASSETTE SECTION
Test Tape
Type Signal Used for
WS-48A 3kHz, 0dB Tape Speed Adjustment
0dB = 0.775V
Tape Speed Adjustment
Procedure :
1. Play back WS-48A (tape center part) in the FWD state and ad-
just RV601 so that the frequency counter reading becomes 3,000
± 30Hz.
2. Play back WS-48A (tape center) in the REV state.
Check that the frequency counter reading is within 1.5% of the
reading of step 1.
Adjustment Point :
[AUDIO BOARD] – Side A –
SECTION 4
ADJUSTMENTS
4-1. MECHANICAL ADJUSTMENTS
PRECAUTION
1. Before adjusting, clean the following parts with a piece of cot-
ton moistened with alcohol.
playback head pinch roller
rubber belt capstan
2. Demagnetize the playback head using a head demagnetizer.
3. Do not use a magnetized screwdriver for adjustments.
4. After adjusting, apply screw-locking compound to the adjusted
parts.
5. Unless specified otherwise, use a specified voltage (1.3V) to
perform the adjustments.
Torque Measurement
Torque Torque Meter Meter Reading
FWD
16 to 30 g • cm
CQ-102C
(0.23 to 0.41 oz• inch)
FWD 0.7 to 2.0 g • cm
back tension (0.01 to 0.027 oz• inch)
REV
16 to 30 g • cm
CQ-102RC
(0.23 to 0.41 oz• inch)
REV 0.7 to 2.0 g • cm
back tension (0.01 to 0.027 oz• inch)
FF
CQ-201B
more than 40g • cm
REW (more than 0.56 oz• inch)
set
test tape
WS-48A
(3kHz, 0dB)
frequency counter
+
–
J701 (headphones)
16
Ω
IC701
S704
(
p )
S705
(
9( )
S706
(FF)
S707
(REW )
RV601
S708
(FUNCTION)
IC301
Pin No. Pin name I/O Description
1 M.CTL O Motor control output.
2 M.DIR O Motor rotating direction output.
3 M.BRK O Motor brake control output.
4 RESET I Reset terminal. “H” : Reset
5 TEST1 – Not used (Connect to ground).
6 TEST2 – Not used (Connect to ground).
7 TEST3 – Not used (Connect to ground).
8 L.DOLBY O Dolby LED control output.
9 L.AVLS O AVLS LED control output.
10 L.BATT O BATT LED control output.
11 L.BLSKIP O BL SKIP LED control output.
12 MUTE CTL O Audio mute control output.
13 PM CTL O Plunger control output.
14 PHOTO CTL O Rotation detect control output.
15 XTB O Crystal oscillator connect terminal (32.768kHz).
16 XT I Crystal oscillator connect terminal (32.768kHz).
17 VDD – Power supply (+1.5V).
18 VSS1 – Power supply (Ground).
19 VCM – Internal power supply STEP-UP terminal.
20 VCP – Internal power supply STEP-UP terminal.
21 VSS2 – Internal power supply STEP-UP terminal.
22 VEE – Internal power supply STEP-UP terminal.
23 SET STOP1 I Power failure detect input.
24 SET STOP2 I Power failure detect input.
25 KEY IN I Key input.
26 HOLDER SW I Holder switch input. “H” : Close
27 BEEP O Beep signal output.
28 AMS IN I Recording sound detection input.
29 RMUM I Remote control data request.
30 DATA I Remote control data input.
31 DOLBY CTL O Dolby control signal output.
32 DDC CTL O DC-DC converter control output.
33 F/R CTL O FWD/REV select signal output. “H” : FWD
34 L.MB O MEGA BASS LED control output.
35 L.GRV O GROOVE LED control output.
36 FWD SW I F/R switch input.
37 REV SW I F/R switch input.
38 PHOTO IN I Rotation detect input.
39 VDD – Power supply (+1.5V).
40 BOOST CTL O MEGA BASS ON/OFF control output.
SECTION 5
DIAGRAMS
5-1. EXPLANATION OF IC TERMINALS
IC701 MSM6576-90GS-K (SYSTEM CONTROL)
Pin No. Pin name I/O Description
41 MB/GRV CTL O MEGA BASS /GROOVE select control output.
42 LOAD CTL O Battery check load control output.
43 AVLS CTL O AVLS ON/OFF control output.
44 AMP CTL O Amplifier ON/OFF control output.
