Sony WM-EX655 User Manual

– 6 –
1 Screw (IB lock)
1 Screws (IB lock)
2 Screws (IB lock)
3
Case assy
1 Screw
2 Screw (IB lock)
5 Remove solde
r
3 Remove solder
4 Remove solder
1 Screw
6 Head flexible board
Audio board
7
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

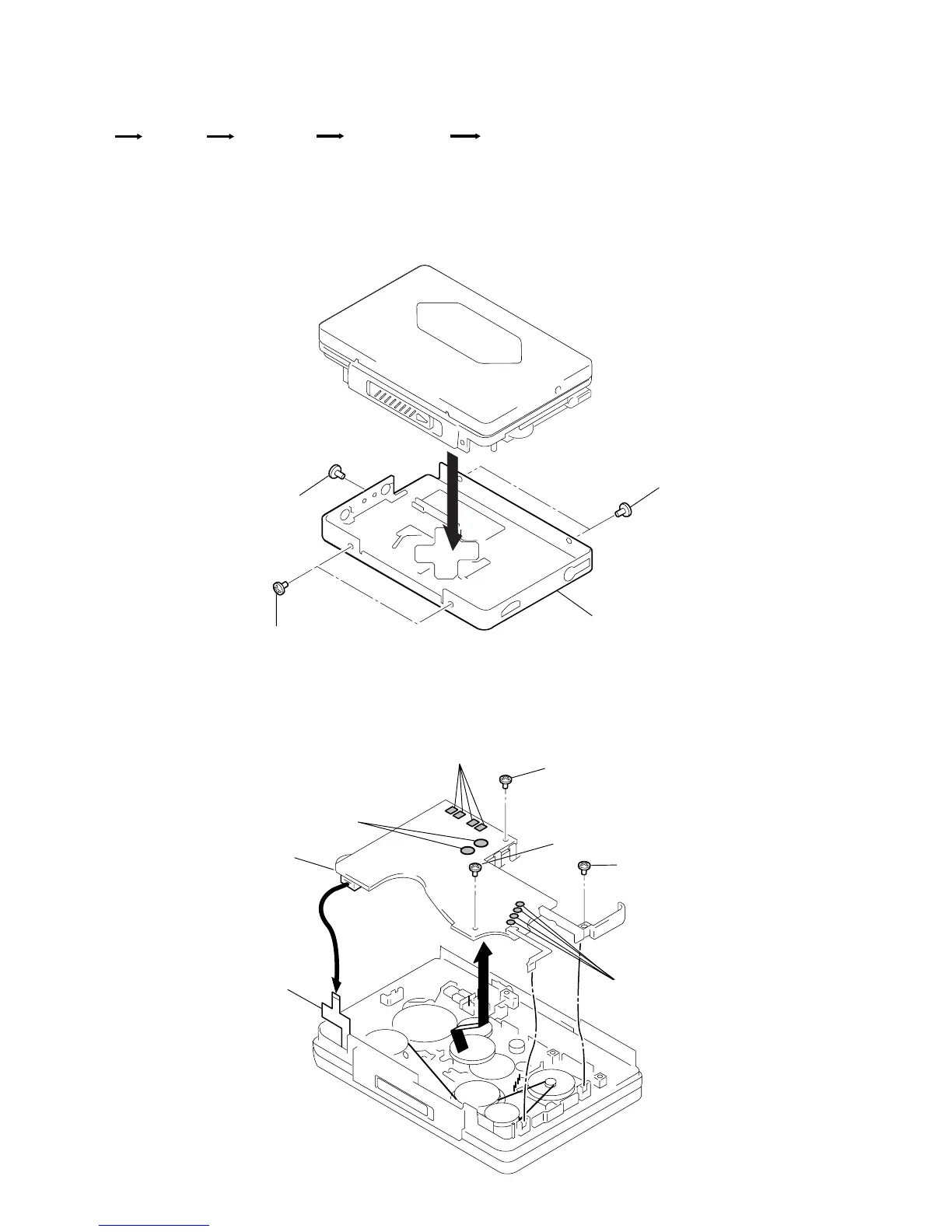

3-1. CASE ASSY REMOVAL
3-2. AUDIO BOARD REMOVAL
r
The equipment can be remo ved using the f ollo wing pr ocedure .
Mechanism deck
Case assy
Cassette lid assy
Audio board
Set
