WM-FX171/FX173/FX177
ā€” 8 ā€” ā€” 9 ā€” ā€” 10 ā€”
Ref. No. Location
D120 G-14
IC1 F-15
IC301 E-18
IC601 E-19
Q2 G-14
Q101 E-16
Q201 E-16
Q301 F-17
Q302 F-15
ā€¢ Semiconductor
Location
1 2
A
B
C
D
E
F
G
H
I
3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

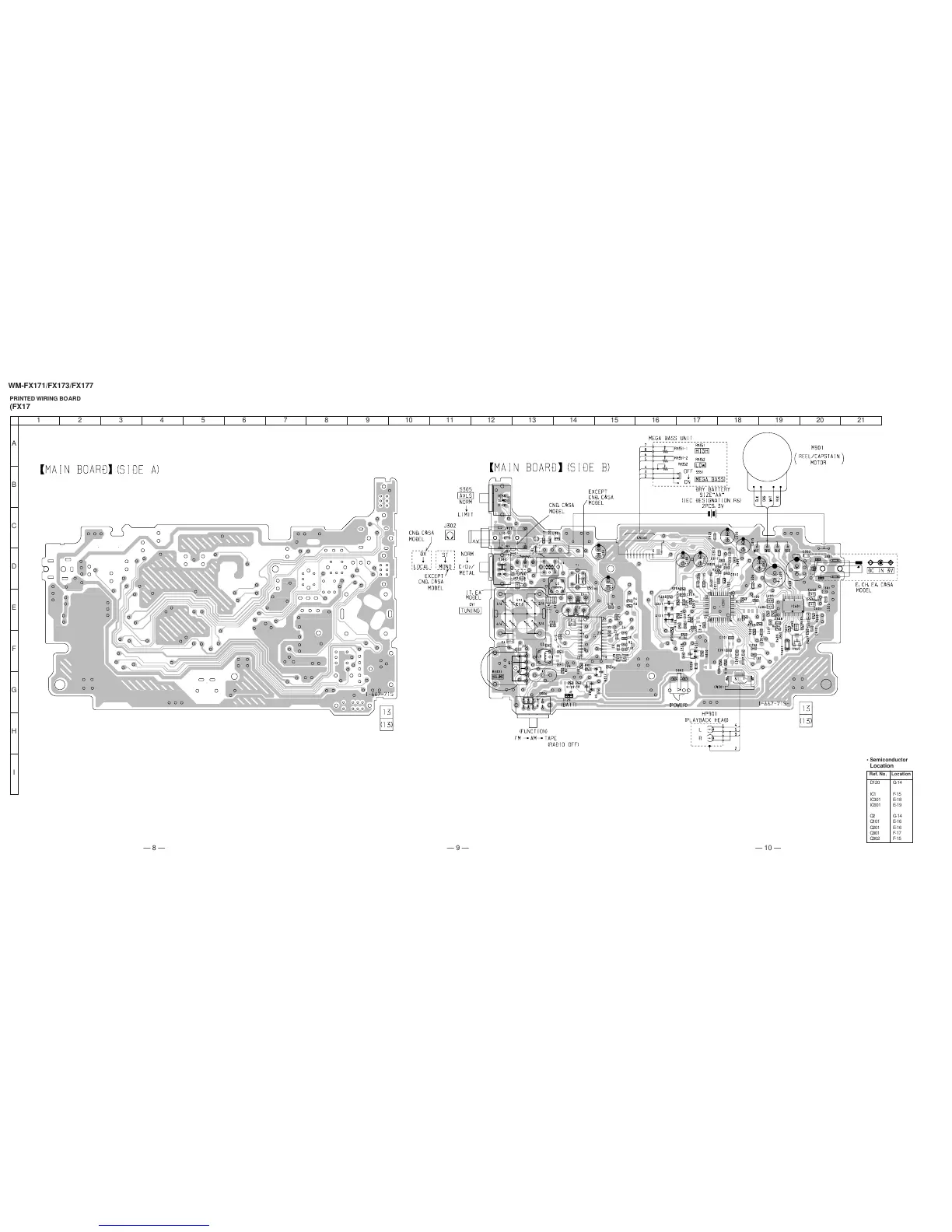

PRINTED WIRING BOARD
(FX173 MODEL)
16
