— 3 —
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
B
C
D
E
F
G
H
I
J
K
L
A
Cassette lid
Cabinet (front) assy
1
Two screws
[screw (B 1.7
×
9), tapping]

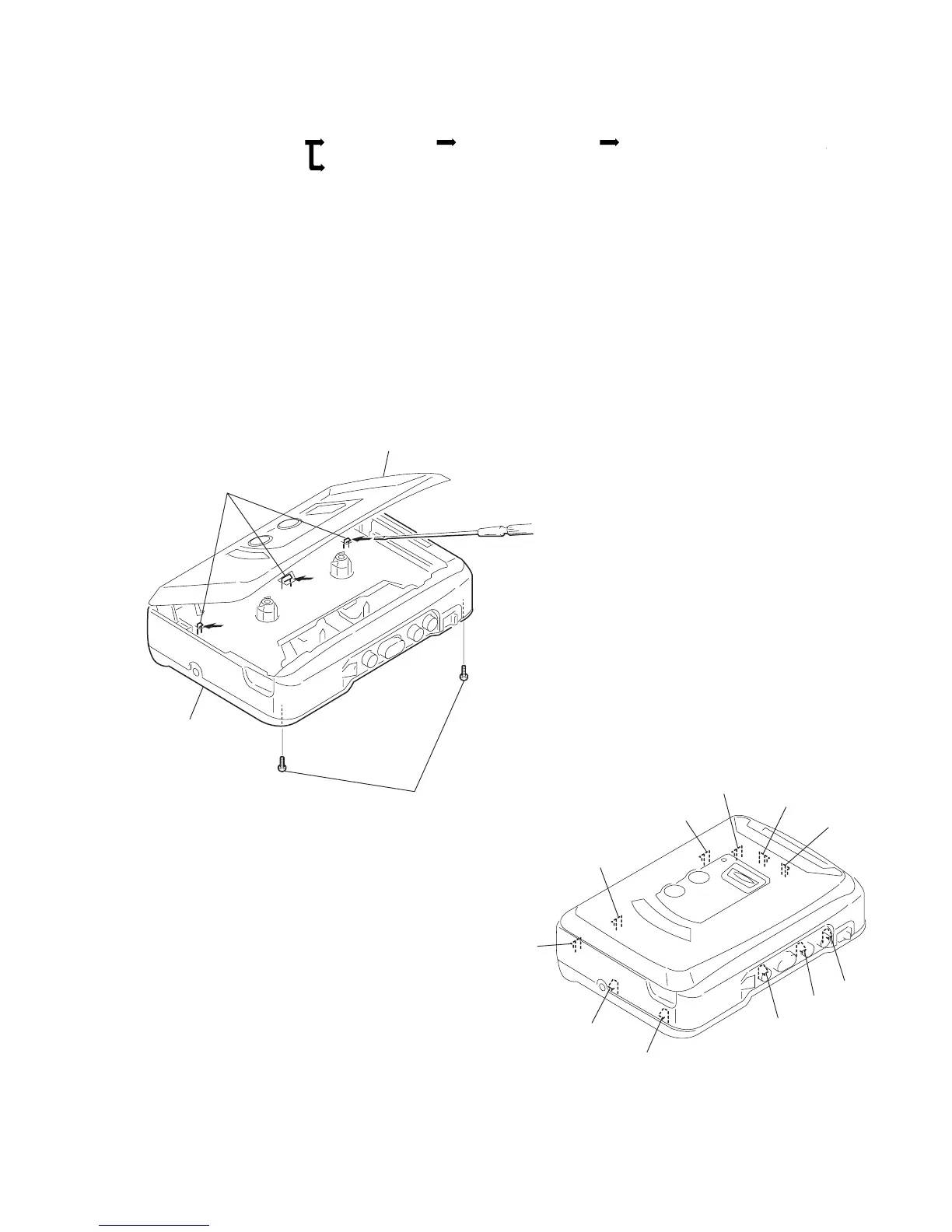

2-1. CABINET (FRONT) ASSY
2
Insert the precision screwdriver
(1.4 mm flat-blade) into the slit
at claw
A
and release the claw.
3
Remove the cabinet (front) assy.
(Release all claws
B
to
L
in
alphabetical order.)
• This set can be disassembled in the order shown below.
2-1. CABINET (FRONT) ASSY 2-2. MAIN BOARD
2-3. CASSETTE LID
2-4. MECHANISM DECK 2-5. BELT,
MOTOR (REEL/CAPSTA
To Next Page
