Sony WM-FX477 User Manual

– 19 – – 20 –
WM-FX477/FX479

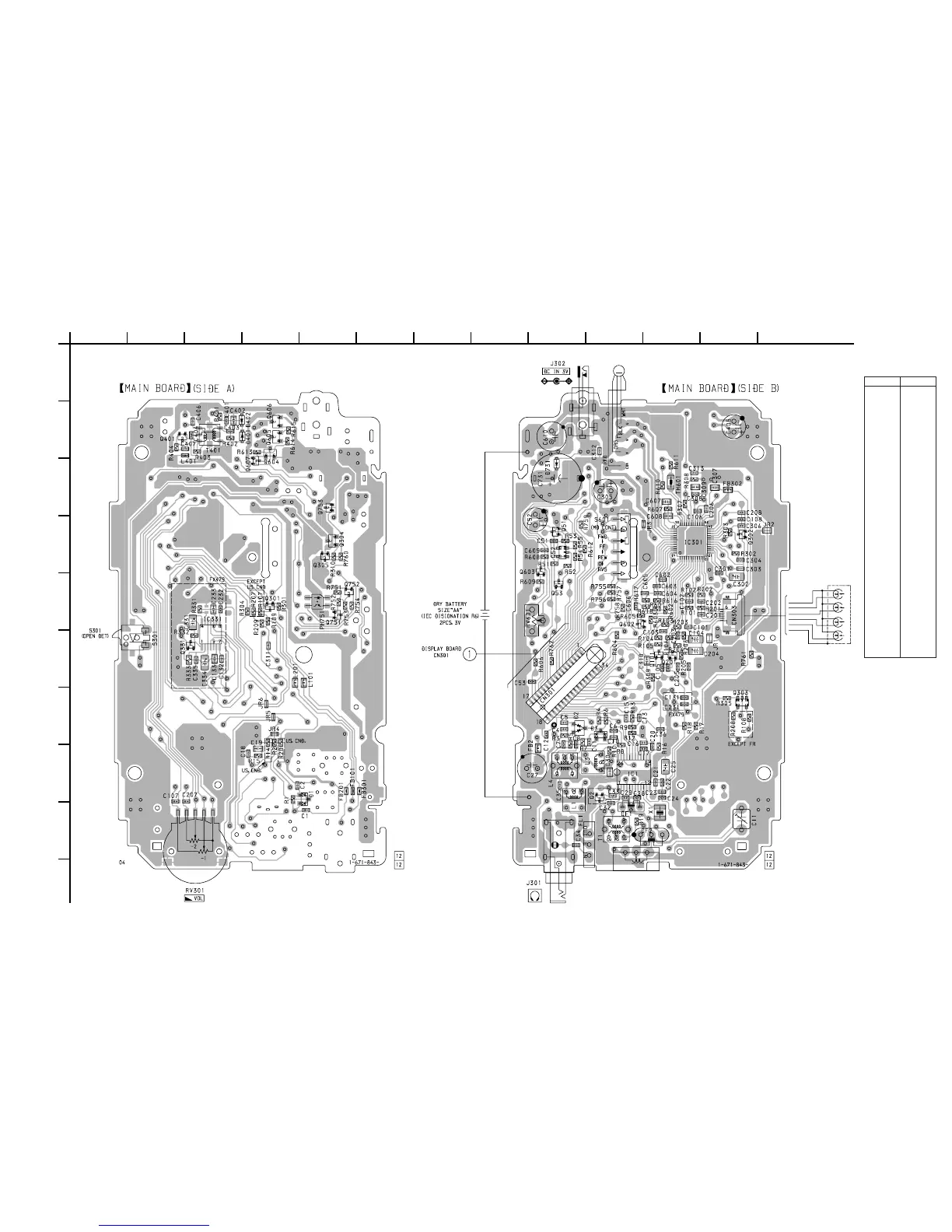

5-4. PRINTED WIRING BOARD — MAIN SECTION —
M
HP901
PB HEAD
FWD
L
6 REF
1 GND
REV(L)
REV(R)
FWD(R)
FWD(L)
R
REV
R
L
1
A
B
C
D
E
F
G
H
I
2345678910111213
M901
CAPSTAN/REEL
MOTOR
(VT)
(FM RF IN)
L2
AM
FERRITE-ROD
ANTENNA
( )( )
C&SA
C&SA
US, CND,
C&SA
Note:
• Y : parts extracted from the conductor side.
•
®
: Through hole.
• b : Pattern from the side which enables seeing.
• Abbreviation
CND : Canadian model.
C&SA : Central and South America model.
FR : French model.
(Page 21)
Ref. No. Location
D1 H-5
D2 G-9
D3 G-10
D401 B-4
D402 B-4
D731 C-9
IC1 H-10
IC301 D-11
<IC331> E-3
PH701 E-5
(Q2) H-10
Q51 D-9
Q52 D-9
Q53 E-9
Q101 F-11
Q201 F-11
Q301 E-4
Q302 D-12
Q303 F-12
Q304 D-5
Q305 D-5
<Q331> F-2
Q401 B-2
Q602 E-10
Q603 D-9
Q604 B-4
Q605 B-4
Q606 B-4
Q607 C-4
Q751 E-5
Q752 E-5
Q753 C-5
• Semiconductor
Location
( ) : US, CND, 5E, 6E
model only
< >: FX479 only

Sony WM-FX477 Specifications

General

Brand	Sony
Model	WM-FX477
Category	Cassette Player
Language	English
