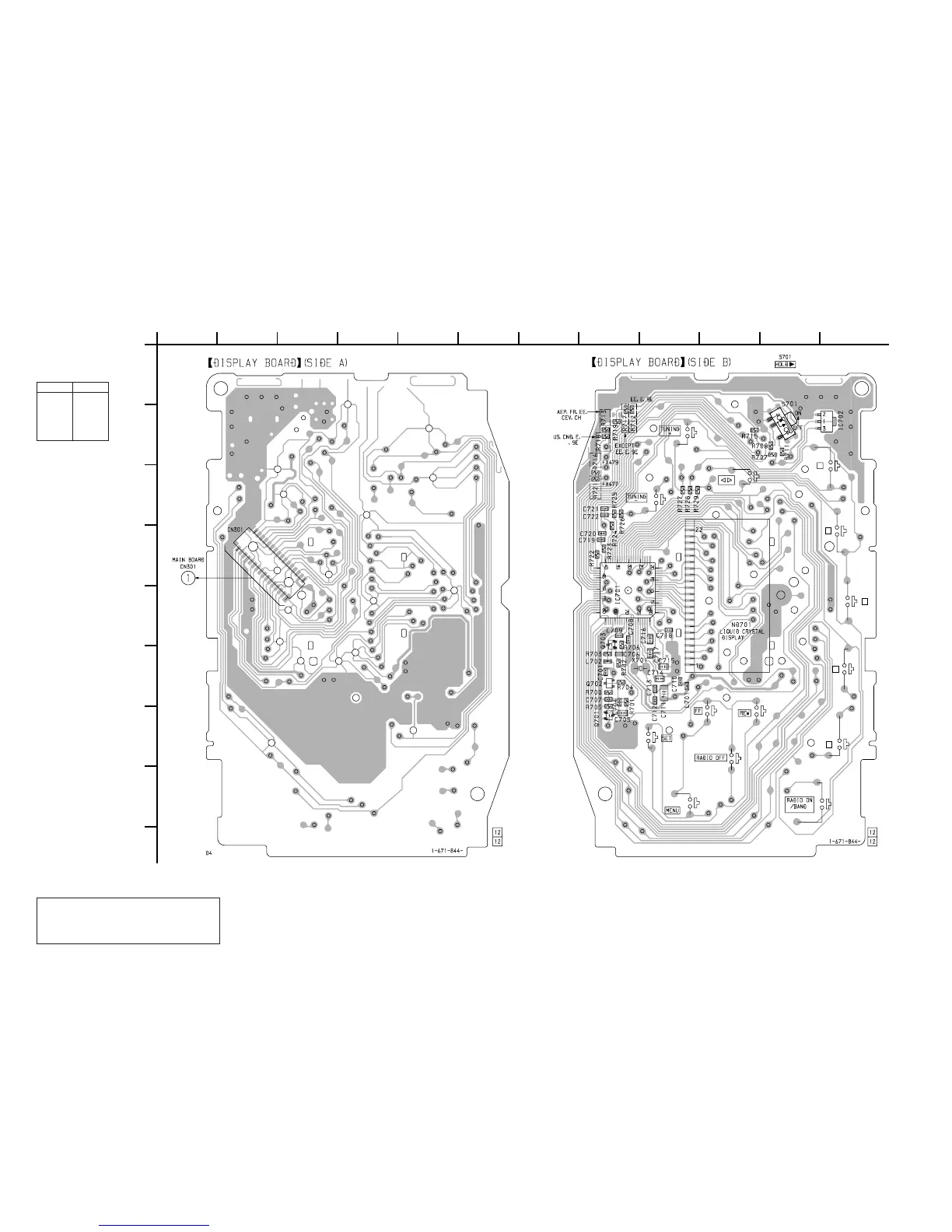

5-5. PRINTED WIRING BOARD — DISPLAY SECTION —
Note:
•
®
: Through hole.
• b : Pattern from the side which enables seeing.
(The other layer’s patterns are not indicated.)
1
A
B
C
D
E
F
G
H
23456789101112
1
3
2
4
5
PANEL
18
17
1
34
( )
( )
S
D
G
C&SA
Ref. No. Location
IC701 E-8
IC702 B-12
Q701 G-8
Q702 F-8
Q703 E-8
• Semiconductor
Location
(Page 19)
Caution:
Pattern face side: Parts on the pattern face side seen from the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
• Abbreviation
CND : Canadian model.
C&SA : Central and South America model.
CH : Chinese model.
FR : French model.
CEV : Poland, Czech, Greece and Turkey model.
EE : East European model.
9E : No indication of country of origin.
E : Indication of country of origin.
