– 23 – – 24 –
WM-FX477/FX479
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• C : panel designation.
• U : B+ Line.
• Power voltage is dc 3 V and fed with regulated dc power
supply from battery terminal.
no mark : FM
( ) : PB
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Abbreviation
CND : Canadian model.
C&SA : Central and South America model.
CH : Chinese model.
FR : French model.
CEV : Poland, Czech, Greece and Turkey model.
EE : East European model.
9E : No indication of country of origin.
E : Indication of country of origin.

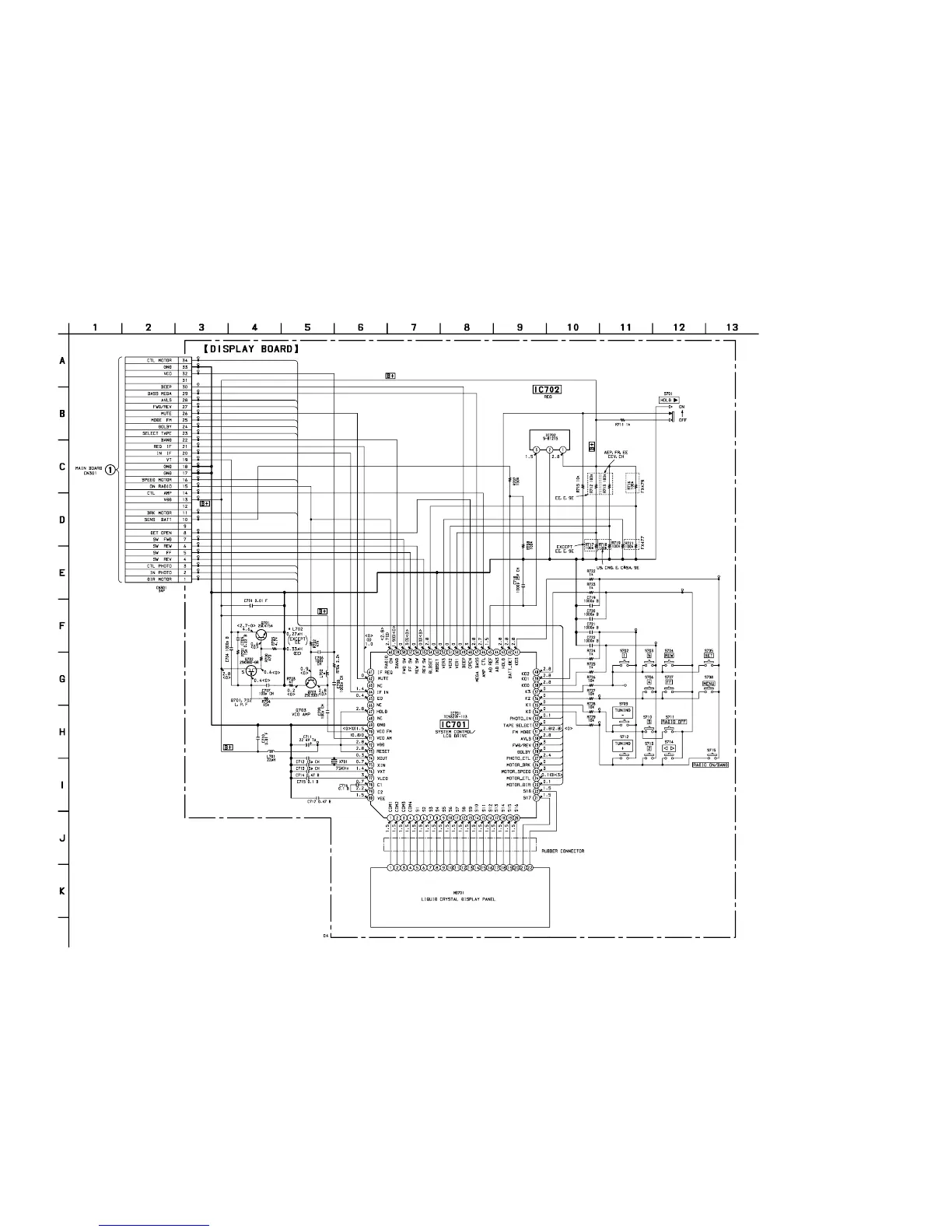

5-6. SCHEMATIC DIAGRAM — DISPLAY SECTION —
(Page 18)
To Next Page
