5 three claws
4 three claws
1 HEAD FLEXIBLE board (CN303)
2 Unsolder the 4 places.
3 screw (M1.4x2.0), locking
6 MAIN board
switch
slider

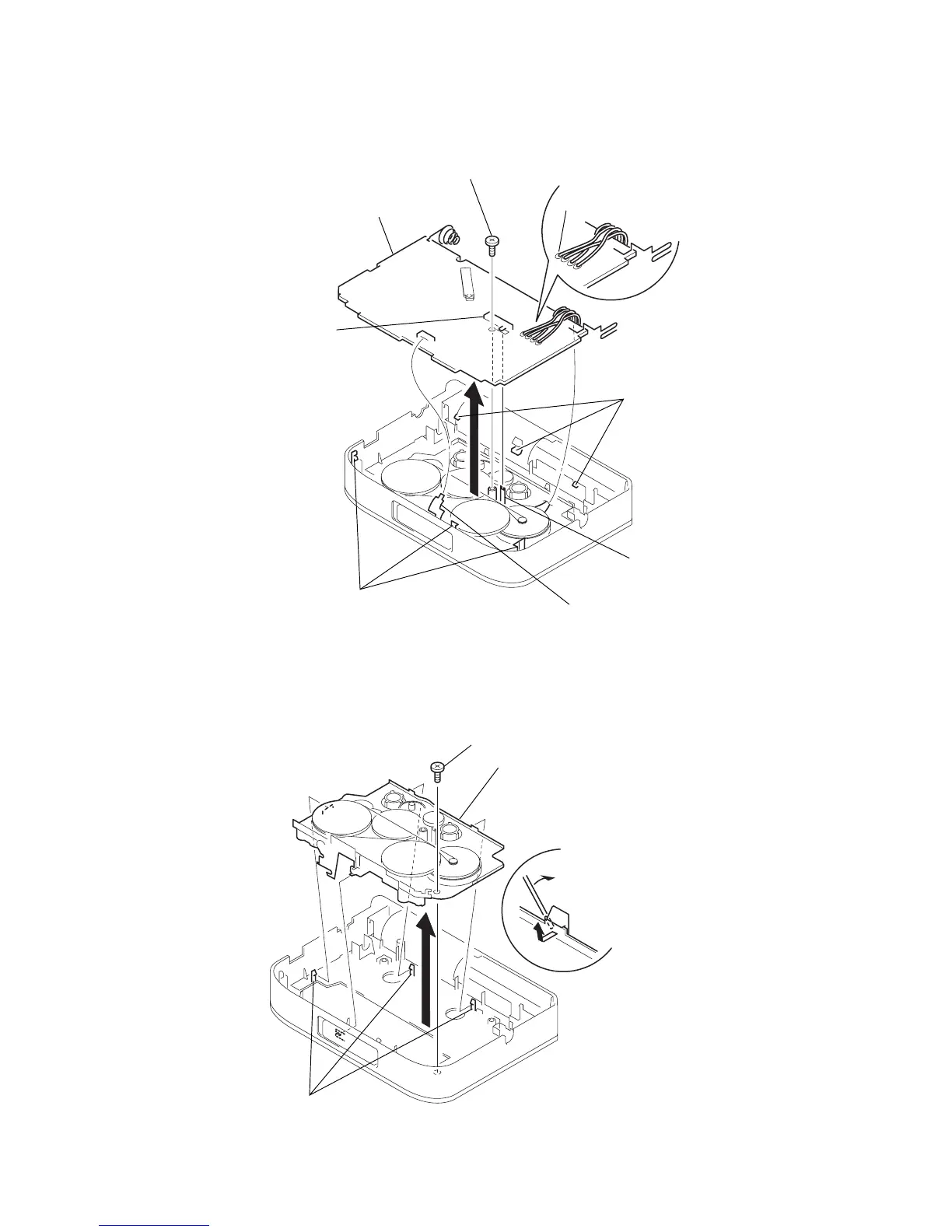

2-5. MECHANISM DECK
2-4. MAIN BOARD
Note : When installing, fit the switch and slider.
2 Insert the precision screwdriver
(1.4 mm flat-blade) into the slit
and release three claws.
4 Remove the mechanism deck
in the direction of the arrow.
1 screw
3 three claws
